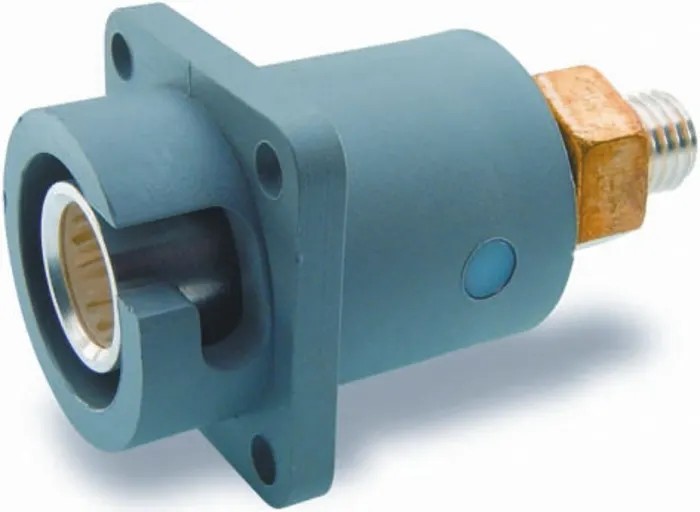

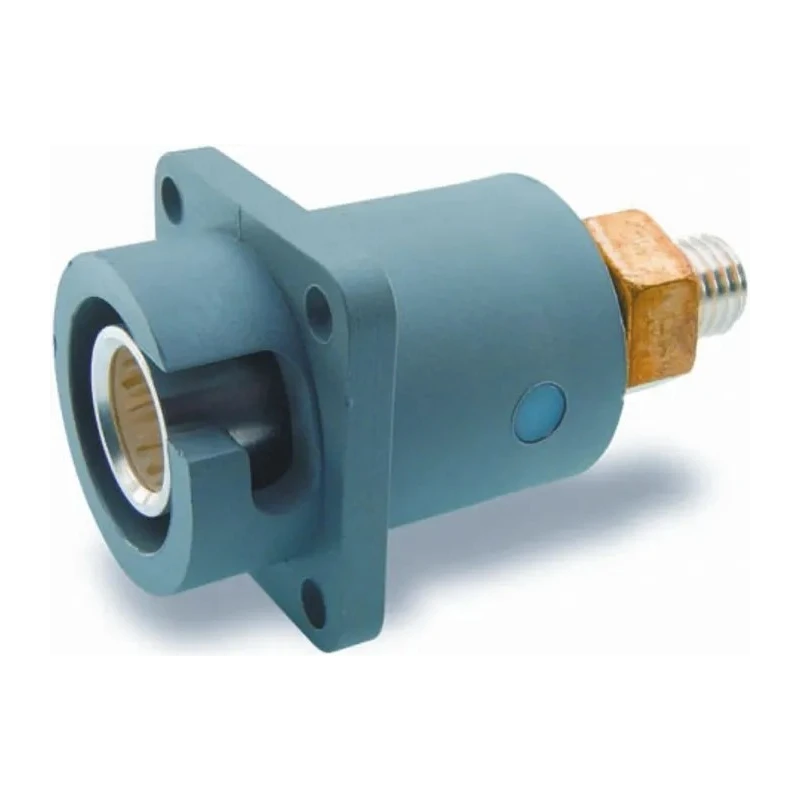

ITT Cannon Veam Snaplock IP67 Grey Panel Mount 1P Straight Female Mains Connector 250A 1kV

ITT Cannon SNPF-S-TP-GY Veam Snaplock is a high-performance industrial power connector designed for robust and reliable electrical connections in industrial and commercial applications. This grey, panel mount connector is single-pole (1P) and offers a straight configuration, ideal for space-conscious installations requiring secure power delivery.

Engineered to withstand demanding environments, it supports a current of 250 amperes and voltage up to 1 kilovolt, making it suitable for power-intensive machinery and systems. The connector incorporates female gender contacts with screw terminations to ensure a solid and secure electrical interface.

Its IP67 rating certifies complete protection against dust ingress and water immersion, enhancing reliability in harsh industrial and outdoor settings. The connector’s insulators are crafted from high-impact UL94-V0 rated material, ensuring flame retardant properties and long-term durability. Color coding of insulators improves safety and simplifies identification during installation and maintenance.

Designed with practical use in mind, the connector features a sprung locking mechanism on the male housing that prevents accidental disconnections while allowing quick and safe release. The compact form factor is approximately 30% smaller than traditional Powerlock connectors, facilitating easier cable management without compromising performance.

Operating temperature ranges from a minimum of -30°C up to a maximum of 125°C, allowing it to function efficiently in a wide variety of industrial temperature conditions. The connector’s design supports over 500 mating cycles, ensuring longevity and consistent performance throughout its service life.

These connectors are ideal for industrial, manufacturing, power distribution, HVAC, and other commercial electrical applications requiring dependable, high-current connections with ease of installation and maintenance.

Explore the wide range of ITT Cannon connectors available on EnvMart to find compatible and complementary industrial power solutions for your projects. Designed for panel mount with a straight orientation for easy installation.

Current rating up to 250 amperes ensuring high power handling capacity. Rated for 1 kilovolt voltage suitable for demanding power applications. Features female connector and contact gender with screw termination type. Constructed with high-impact UL94-V0 material insulators that are color-coded for safety.

Operates reliably between -30°C to 125°C for varied environments. IP67 rated housing providing dust-tight and waterproof protection. Sprung locking mechanism ensures secure connection and quick release. Compact size approximately 30% smaller than comparable Powerlock connectors.

Durable design supports over 500 mating cycles with minimal power loss. Discover more Industrial Power Connectors and components by browsing EnvMart’s Electronics & Electricals categories.
