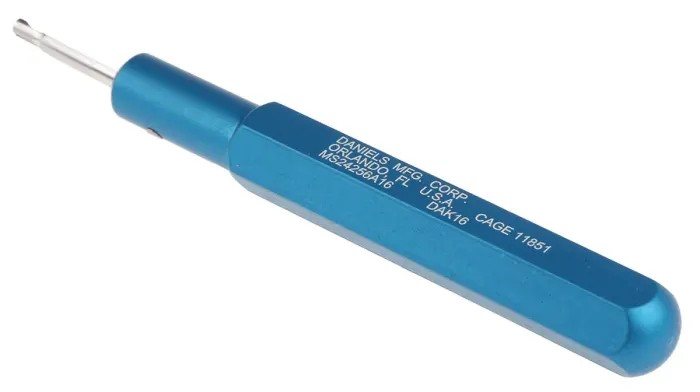

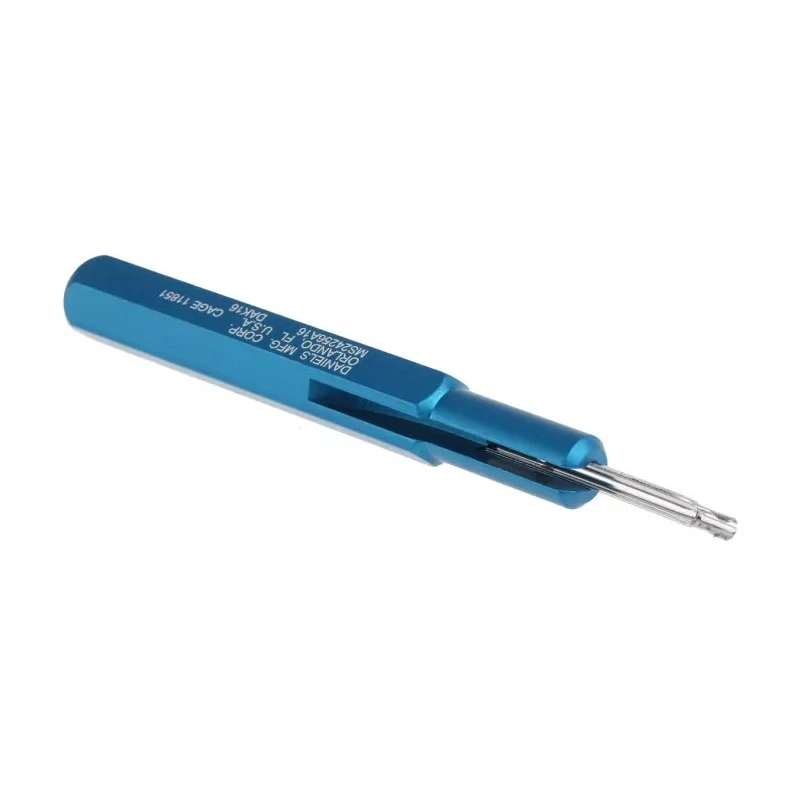

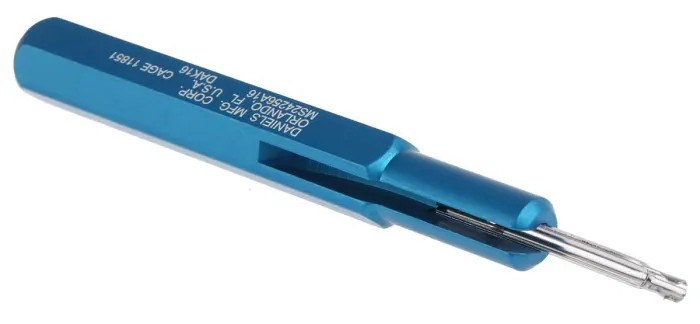

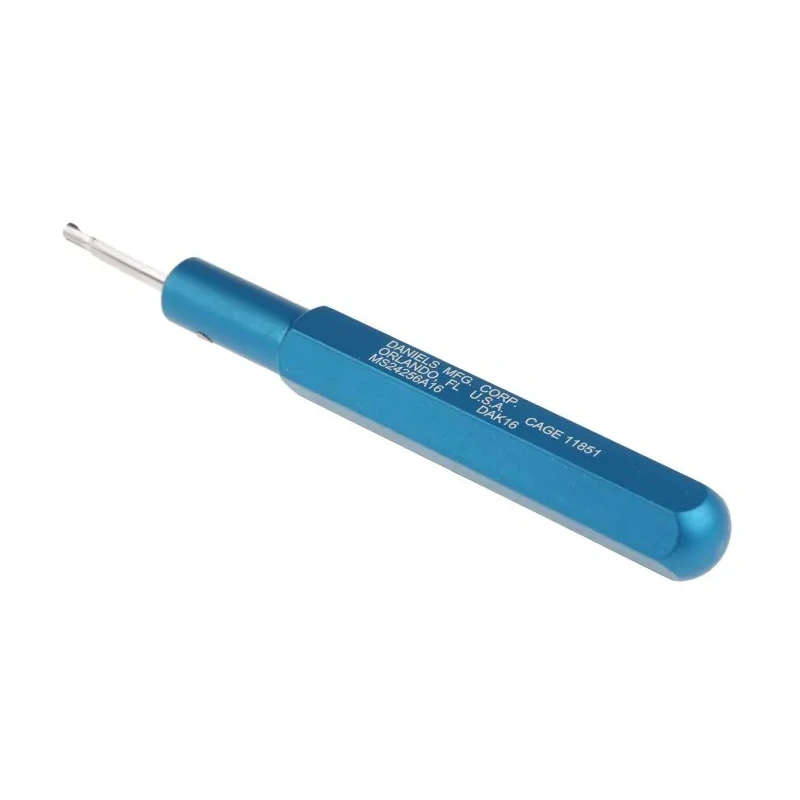

DMC Insertion Tool for MS24256A16 Series Crimp Contact, Contact Size 16 AWG, Overall Length 133.35mm MS24256A16

The DMC MS24256A16 Insertion Tool is engineered for use with crimp contacts specifically sized at 16 AWG. This tool is part of the MS24256A16 series and is expertly designed to provide reliable, efficient insertion of contacts into electrical connectors.

Measuring an overall length of 133.35 mm, the tool offers ergonomic handling to technicians and engineers working in industrial, manufacturing, aerospace, and military applications where high precision and durability are critical.

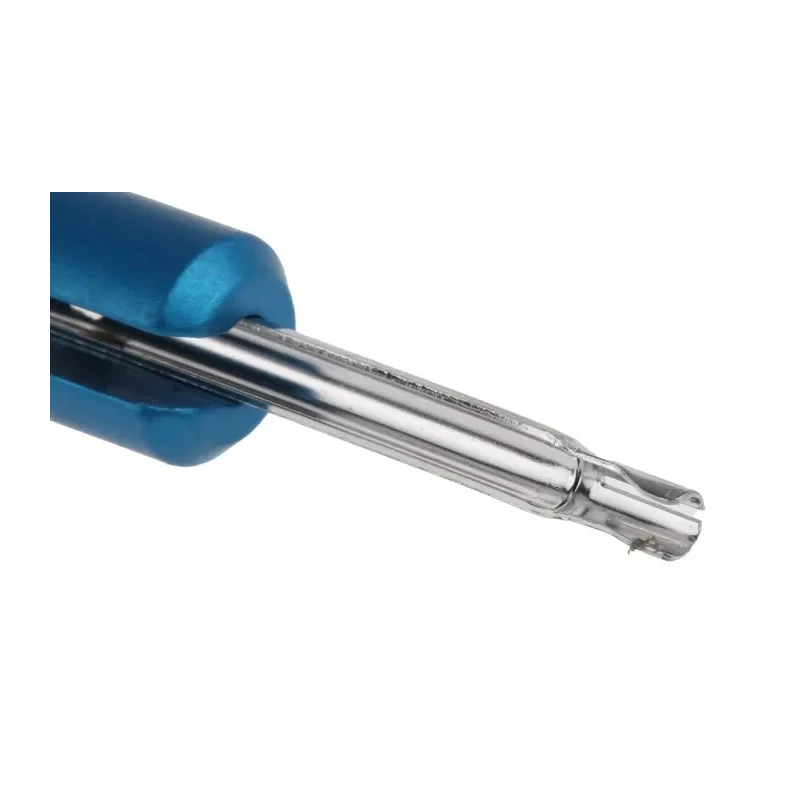

The insertion tip features a width of 3.48 mm and length of 10.67 mm, dimensions optimized to engage contacts securely and prevent damage during insertion. This ensures consistent and reliable electrical connections within a variety of connector types, including but not limited to MIL-C-5015 and MIL-C-26482 standards.

The tool is color-coded blue for the size 16 AWG to improve usability on site, helping professionals quickly select the correct tool for the task, minimizing errors and downtime.

Manufactured in the United States, this insertion tool adheres to high-quality standards, assuring long-lasting performance and operational dependability in demanding environments.

Suitable for use in industrial tools, electrical assembly lines, maintenance workshops, and military-grade connector assemblies, the DMC MS24256A16 enhances productivity and connection integrity.

The tool is specifically suited for the MS24256A16 series crimp contacts. It features an overall length of 133.35 mm for comfortable handling. The tip width is 3.48 mm, ensuring precise contact insertion without damage. The tip length measures 10.67 mm, optimized for reliable engagement.

Constructed to support crimp contact insertion in various connector styles including MIL-C-5015 and MIL-C-26482. Color-coded design: size 16 tools are blue to facilitate quick identification. Manufactured in the United States maintaining high quality standards.
