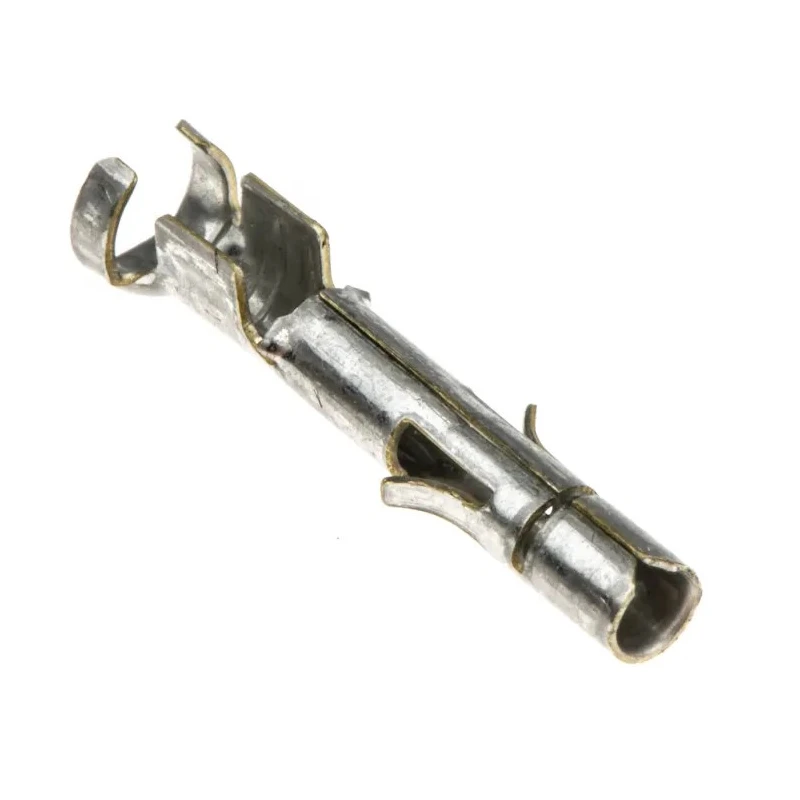

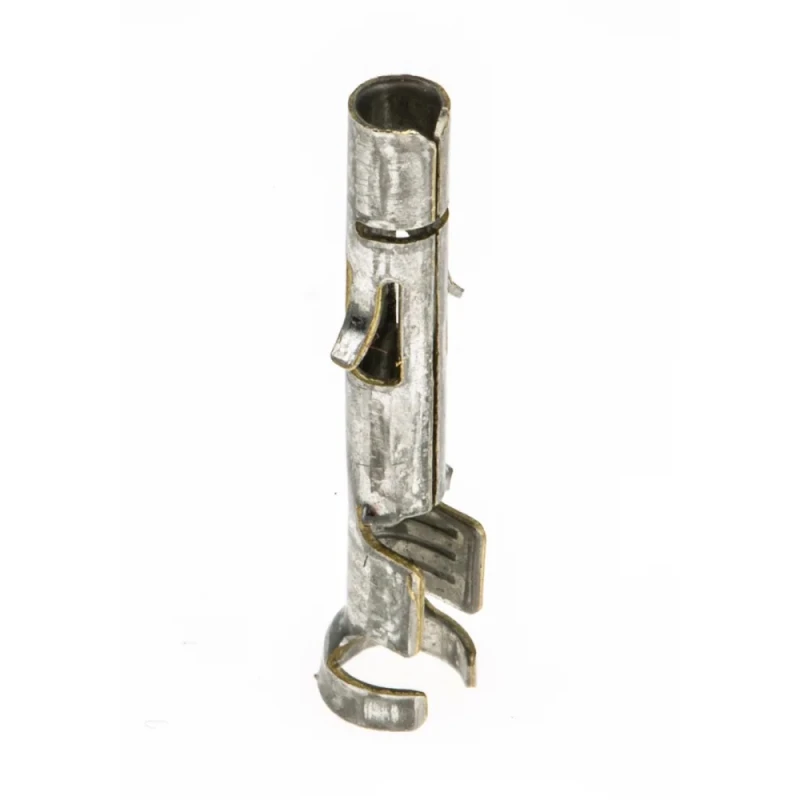

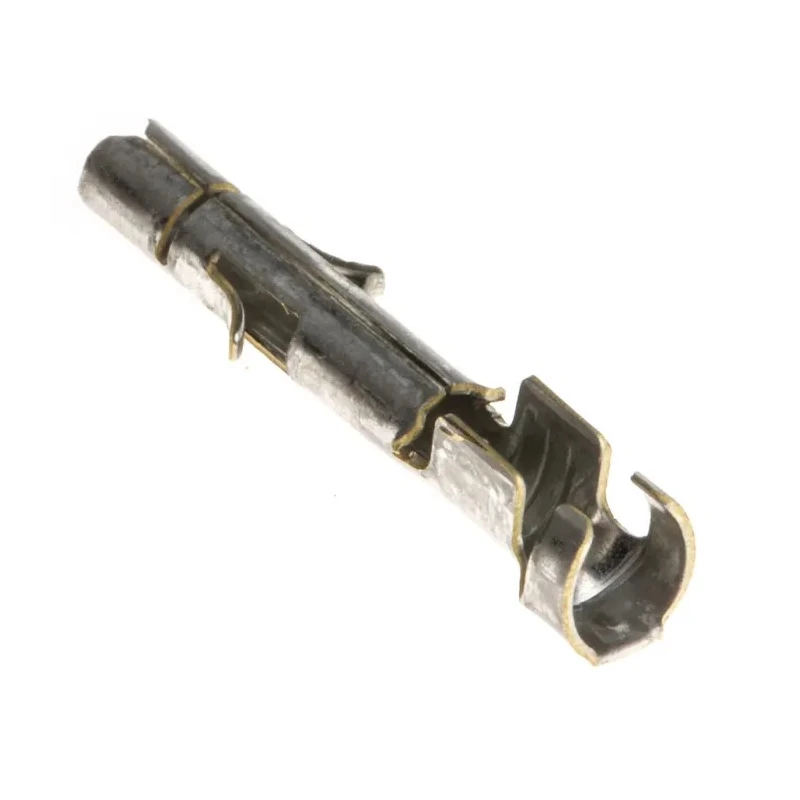

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal, 20 AWG Min, 14 AWG Max, Brass Tin Plated Contacts 926893-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Length | 20.1mm |
| Model | 926893-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Contact Orientation | Straight |
| Connector & Contact Terminates To | Wire & Cable |
Key Features
- Constructed from brass with tin plating to ensure excellent conductivity and corrosion resistance.
- Suitable for crimp termination with a straight contact orientation for ease of assembly.
- Rated for current capacity of 19A ensuring performance in demanding electrical circuits.
- Compatible with Universal MATE-N-LOK Connector Housing for versatile connectivity solutions.
- Operating temperature range from -55°C to 105°C supports usage in diverse industrial environments.
- No approvals or certifications are specified, meeting general industry standards.
- Designed for applications in consumer electronics, HVAC, commercial equipment and power supplies.
- Connector and contact terminate to wire and cable providing secure and durable connection.
Product Description
TE Connectivity 926893-1 Universal MATE-N-LOK Series Female Crimp Terminal is engineered for reliable electrical connections in various industrial and commercial applications. Designed for use with wire sizes ranging from 20 AWG (0.5mm²) minimum to 14 AWG (2mm²) maximum, this terminal supports a current rating of 19A, suitably matching demanding power requirements.
Manufactured from high-quality brass and finished with tin plating, the crimp terminal ensures excellent electrical conductivity combined with durable corrosion resistance, essential for maintaining circuit integrity in harsh environments.
The contact features a straight orientation facilitating straightforward assembly within PCB connector housings, contributing to efficient installation and maintenance operations. The terminal's length of 20.1 mm complements standard connector systems.
Operating temperature parameters from -55°C to 105°C enable this component to perform reliably across a range of environmental conditions typical to industrial, HVAC, commercial, and consumer electronics sectors.
This female crimp terminal is part of TE Connectivity's Universal MATE-N-LOK range, providing cost-effective and dependable wire termination for multiple lead connections found in computers, business machinery, entertainment centers, and power supply equipment.
Constructed from brass with tin plating for electrical reliability. Compatible with Universal MATE-N-LOK connector housings ensuring flexible system design. Supports wire sizes 20 AWG to 14 AWG for versatility in wiring applications.
Features straight contact orientation for ease of assembly. Rated for 19A current capacity for various electrical loads. Suitable for use in consumer electronics, HVAC, commercial, and power supply industries. Termination by crimp method ensures solid mechanical and electrical connection.
Able to operate efficiently between -55°C and 105°C environment temperatures. Length of 20.1 mm ensures compatibility with other connector components.
The TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal is ideal for industrial, manufacturing, laboratory, HVAC, and commercial uses where reliable wire termination and connector performance are critical. This product provides a standardized solution for PCB connections within power and signal systems. Explore the full range of TE Connectivity products at EnvMart for comprehensive electronics component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports wire sizes ranging from 20 AWG (0.5 mm²) minimum to 14 AWG (2 mm²) maximum.
The terminal is constructed from brass and features tin plating, which ensures excellent conductivity and corrosion resistance.
It uses a crimp termination method, providing a solid mechanical and electrical connection to wires and cables.
Yes, it is suitable for applications in consumer electronics, HVAC, commercial equipment, and power supplies.
The contact features a straight orientation, facilitating straightforward assembly within PCB connector housings.
No approvals or certifications are specified, but it meets general industry standards.
This model is a female crimp terminal, designed for specific connection applications.
It is ideal for use in industrial, manufacturing, laboratory, HVAC, and commercial applications where reliable wire termination is critical.
