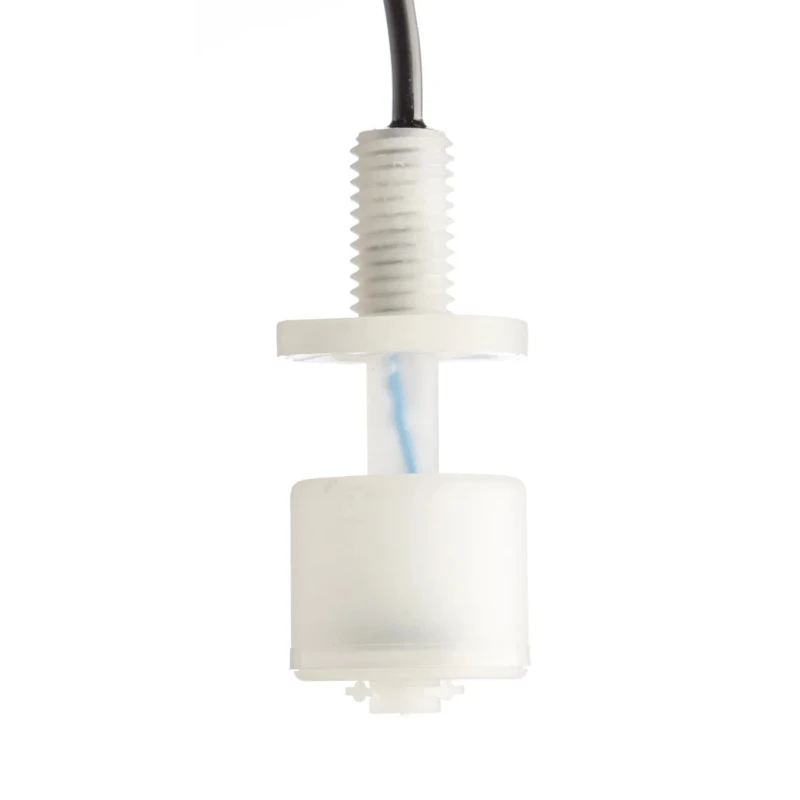

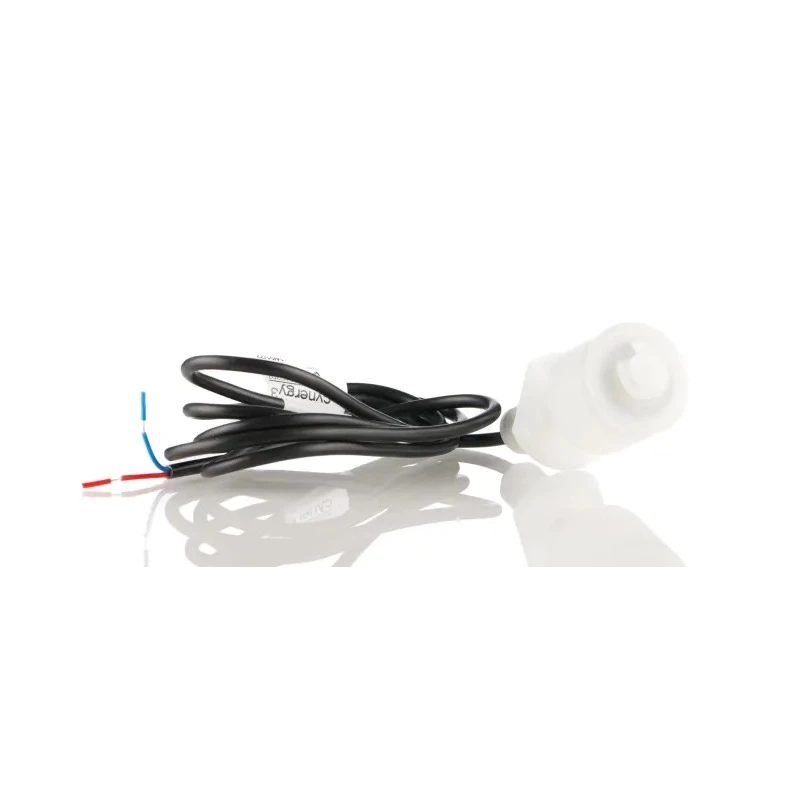

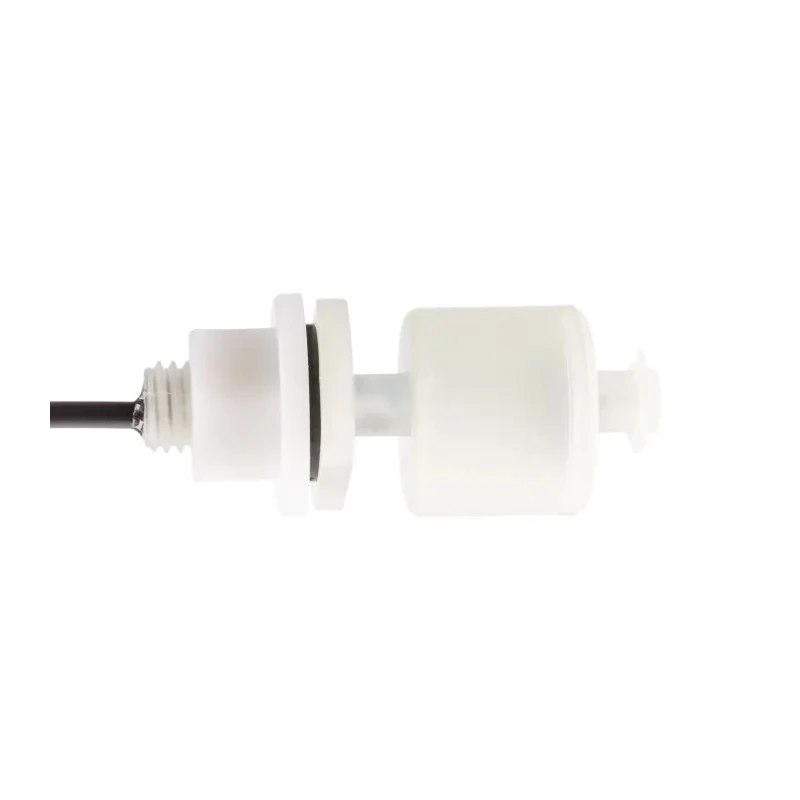

Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch, 1 m Cable, NO/NC, 240 V AC Max, 120 V DC Max RSF54Y100JC

Cynergy3 RSF54Y100JC is a high-quality vertical float switch designed to monitor and control liquid levels in diverse industrial and commercial applications. The float switch features a robust polypropylene housing combined with a nitrile rubber (NBR) gasket that offers superior chemical resistance, suitable for fluids such as acids, alkalis, detergents, oils, and water. Its 1-meter cable length enables flexible mounting inside tanks where side access may be limited.

The switch operates using a magnetic reed mechanism wherein the float containing a magnet moves vertically along the stem responding to liquid levels. When the float approaches the reed switch inside the housing, it activates the switch contacts, which can be configured as normally open (NO) or normally closed (NC) depending on the application requirements. This design provides reliable and maintenance-free operation in harsh environments.

The float switch is rated for a maximum AC voltage of 240 V and DC voltage of 120 V, with a maximum current of 600 mA, making it suitable for integration with control circuits in automation and fluid management systems. It supports a wide operating temperature range from -20°C to +100°C, ensuring stable performance under varying environmental conditions.

Typical industrial uses include liquid level monitoring in vending machines, printers, and chemical dosing equipment where precise level sensing is critical. The vertical mounting style allows installation from the top or bottom of tanks, with mounting thread options of M12 or 1/8" NPT.

Constructed with durable polypropylene housing for enhanced chemical resistance and mechanical strength. Nitrile rubber gasket delivers excellent sealing and compatibility with various aggressive fluids. Wide temperature operating range suitable for demanding industrial environments.

1-meter cable length facilitates easy installation in confined spaces. Configurable NO/NC switch output for flexible control system integration. Maximum current of 600 mA supports low power circuitry safely. Vertical mounting compatible with multiple tank configurations.

Magnetically actuated reed switch ensures longevity and reduces mechanical wear. Ideal for water treatment, manufacturing, laboratory, and HVAC applications.

Set the standard in liquid level sensing with the Cynergy3 RSF54Y100JC float switch, a reliable choice for industrial automation requiring chemical resistance, precision, and compact form factor. Explore EnvMart for more Cynergy3 automation components and Float Switch solutions.
