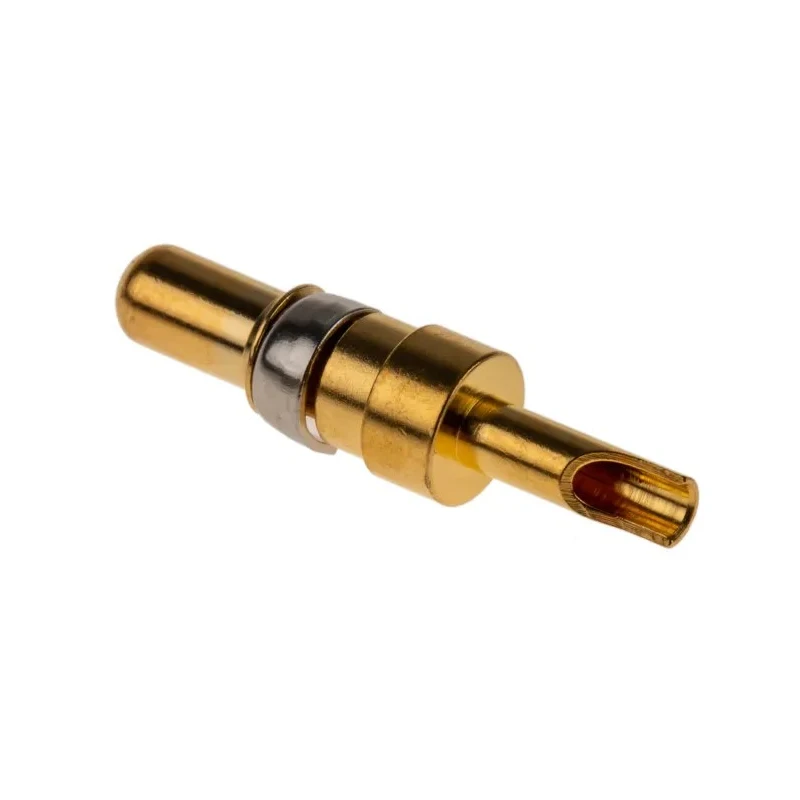

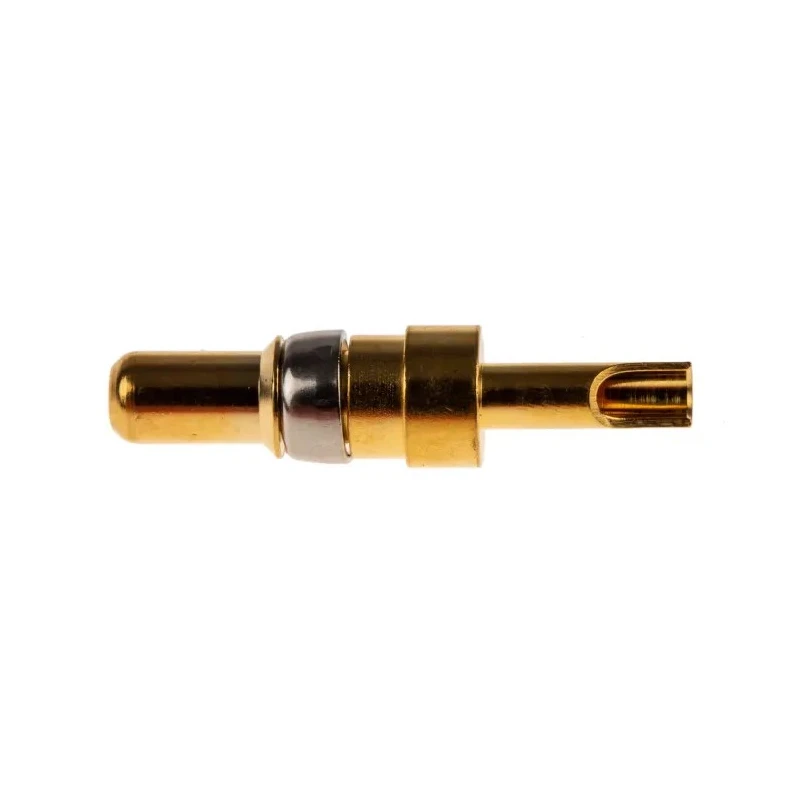

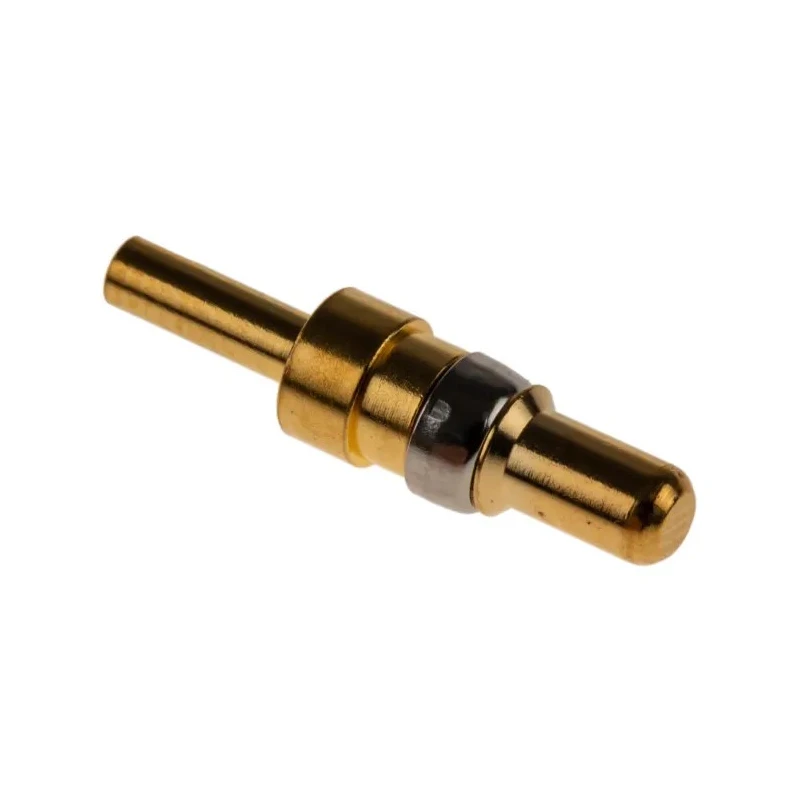

FCT from Molex 172704 Series Male Solder D-Sub Connector Power Contact Gold over Nickel Power 16 AWG FMP005P103 / 1727040146

Free Delivery in India | Lowest Global Shipping Charges

FCT from Molex 172704 Series Male Solder D-Sub Connector Power Contact Gold over Nickel Power 16 AWG FMP005P103 / 1727040146

Name: FCT from Molex 172704 Series Male Solder D-Sub Connector Power Contact Gold over Nickel Power 16 AWG FMP005P103 / 1727040146
Brand: FCT from Molex
SKU: 137325
Price: 6.51 USD
Availability: InStock



Category D-Sub Connector Power Contact Brand FCT from Molex Condition New

Specifications

Country of Origin	Germany
Brand	FCT from Molex
Current	10A
Length	22.4mm
Model	FMP005P103 / 1727040146
Gender	Male
Contact Material	Copper Alloy
Series	172704
Termination Type	Solder
Contact Type	Power
Contact Plating	Gold over Nickel
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	16AWG
Maximum Contact Resistance	1mΩ
PCB holes for coax plug and socket	4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia

Key Features

This power contact supports wire sizes from 20 AWG to 16 AWG for flexible connectivity.
The solder termination ensures a secure and vibration-resistant electrical connection.
Copper alloy material with gold over nickel plating provides excellent conductivity and corrosion resistance.
Operates effectively within a wide temperature range of -55°C to +155°C.
Rated for a current of 10 Amperes for combined power and data signal transmission.
The compact 22.4 mm length contact weighs only 1.9 grams, minimizing PCB stress.
Compatible with mixed layout D-sub shells for versatile industrial applications.
Ideal for use in automated control panels, mobile devices, pneumatic and coaxial cable systems.

Product Description

FCT from Molex FMP005P103 / 1727040146 Male Solder D-Sub Connector Power Contact is designed for secure power and signal connections in electronic and computer systems.

The connector uses a solder termination method, ensuring a durable connection resistant to vibration and movement. It accommodates wire sizes ranging from 20 AWG to 16 AWG, offering flexibility in wiring configurations.

Made from copper alloy, the contact is plated with gold over nickel to enhance conductivity and prevent corrosion, crucial for reliable performance in demanding environments. It supports a current rating of 10 Amperes, allowing it to transmit combined power and data signals safely.

The contact length is 22.4 mm, and its lightweight design at approximately 1.9 grams reduces mechanical stress on PCBs.

This component is compatible with 172704 Series mixed layout D-sub shells, frequently used for applications requiring combined power, coaxial, and signal contacts. It is well suited for industrial, mobile, automated control panel, pneumatic system, and coaxial cable uses.

This power contact supports wire sizes from 20 AWG to 16 AWG for flexible connectivity. The solder termination ensures a secure and vibration-resistant electrical connection. Copper alloy material with gold over nickel plating provides excellent conductivity and corrosion resistance.

Operates effectively within a wide temperature range of -55°C to +155°C. Rated for a current of 10 Amperes for combined power and data signal transmission. The compact 22.4 mm length contact weighs only 1.9 grams, minimizing PCB stress.

Compatible with mixed layout D-sub shells for versatile industrial applications. Ideal for use in automated control panels, mobile devices, pneumatic and coaxial cable systems. Manufactured in Germany, adhering to high-quality standards for industrial connectors.

This D-Sub Connector Power Contact is a vital component in industrial, manufacturing, and electronic assembly operations, offering a durable and reliable connection. Explore more power contacts and connectors to suit varied industrial and electronic needs on EnvMart.
