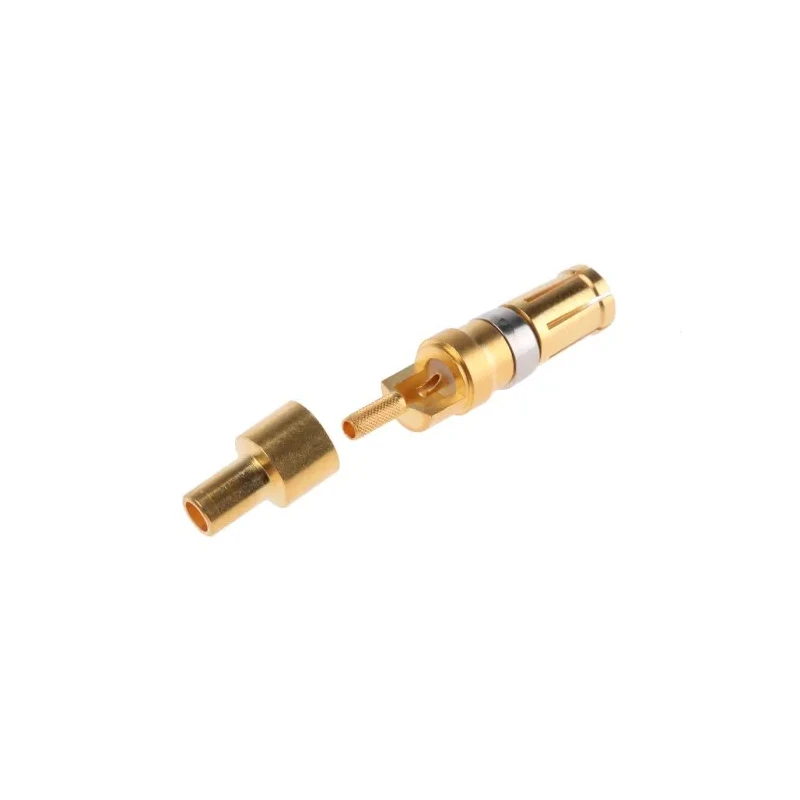

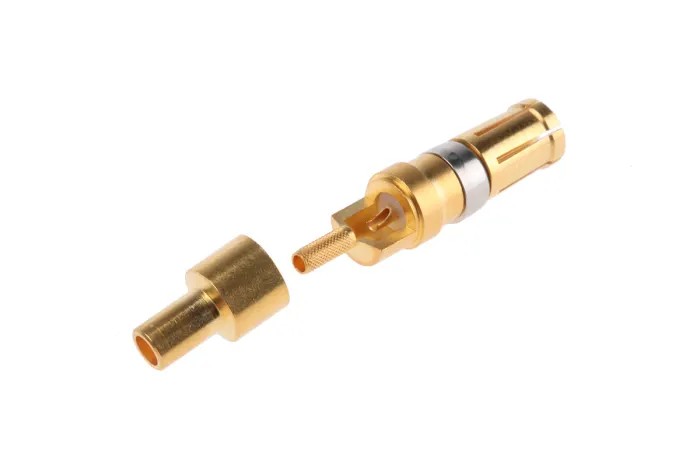

RS PRO Female Solder D-Sub Connector Coaxial Contact Gold over Nickel 311-5717

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Female Solder D-Sub Connector Coaxial Contact Gold over Nickel 311-5717

Name: RS PRO Female Solder D-Sub Connector Coaxial Contact Gold over Nickel 311-5717
Brand: RS PRO
SKU: 137323
Price: 21.25 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Current	2A
Length	23mm
Model	311-5717
Gender	Female
Contact Material	Copper Alloy
Series	RS PRO
Termination Type	Solder
Contact Plating	Gold over Nickel
Maximum Contact Resistance	2.7mΩ
PCB holes for coax plug and socket	4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia
RS PRO Female Solder D-sub Connector Contact, Gold over Nickel CoaxialBrand	RS PRO

Key Features

Constructed with copper alloy contact material ensuring durability.
Rated for a current capacity of 2A suitable for moderate power applications.
Features gold over nickel contact plating for enhanced conductivity and protection.
Maximum contact resistance maintained at 2.7 milliohms to ensure efficient signal transfer.
Connector length of 23 mm compatible with mixed layout connector shells.
Termination type is solder, providing a secure connection.
Designed for use in mixed power, coaxial and high voltage D-sub connector layouts.
PCB mounting holes for coax plug and socket include 4 holes of 1.3 mm diameter on 5.08 mm centers along with a center hole for reliability.

Product Description

RS PRO 311-5717 is a Female Solder D-Sub Connector Coaxial Contact designed for mixed layout D-sub connector shells, featuring gold over nickel plating and copper alloy contact material. Operating at a current rating of 2 ampere, this connector provides reliable power and signal transmission, especially suited for industrial, military, commercial, and computer interfacing environments.

This coaxial contact measures 23 mm in length and has a solder termination type for robust connection integrity. The gold over nickel plating enhances conductivity and protects against corrosion, while the low maximum contact resistance of 2.7 milliohms ensures minimal signal loss during operation.

The connector incorporates PCB holes specifically designed for coax plug and socket mounting, with four holes of 1.3 mm diameter spaced on 5.08 mm centers plus a central hole to accommodate coaxial cables such as RG178B/U and RG174A/U. This design facilitates versatile use in mixed contact layouts incorporating power, coaxial, and high voltage contacts.

Ideal for applications requiring combined signal and power connections, the RS PRO 311-5717 connector is engineered to meet demanding technical environments. It supports efficient assembly and maintenance with snap-fit contact removal using specialized tools, enhancing serviceability.

Constructed from copper alloy for durable contact performance. Gold over nickel plating provides corrosion resistance and conductivity. Solder termination ensures secure electrical connection. 23 mm connector length suits mixed D-sub shells.

Max contact resistance of 2.7 milliohms enables low loss performance. PCB mounting holes dimensioned for coax plug and socket stability. Supports RG178B/U and RG174A/U coaxial cables. Applicable across military, industrial, commercial, and computer interfacing.

Facilitates mixed contact layouts with signal and power contacts.

This RS PRO coaxial contact is a vital component in advanced D-Sub Connector assemblies, engineered to maintain reliability and signal integrity under challenging conditions. It is the preferred choice where high-performance connectivity with power and signal requirements is paramount.
