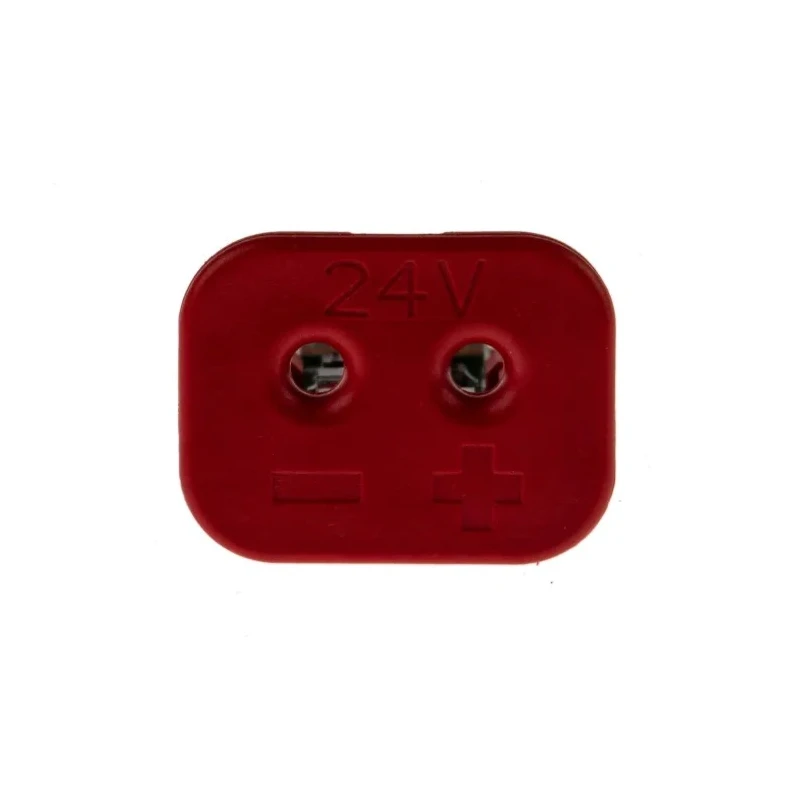

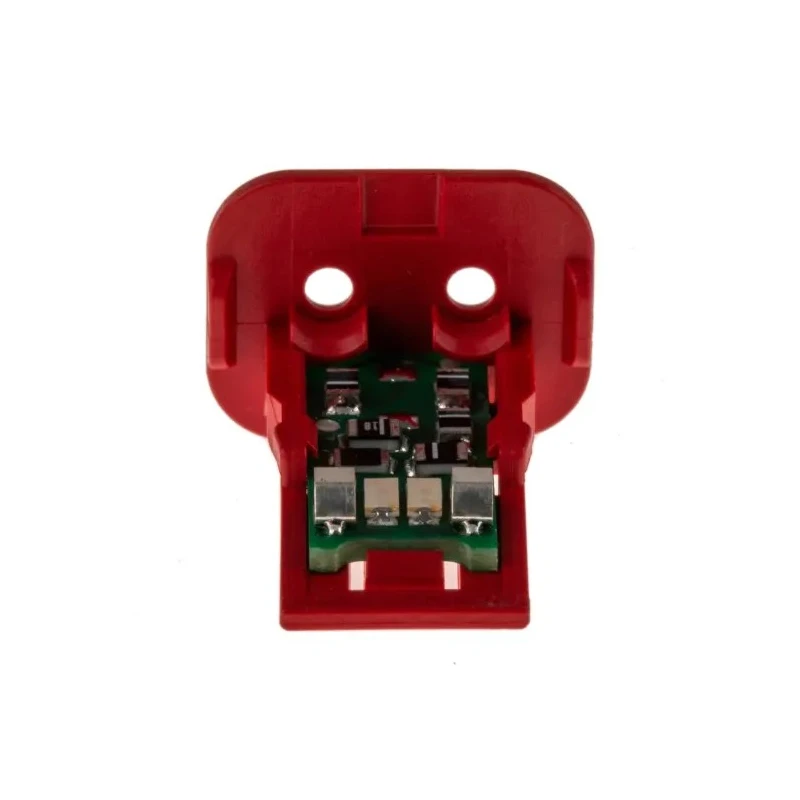

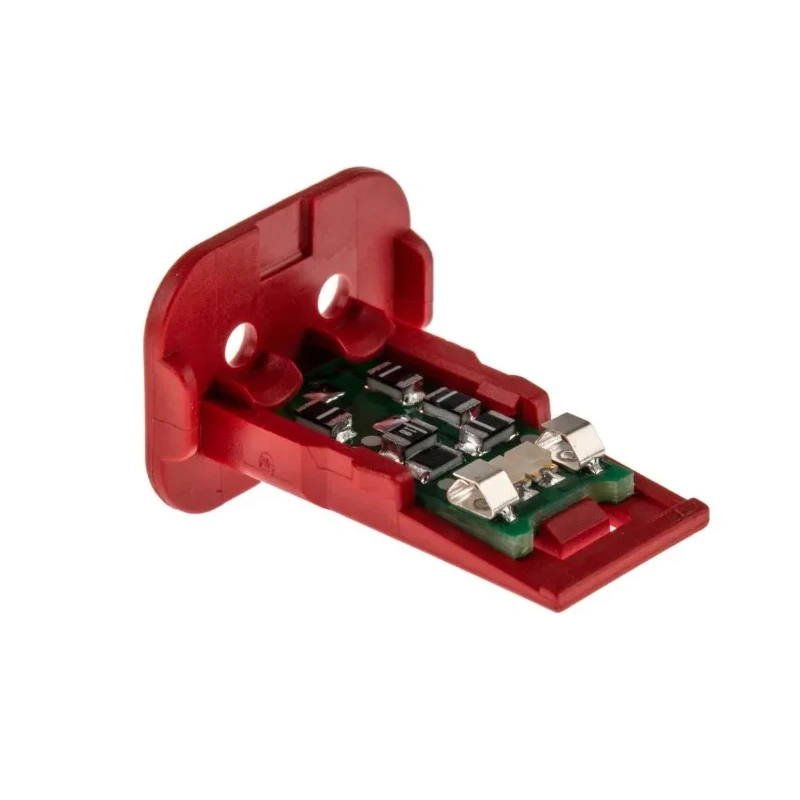

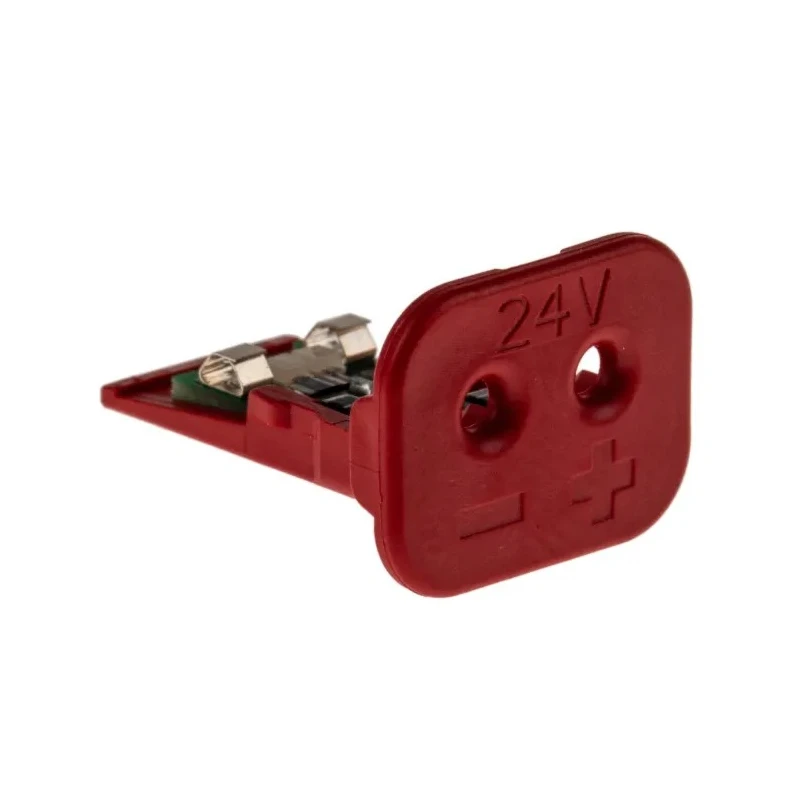

Deutsch DT Polybutylene Terephthalate Male 2 Way Wedge Lock for Automotive Connectors W2S-SDT-24V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Deutsch |
| Material | Polybutylene Terephthalate |
| Colour | Red |
| Orientation | Straight |
| Model | W2S-SDT-24V |
| Gender | Male |
| Series | DT |
| Accessory Type | Wedge Lock |
| For Use With | Automotive Connectors |
| Dimensions (WxLxH) | 15 x 31.6 x 15.8 mm |
| Number of Contacts | 2 |
| Centerline (Pitch) | 4.5mm |
Key Features
- Constructed from durable Polybutylene Terephthalate (PBT) material ensuring strength and longevity.
- Features a 2 position, 1 row wire-to-wire connector system with a 4.5 mm centerline pitch.
- Compact dimensions of 15 x 31.6 x 15.8 mm (WxLxH) suit tight assembly spaces.
- IP67 rating guarantees dust-tight protection and water resistance up to 1 meter immersion.
- UL 94V-0 flammability rating enhances safety under thermal stress.
- Includes a red 2W LED for visual status indication, operating at 24V.
- Designed to withstand an operating temperature range from -55°C to +125°C.
- Ensures secure terminal position assurance (TPA) compatibility with DT series connectors.
Product Description
Deutsch W2S-SDT-24V Male 2 Way Wedge Lock is an automotive connector accessory engineered for reliable contact retention within wire-to-wire connector systems. Manufactured from robust Polybutylene Terephthalate (PBT), this device delivers excellent mechanical stability and chemical resistance suitable for harsh automotive environments.
The wedge lock supports a 2-position, single-row configuration, featuring a fine 4.5 mm centerline pitch enabling compact yet effective wiring assemblies. Its overall dimensions are 15 mm in width, 31.6 mm in length, and 15.8 mm in height, making it ideal for constrained installation spaces.
Rated IP67, the product is fully dust tight and capable of prolonged immersion in water up to 1 meter, making it resilient against dust, sand, and powerful water jets, fulfilling stringent environmental protection requirements. Additionally, it holds a UL 94V-0 flame retardancy classification, enhancing operational safety in thermal stress conditions.
Included is a red LED element rated at 2 watts and optimized for 24 volts, providing clear visual indication and aiding in system diagnostics. The accessory functions reliably within a broad temperature range of -55°C to +125°C, ensuring steadfast operation under extreme automotive conditions.
This wedge lock accessory is compatible with Deutsch's DT series connectors, offering Terminal Position Assurance (TPA) for secure contact seating, minimizing the risk of connector disengagement or failure due to vibration or thermal cycling. It is an essential component for enhancing connector reliability in automotive electrical systems.
Constructed from Polybutylene Terephthalate (PBT) for durability and resistance. 2 position, 1 row configuration with 4.5 mm pitch for precise wiring. Compact form factor measuring 15 x 31.6 x 15.8 mm. IP67 rated for dust and water ingress protection.
UL 94V-0 flame retardant material ensures safety. Equipped with a red 2W LED operating at 24V for status indication. Operates reliably across a temperature range of -55°C to +125°C. Specifically designed for use in automotive connector systems requiring robust lock solutions.
This Deutsch accessory is ideal for automotive, industrial, and manufacturing applications requiring secure and durable electrical connections. For more automotive electrical connector accessories, explore the Deutsch range on EnvMart.
Explore more products in our Automotive Connector Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is constructed from Polybutylene Terephthalate (PBT), which provides strength and longevity.
The dimensions are 15 mm in width, 31.6 mm in length, and 15.8 mm in height.
It has an IP67 rating, ensuring it is dust-tight and can withstand immersion in water up to 1 meter.
This wedge lock operates reliably within a temperature range of -55°C to +125°C.
It supports 2 contacts in a single-row configuration.
The centerline pitch is 4.5 mm, allowing for precise wiring assemblies.
It includes a red 2W LED optimized for operation at 24 volts, providing visual status indication.
Yes, it is designed for compatibility with Deutsch's DT series connectors, ensuring secure terminal position assurance (TPA).
The material has a UL 94V-0 flammability rating, enhancing safety under thermal stress conditions.
It is suitable for automotive, industrial, and manufacturing applications requiring secure and durable electrical connections.
The orientation of this wedge lock is straight, making it suitable for various installation scenarios.
The country of origin for this wedge lock is India.
