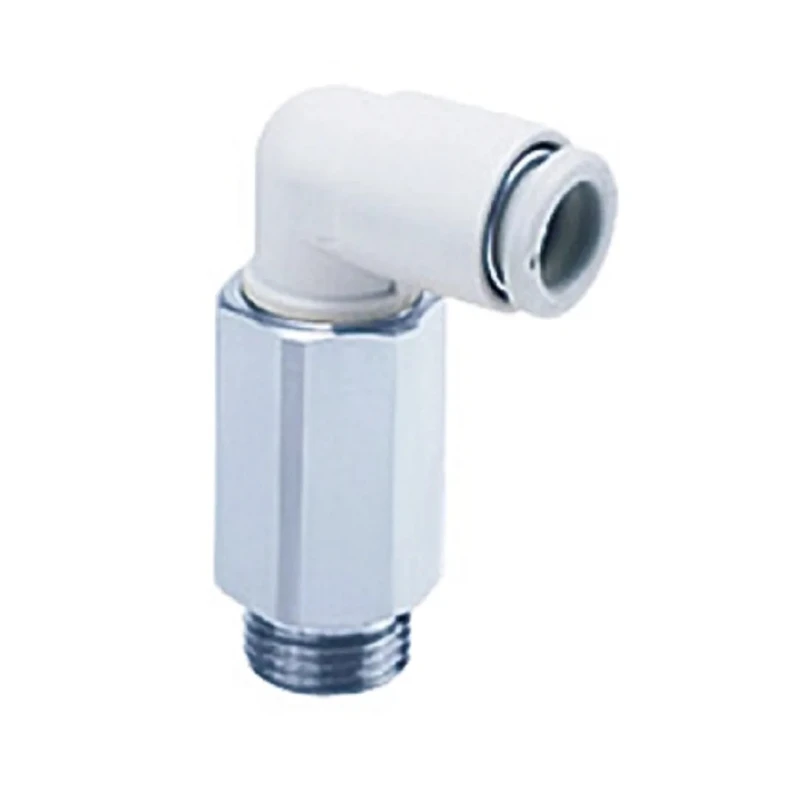

SMC Brass Pneumatic Male Elbow Fitting, Threaded-to-Tube, G 1/8 in Thread, 4mm Push-in Tube, 90° Angle, 60°C, 1 KQ2L04-G01A



Category Pneumatic Fitting Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Material	Brass
Maximum Operating Pressure	1 MPa, 3 (Proof) MPa
Model	KQ2L04-G01A
Connection Type	Threaded-to-Tube
Series	KQ2
Maximum Operating Temperature	60°C
Angle	90°
Standards/Approvals	RoHS
Connection Size A	G 1/8 Male
Connection Thread Standard	G
Connection Thread Size	G 1/8 in
Connection Gender	Male
Connection Size B	Push In 4 mm
Tube Connection Type	Push-in
Tube Connection Size	4mm

Key Features

Constructed from brass for durability and corrosion resistance.
Features a 90° angle elbow design for right-angle piping applications.
Supports maximum operating pressure of 1 MPa with 3 MPa proof pressure.
Operates under temperatures up to 60°C with RoHS compliance.
Compact and lightweight for use in confined pneumatic spaces.
Designed for low force insertion and removal, improving ease of installation.
Tube connection uses push-in type, simplifying tube assembly.
Manufactured in France ensuring quality and precision engineering.

Product Description

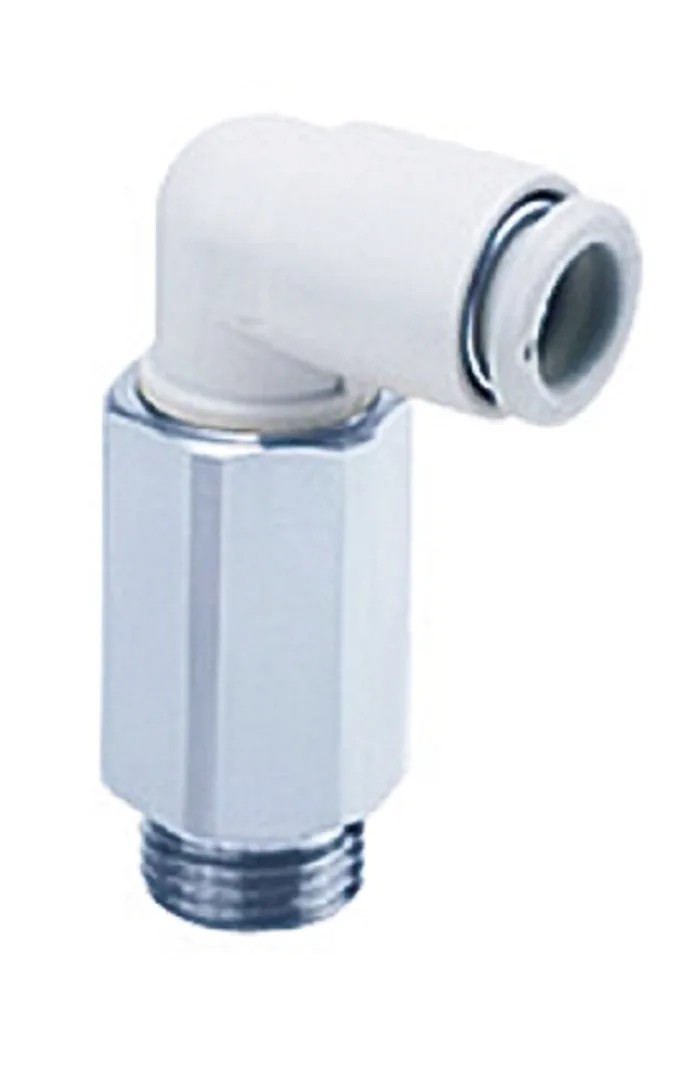

SMC KQ2L04-G01A is a brass pneumatic male elbow fitting from the KQ2 series, engineered to connect a G 1/8 in male threaded port to a 4mm push-in tubing. This fitting features a compact 90° angled design allowing installation in limited space with easy tube insertion and removal requiring low force.

This pneumatic fitting supports a wide pressure range from low vacuum up to 1 MPa operating pressure and withstands up to 3 MPa proof pressure, suitable for various industrial applications such as manufacturing, fluid power, automation, and compressed air systems.

It is made of durable brass material, offering corrosion resistance and mechanical strength. The fitting complies with RoHS standards and is chemically resistant to some extent, though it is not chemical resistant for aggressive media.

The maximum operating temperature is 60°C, making it suitable for many pneumatic system environments. The threaded connection follows the G standard thread size, providing secure and leak-free engagement.

The push-in tube connection at 4mm size allows quick and reliable attachment to compatible polyurethane or nylon tubing commonly used in pneumatic circuits. Its lightweight and compact form factor reduces system bulk and weight.

Manufactured in France, this SMC fitting ensures consistent quality and precision manufacturing tolerances, making it ideal for applications requiring reliability and accuracy. Constructed from brass material for durability and corrosion resistance.

Designed for G 1/8 in male threaded to 4mm push-in tube connections. Compact 90° male elbow design for tight spaces. Supports maximum operating pressure of 1 MPa and proof pressure of 3 MPa. Operates at temperatures up to 60°C with RoHS compliance.

Low force required for insertion and removal, enhancing ease of use. Suitable for pneumatic systems in industrial, manufacturing, and automation sectors. Manufactured in France to high-quality standards. Discover more Pneumatic Fittings and accessories at EnvMart, the trusted source for industrial pneumatic and hydraulic components.
