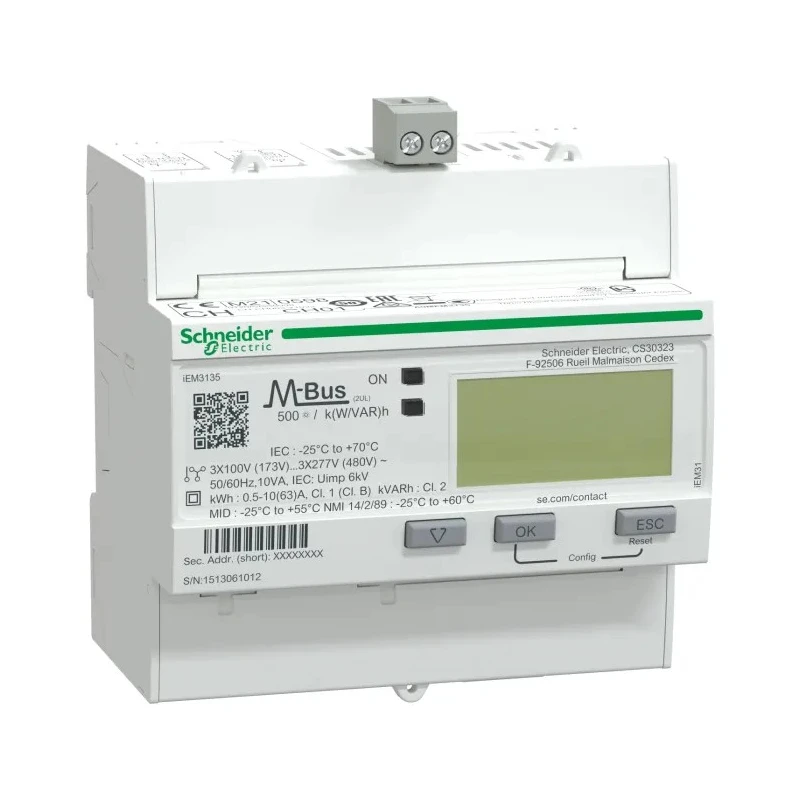

Schneider Electric 3 Phase Electronic LCD Energy Meter Acti 9 iEM3000 Series A9MEM3135

Schneider Electric A9MEM3135 is a three-phase electronic LCD energy meter from the Acti 9 iEM3000 series, designed for accurate and comprehensive metering of electrical energy consumption in industrial and commercial environments. It offers a high readability 9-digit LCD display, enabling users to monitor energy usage clearly and efficiently.

The device is equipped with pulse output and single input/output channels to facilitate advanced integration with energy management systems. The meter operates within a wide temperature range from -25°C to 55°C, ensuring reliable performance in diverse environmental conditions.

Its compact 69mm depth form factor makes installation straightforward on standard DIN rails, suitable for modular electrical enclosures. The meter adheres to strict international standards such as CE, cULus, EN 50470-3, IEC 60529, IEC 61010, IEC 61036, IEC 61557-12, IEC 62053-21, IEC 62053-23, and UL 61010-1, including MID conformity for accurate energy billing.

The Acti 9 iEM3000 series meters measure both active and reactive energy in all four quadrants, allowing detailed energy flow analysis including consumption and generation. Real-time measurements of voltage, current, power, and power factor provide a holistic view of electrical parameters.

It comes with an internal clock that preserves date and time of the last reset plus a 48-hour backup in case of power loss, enabling precise tariff-based energy billing. Multi-tariff measurement options allow configuration by digital inputs or the internal clock, supporting flexible billing structures.

Typical applications include bill checking to verify energy charged, sub-billing tenants or departments, and aggregation to allocate energy costs by area, usage, or time period within facilities.

Clear LCD with 9 digits ensures easy reading of energy data. Designed for three-phase electrical systems with pulse output included. Wide temperature operating range from -25°C to 55°C. Compact size designed for DIN rail mounting.

Compliance with CE, cULus, MID, IEC, UL, and other key standards. Measures both active and reactive energy across four quadrants. Internal clock with backup maintains data through power outages. Supports multi-tariff energy measurement for flexible billing.

Schneider Electric’s Acti 9 iEM3000 series combines cost-effective metering with advanced features for industrial, commercial, HVAC, water treatment, manufacturing, and building automation applications. EnvMart offers this reliable and standards-compliant Energy Meter for precise energy management needs.
