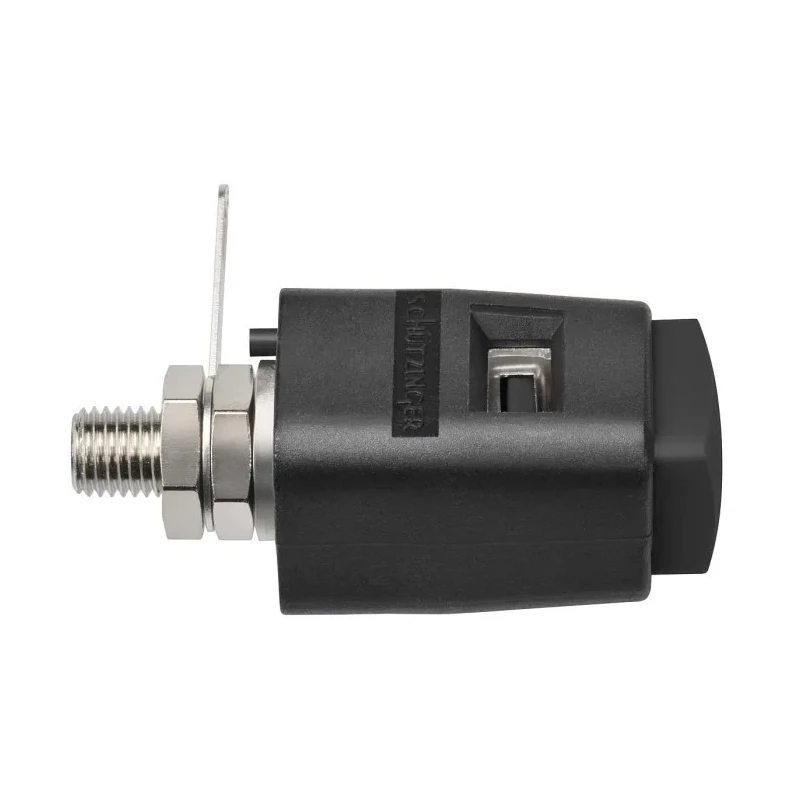

Schutzinger Black 6.2 mm Terminal Post, 70V, M6 Thread, 16A SDK 504 / SW

Schutzinger SDK 504 / SW Black Terminal Post offers a reliable and convenient solution for electrical connections requiring a quick release mechanism. Designed with a spring clamp action, this terminal post simplifies wiring in laboratory, test and measurement, and electronic assembly applications.

The terminal post is constructed from rugged Polyamide 66 material, ensuring mechanical strength and electrical insulation. It supports a maximum current of 16A and a voltage rating of 70V, making it suitable for a variety of low voltage electrical systems.

Featuring an M6 threaded post coupled with a fastening nut, it securely mounts to non-metal panels up to 5 mm thickness. The compact design, with a height above panel of 29 mm, suits installations requiring minimal space.

This component exhibits low transition resistance of 5 mΩ, promoting stable connections with minimal power loss. The maximum torque rating of 120 Ncm on the fastening nut guarantees secure installation without risk of damage.

Spring clamp action enables fast and easy wire connections. Durable and insulated Polyamide 66 body enhances safety and longevity. Supports up to 16A current and 70V voltage. M6 threaded post with nut supports secure panel mounting.

Compact height of 29 mm above panel for space-efficient use. Low transition resistance ensures efficient electrical performance. Maximum torque of 120 Ncm on fastening nut for secure attachment.

This terminal post is suited for industrial, laboratory, test and measurement, and electronic manufacturing applications where dependable, safe, and easy wire termination is essential. It is manufactured in Germany, reflecting high-quality standards.
