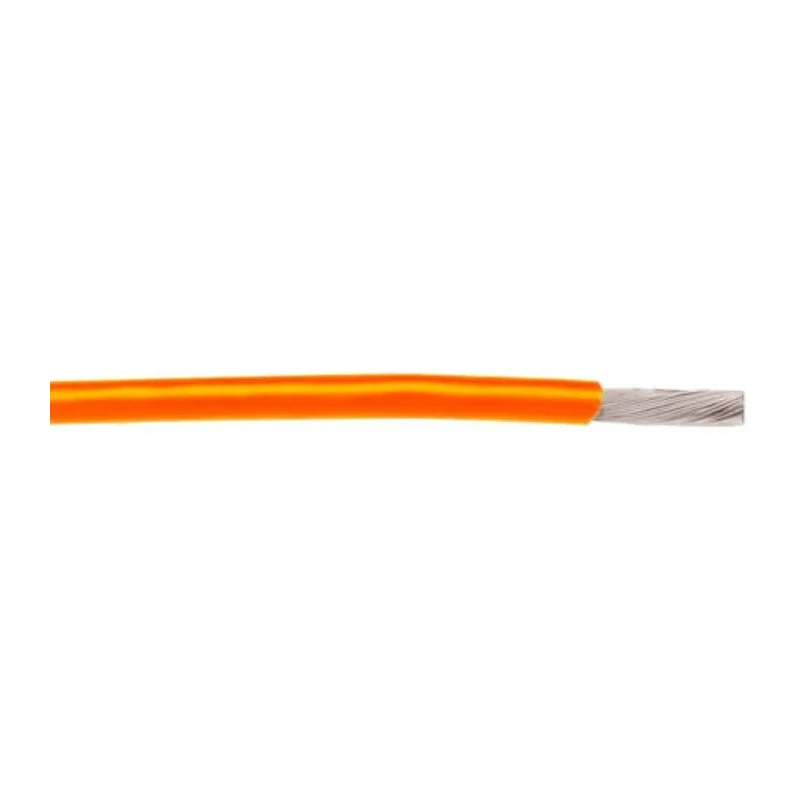

Alpha Wire Hookup Wire TEFLON Series Orange 0.2 mm², 24 AWG, 19/0.13 mm Strands, 30 m Length, Silver Plated 5874 OR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Alpha Wire |
| Temperature range | -60°C to +200°C |
| CROSS SECTIONAL AREA | 0.2mm² |
| Model | 5874 OR005 |
| Cable Length | 30m |
| Series | Hookup Wire TEFLON |
| Outside diameter | 1.37mm |
| Maximum Operating Temperature | 200°C |
| Conductor Material | Silver Plated Copper |
| Cable Type | Hookup |
| Minimum Operating Temperature | -60°C |
| Jacket Material | Polytetrafluoroethylene |
| Wire size | 24 AWG |
| Standards/Approvals | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized |
| Jacket Colour | Orange |
| American Wire Gauge | 24AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.13mm |
| Size of Strands | 0.13mm |
| Stranding | 19/36 |
| Chemically inert | Chemical and solvent resistance |
| NEMA HP3 Type | EEXBEE |
| Insulation Colour | Orange |
Key Features
- Constructed with silver plated copper conductor for excellent conductivity.
- Insulated with polytetrafluoroethylene (PTFE) jacket providing high heat resistance up to 200°C.
- Designed to operate in temperature ranges from -60°C to +200°C safely.
- Complies with MIL-DTL-16878/5 Type EE, UL AWM 1180, NEMA HP3 standards.
- Wire size 24 AWG with 19 strands of 0.13 mm diameter each for flexibility.
- Jacket color is orange for easy identification in wiring harnesses.
- Ideal for military, automotive, electronic equipment, and control panel wiring.
- Has excellent chemical and solvent resistance due to PTFE insulation.
Product Description
Alpha Wire 5874 OR005 Hookup Wire TEFLON Series Orange offers a premium grade 0.2 mm² cross-sectional area hook up wire with silver plated copper conductor strands. Specifically designed to meet demanding industrial and military specifications, this 24 AWG wire comprises 19 strands of 0.13 mm diameter each, combining flexibility with excellent electrical performance.
The insulation is made from polytetrafluoroethylene (PTFE), which affords outstanding high temperature tolerance up to 200°C and resistance to various chemicals and solvents, making it highly durable in harsh environments. The wire operates reliably across a temperature range from -60°C to +200°C, suited for control cabinet wiring, machine tool rooms, high temperature ovens, transformers, and off-road construction equipment wiring.
Conforming to stringent standards such as MIL-DTL-16878/5 Type EE, UL AWM 1180, NEMA HP3, and RoHS compliance, this hook up wire is well suited for military and industrial applications requiring high reliability and safety. The orange PTFE jacket improves visual identification and isolation in complex wiring arrangements.
This 1 kV rated hook up wire is commonly used in electronic equipment housing, automotive meters, ovens, business machines, and other applications where high temperature endurance and excellent electrical properties are critical.
Silver plated copper stranded conductor for enhanced conductivity. PTFE jacket for high temperature and chemical resistance. Temperature rating from -60°C to 200°C for versatile application. Meets MIL-DTL-16878/5 Type EE, UL AWM 1180, and NEMA HP3 specifications.
24 AWG wire size with 19 strands for flexibility and strength. Orange insulation for easy wire identification. Voltage rating up to 1 kV for low voltage wiring needs. Length of 30 meters per reel suitable for medium scale wiring projects.
Alpha Wire's TEFLON Series hook up wire ensures durable, reliable performance in industrial, military, automotive, and electronic equipment wiring environments. Explore more from Alpha Wire and other high-quality products in the EnvMart Hook Up Wire category to meet your wiring needs with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely within a temperature range of -60°C to +200°C.
It has a voltage rating of up to 1 kV, suitable for low voltage wiring applications.
The conductor is made of silver plated copper, and the insulation is polytetrafluoroethylene (PTFE).
The wire length is 30 meters per reel, making it suitable for medium scale wiring projects.
It complies with several standards including MIL-DTL-16878/5 Type EE, UL AWM 1180, and NEMA HP3.
The wire size is 24 AWG, which corresponds to a cross-sectional area of 0.2 mm².
This model consists of 19 strands, each with a diameter of 0.13 mm, providing flexibility.
The outside diameter of the wire is 1.37 mm.
The insulation is orange, which aids in visual identification during wiring.
It is ideal for military, automotive, electronic equipment, and control panel wiring.
The PTFE insulation provides excellent chemical and solvent resistance, making it suitable for harsh environments.
The country of origin for this hookup wire is India.
