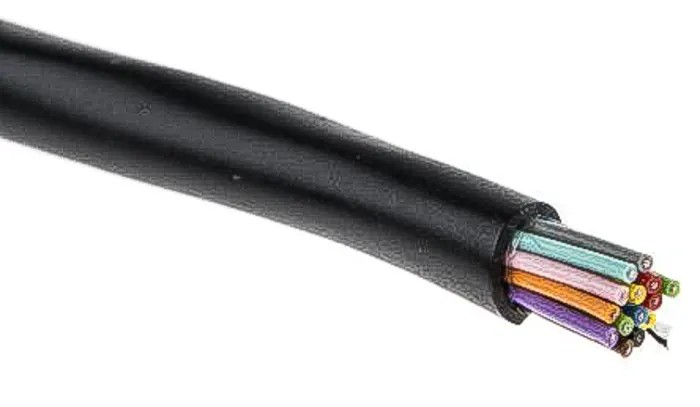

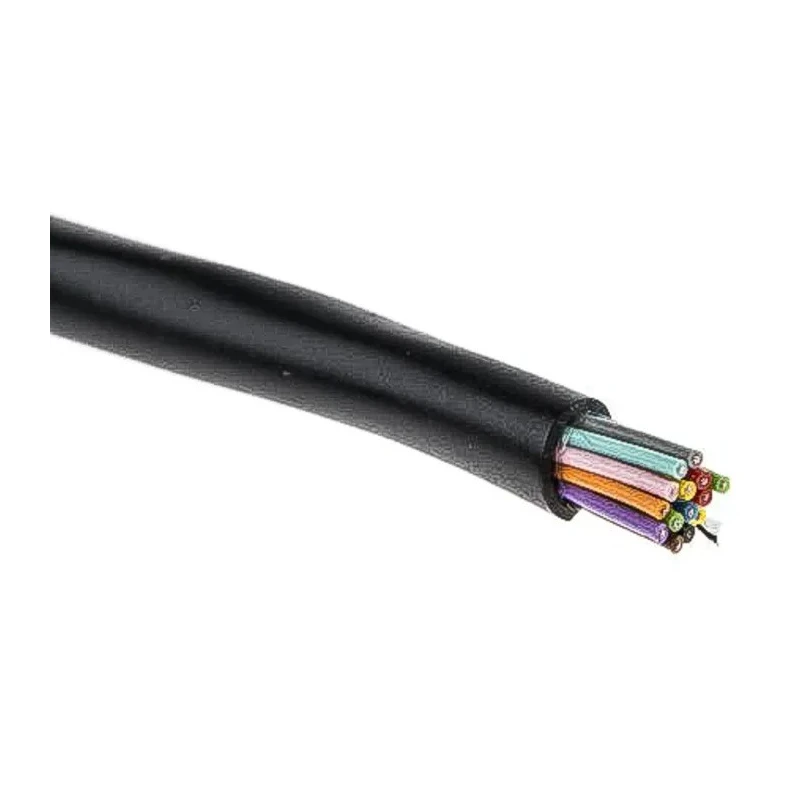

Alpha Wire Xtra-Guard 2 Performance Cable Control Cable 15 Cores 0.35mm² 22 AWG Screened Armoured Black 25199/15 BK005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Xtra-Guard 2 Performance Cable Control Cable 15 Cores 0.35mm² 22 AWG Screened Armoured Black 25199/15 BK005

Name: Alpha Wire Xtra-Guard 2 Performance Cable Control Cable 15 Cores 0.35mm² 22 AWG Screened Armoured Black 25199/15 BK005
Brand: ALPHA WIRE
SKU: 135094
Price: 821.13 USD
Availability: InStock



Category Control Cable Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
Model	25199/15 BK005
Cable Length	30m
Series	Xtra-Guard 2 Performance Cable
Outside diameter	7.7mm
Maximum Operating Temperature	90°C
Number Of Cores	15
Conductor Material	Tin Copper Wire
Minimum Operating Temperature	-30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE, UL, CSA
Jacket Colour	Black
Fire Behaviour	LSZH (Low Smoke Zero Halogen), Flame Retardant, Flame resistance to UL1581 VW-1, Low Flammability, Flame Retardant to IEC 60332-1-2
American Wire Gauge	22AWG
Screened/Unscreened	Screened
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Cable CSA	0.35mm²

Key Features

Heavy-duty abrasion resistant polyurethane jacket offers enhanced durability.
Screened with Supra-Shield for exceptional electromagnetic interference protection.
Temperature rating from -30°C to 90°C for versatile applications.
Suitable for industrial mechanical abuse environments.
Colour-coded conductors with nylon ripcord for easy stripping.
Complies with UL AWM 20668 VW-1, CSA AWM I/II A/B FT-1 standards.
Designed for CNC machines, automotive plants, packaging, petrochemical plants and more.

Product Description

Alpha Wire 25199/15 BK005 Control Cable is a high-performance, screened and armoured cable designed for harsh industrial environments requiring robust abrasion resistance and electromagnetic interference protection. It features 15 cores of tin copper wires of 0.35mm² cross-sectional area (22 AWG) with a black polyvinyl chloride (PVC) jacket.

The Xtra-Guard 2 range is known for its heavy-duty polyurethane jacket that offers three times the tear and abrasion resistance of standard PVC jackets. This cable delivers reliable temperature performance from -30°C minimum to 90°C maximum, making it suitable for a wide range of industrial applications.

The Supra-Shield technology combines triple layers of aluminum/polyester/aluminum foil and a tinned copper braided shield, significantly reducing electromagnetic interference (EMI). The cable's nylon ripcord simplifies stripping and installation, while its colour-coded conductors enhance identification and wiring efficiency.

This armoured Control Cable complies with major international industry standards including UL, CSA, and CE, offering flame retardant and LSZH (Low Smoke Zero Halogen) fire safety characteristics equivalent to UL1581 VW-1 and IEC 60332-1-2 tests.

Applications include automation in CNC machinery, automotive manufacturing, packaging equipment, geophysical instrumentation, petrochemical plant operations, and military ground support systems, among others. Its versatility ensures reliable performance in both mechanical and chemical challenging environments.

Heavy-duty abrasion resistant polyurethane jacket offers enhanced durability. Screened with Supra-Shield for exceptional electromagnetic interference protection. Temperature rating from -30°C to 90°C for versatile applications.

Suitable for industrial mechanical abuse environments. Colour-coded conductors with nylon ripcord for easy stripping. Complies with UL AWM 20668 VW-1, CSA AWM I/II A/B FT-1 standards. Designed for CNC machines, automotive plants, packaging, petrochemical plants and more.

Select from the complete Alpha Wire Xtra-Guard series for specific needs including Pro-Tekt, Xtra-Guard 2, 3, 4, 5, and Flex for varying applications requiring chemical, UV, and temperature resistance. Browse the Electronics & Electricals category at EnvMart for more industrial cables and wiring solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cable has a temperature rating ranging from -30°C to 90°C, making it suitable for various industrial applications.

This model features 15 cores of tin copper wires, each with a cross-sectional area of 0.35mm² (22 AWG).

The outside diameter of the cable is 7.7mm.

It is equipped with a heavy-duty polyurethane jacket that offers enhanced abrasion resistance compared to standard PVC jackets.

The cable complies with several standards including UL AWM 20668 VW-1, CSA AWM I/II A/B FT-1, and is CE certified.

The voltage rating of this cable is 300V.

It features LSZH (Low Smoke Zero Halogen) properties, is flame retardant, and has flame resistance to UL1581 VW-1 and IEC 60332-1-2 standards.

The cable has a length of 30 meters.

EMI protection is provided through the Supra-Shield technology, which includes triple layers of aluminum/polyester/aluminum foil and a tinned copper braided shield.

Yes, it features color-coded conductors for easy identification and wiring efficiency, along with a nylon ripcord for simplified stripping.

This control cable is designed for harsh industrial environments, including applications in CNC machines, automotive plants, and petrochemical operations.

The conductors are made of tin copper wire, which enhances conductivity and durability.
