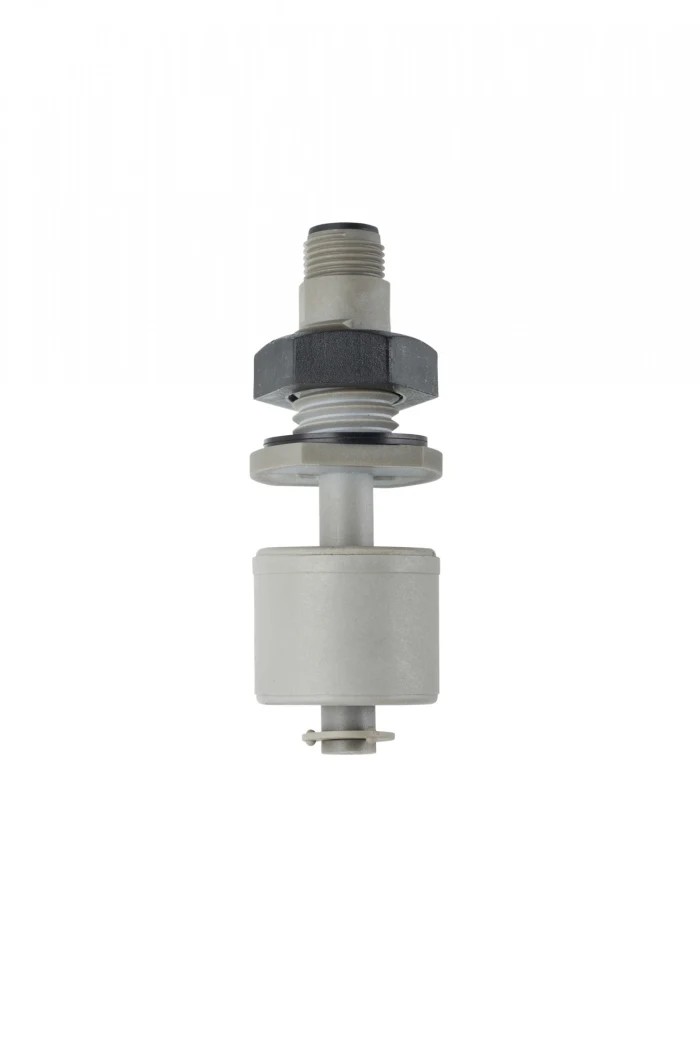

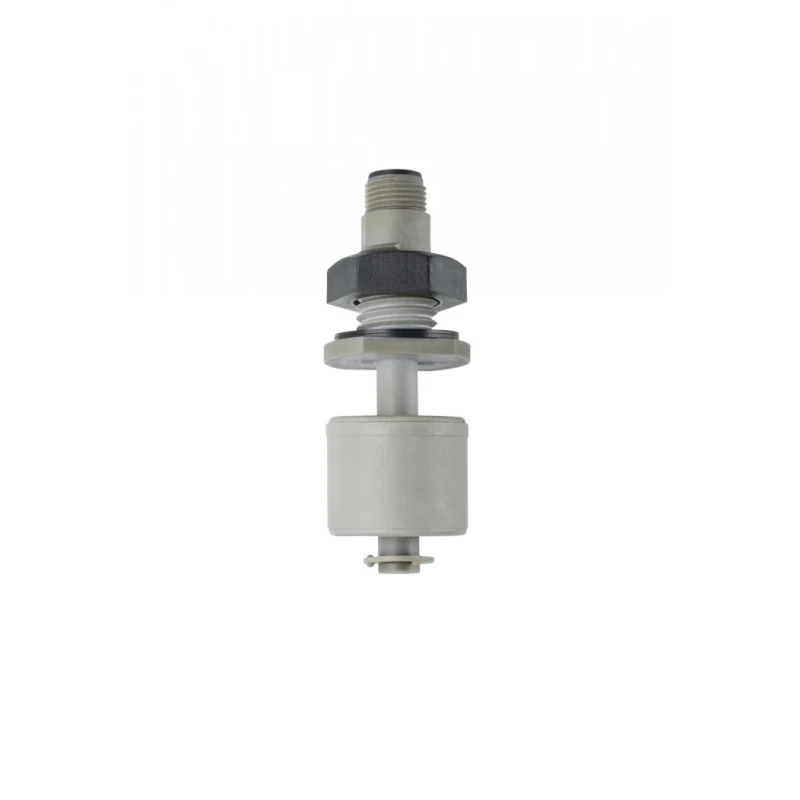

Cynergy3 RSF150 Series Vertical Nitrile Rubber (NBR) Float Switch, NO/NC Output, 240 V AC Max, 120 V DC Max RSF156YFP
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Model | RSF156YFP |
| Mount Type | Vertical |
| Housing Material | Polyphenylene Sulfide |
| Series | RSF150 |
| Maximum Operating Temperature | 105°C |
| Switch output | NO/NC |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 600mA |
| Maximum dc Voltage | 120V dc |
| Standards/Approvals | UL, WRAS |
| Maximum AC Voltage | 240V ac |
| Gasket Material | Nitrile Rubber (NBR) |
Key Features
- Vertical mount type designed for controlling liquid levels in tanks.
- Switch output can be NO (normally open) or NC (normally closed) for versatile applications.
- Durable polyphenylene sulfide housing resistant to chemicals and abrasion.
- Operates in a temperature range from -10°C up to 105°C.
- Maximum switching current of 600 mA suitable for low power systems.
- Nitrile rubber gasket ensures a leakproof and chemical-resistant seal.
- M12 connector provides straightforward electrical connection.
- Self-extinguishing body meets safety requirements for fire-prone environments.
Product Description
Cynergy3 RSF156YFP is a high-quality vertical float switch from the RSF150 Series designed to control liquid levels in tanks by regulating supply pumps based on low or high liquid detection. Its polyphenylene sulfide housing provides excellent resistance to liquids, chemicals, and abrasion, suitable for demanding and heavy-duty industrial applications.
This float switch features a nitrile rubber (NBR) gasket to ensure a leakproof seal resistant to chemicals and wear. The switch output supports both normally open (NO) and normally closed (NC) contacts, allowing versatile integration into various control systems. It operates at maximum voltages of 240 V AC and 120 V DC with a maximum switching current of 600 mA, making it suitable for low-power systems such as chemical dosing, printing machines, and other liquid level management equipment.
The device supports a wide operating temperature range from -10°C to 105°C, allowing use in demanding environments. An M12 connector enables simple and reliable electrical connections during installation. The switch body is self-extinguishing, providing enhanced fire safety in fire-prone areas.
This float switch is ideal for industrial, chemical processing, water treatment, manufacturing, and HVAC applications where reliable liquid monitoring and control are critical. Vertical mount type designed for liquid level control in tanks.
Switch output selectable as normally open (NO) or normally closed (NC). Polyphenylene sulfide housing ensures chemical and abrasion resistance. Wide temperature operating range from -10°C to +105°C. Maximum switching current rated at 600 mA.
Nitrile rubber gasket provides a chemical-resistant leakproof seal. M12 electrical connector for easy installation. Self-extinguishing body suitable for fire-prone environments.
Choose Cynergy3 RSF156YFP float switch from EnvMart for industrial-grade liquid level management with long-term reliability and safety. Browse further Cynergy3 sensors and Float Switches in our extensive catalog for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this float switch is 105°C.
The housing is made of polyphenylene sulfide, and it features a nitrile rubber (NBR) gasket for a leakproof seal.
The maximum switching current for the RSF156YFP is 600 mA, suitable for low power systems.
This model operates at a maximum voltage of 240 V AC and 120 V DC.
The float switch can be configured for either normally open (NO) or normally closed (NC) output.
The minimum operating temperature for the RSF156YFP is -10°C.
This float switch is designed for vertical mounting and features an M12 connector for straightforward electrical connections.
It is ideal for industrial applications such as chemical processing, water treatment, manufacturing, and HVAC systems where liquid level control is essential.
This float switch meets UL and WRAS standards, ensuring compliance with safety requirements.
It is suitable for demanding environments due to its chemical and abrasion resistance, making it ideal for heavy-duty industrial applications.
The nitrile rubber gasket ensures a leakproof and chemical-resistant seal, enhancing the switch's reliability in liquid applications.
The country of origin for this float switch is China.
