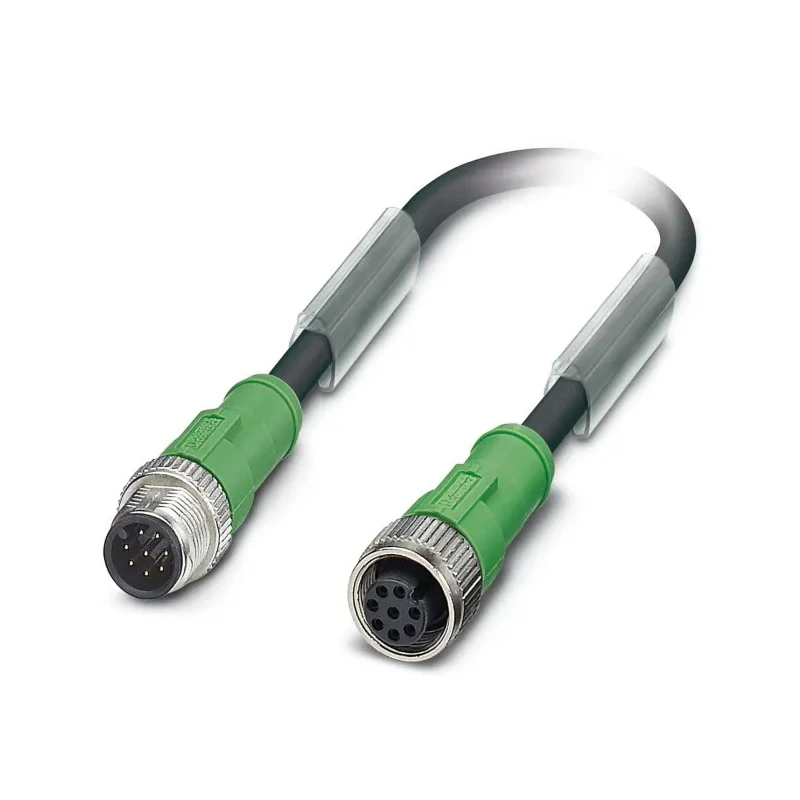

Phoenix Contact Sensor Actuator Cable 3 m Length 8 Way Male to Female Straight Connectors 30V 1522707

Phoenix Contact 1522707 Sensor Actuator Cable is a robust 3 m length cable designed for connecting sensors and actuators to input/output devices in industrial automation systems. It is equipped with 8 way straight male and female connectors, complying with standard M12 connection formats to allow secure and efficient plug-and-play installations.

The cable features eight high-quality conductor cores made from bare copper litz wire, known for its low electrical resistance and excellent signal transmission capability. These cores are twisted together within a polypropylene jacket which is covered by a halogen-free polyurethane (PUR) sheath that is flame retardant, enhancing workplace safety by minimizing fire hazard risks.

This sensor cable is engineered to operate within a wide temperature range of -25°C to +90°C, ensuring reliable function under various harsh environmental conditions. Its electrical rating supports a maximum DC voltage of 30V, making it suitable for low to medium power automation applications.

For enhanced durability and functional reliability, the cable is rated IP65, IP67, and IP68, which means it is dust-tight and water resistant, capable of withstanding immersion in water up to 1.5 meters depth for 30 minutes without any degradation of performance. The cable also features a bending radius of 59 mm for flexible installations around corners or irregular surfaces.

Its maximum current capacity is 2A, which helps prevent heat buildup and maintains operational safety during continuous use. These features make this cable ideal for demanding industrial, manufacturing, HVAC, and automated process control environments where secure and high-quality signal transmission is critical.

The cable includes eight conductive wires twisted together to reduce electromagnetic interference. Features male and female straight M12 connectors with 8 contacts each for secure and quick plug-and-play connection. Constructed with bare copper litz wire cores ensuring low resistance and high signal quality.

Encased in a halogen-free, flame retardant PUR sheath suitable for harsh industrial environments. Operates safely at a maximum DC voltage of 30V and withstands temperatures from -25°C to +90°C. Rated IP65, IP67, and IP68 for dust protection and water immersion resistance up to 1.5 m for 30 minutes.

Design supports a 59 mm bend radius allowing installation around bends without performance loss. Supports up to 2A current for minimal heat dissipation during use.

This sensor actuator cable is widely applicable in industrial automation, manufacturing, process control, laboratory instrumentation, and HVAC systems. Its reliable construction and protective ratings ensure long service life and stable connectivity even under challenging conditions.
