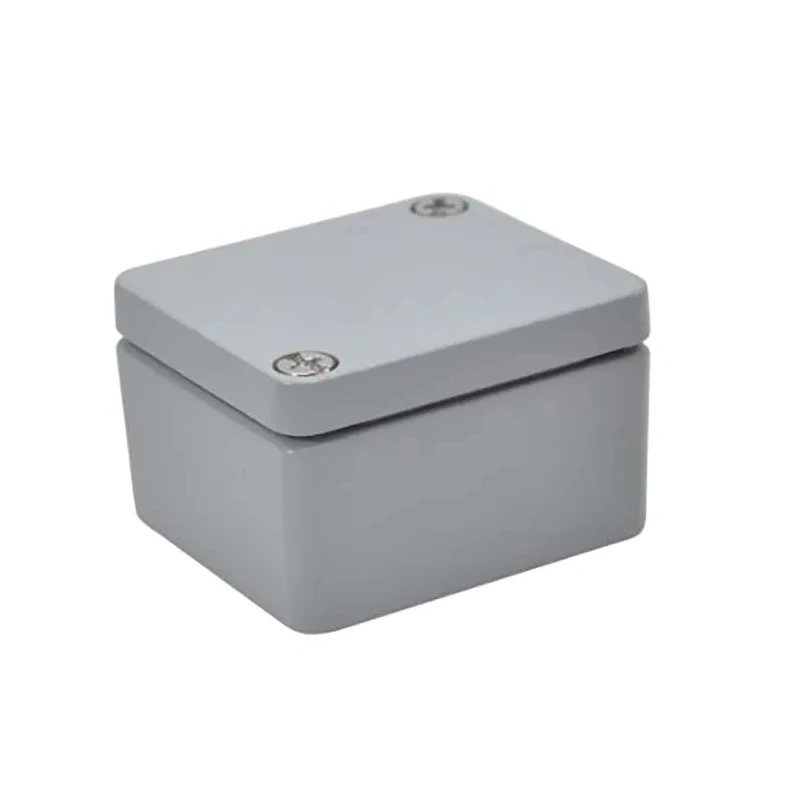

RS PRO Silver Lid Die Cast Aluminium Enclosure IP66 30 mm x 50 mm x 45 mm IP66
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Series | RS PRO |
| External Width | 45mm |
| External Height | 30mm |
| Shielding | Unshielded |
| External Length | 50mm |
| Lid Colour | Silver |
| Gasket Material | Neoprene |
Key Features
- Manufactured from durable die cast aluminium with a natural finish.
- Rated IP66 for robust ingress protection against dust and water.
- Features a silver lid with neoprene O-ring continuous gasket ensuring watertight sealing.
- Includes captive stainless steel lid screws and copper-plated earthing screws for secure grounding.
- Wall thickness of 3 mm provides mechanical strength and excellent heat dissipation.
- Suitable for both indoor and outdoor applications in industrial and electrical environments.
- Compliant with multiple standards including CE, ASTM B117, IEC 60529, and MIL-STD-810G.
- Ideal for protecting internal electrical components in telecommunications, mechanical automation, and button switching elements.
Product Description
RS PRO IP66 Die Cast Aluminium Enclosure, model IP66, offers a protective housing measuring 30 mm in height, 50 mm in length, and 45 mm in width. Constructed from high-quality die cast aluminium (ALSi12), this enclosure is engineered for demanding industrial and electrical applications requiring robust environmental protection with an IP66 rating.
The enclosure features a silver lid with a Neoprene O-ring continuous gasket, ensuring waterproof sealing and protection against dust ingress. It includes captive stainless steel lid screws and four copper-plated earthing screws for secure grounding and electrical safety. The 3 mm thick walls provide strength and contribute to heat dissipation, making it suitable for projects that generate thermal load.
Designed to withstand harsh conditions, it meets certifications and approvals such as CE, ASTM B117 salt spray test, DIN 1725, IEC 60529, IEC 62262, IK rating, MIL-STD-810G mechanical vibration and shock test, NEMA 4X & 6P, and UL 50/508A/50E.
Applications include protection of electrical and electronic components such as button switching elements, telecommunication devices, network junction boxes, and automation equipment. The light-weight aluminium housing is also suitable for RF projects and outdoor use where environmental exposure is a concern.
Manufactured from die cast aluminium with natural finish for corrosion resistance. IP66 rating ensures dust tight and powerful water jet protection. Neoprene O-ring gasket guarantees watertight enclosure integrity. Captive stainless steel lid screws simplify installation and maintenance.
Includes copper-plated earthing screws for effective grounding. Wall thickness of 3 mm provides mechanical robustness. DIN rail mounting points offered for flexible mounting options. Meets international certifications for quality and durability.
Suitable for indoor and outdoor electrical housing needs. Ideal for industrial, telecommunication, mechanical automation, and general electrical applications.
Ensure protection of sensitive electrical components with this reliable RS PRO die cast aluminium enclosure. Browse further general purpose enclosures in the Electronics & Electricals category at EnvMart.
Explore more products in our Electrical Enclosure category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 30 mm in height, 50 mm in length, and 45 mm in width.
It is constructed from die cast aluminium, specifically ALSi12, which provides corrosion resistance and mechanical strength.
The enclosure has an IP66 rating, ensuring it is dust tight and protected against powerful water jets.
Yes, it features a Neoprene O-ring continuous gasket that ensures watertight sealing.
It includes captive stainless steel lid screws and copper-plated earthing screws for secure grounding.
Yes, it is suitable for both indoor and outdoor applications in industrial and electrical environments.
It complies with multiple standards including CE, ASTM B117, IEC 60529, and MIL-STD-810G.
The enclosure has a wall thickness of 3 mm, providing mechanical strength and aiding in heat dissipation.
Yes, it offers DIN rail mounting points for flexible mounting options.
It is ideal for protecting internal electrical components in telecommunications, mechanical automation, and button switching elements.
The lid of the enclosure is silver in colour.
The enclosure is unshielded, which is suitable for various applications requiring protection without shielding.
