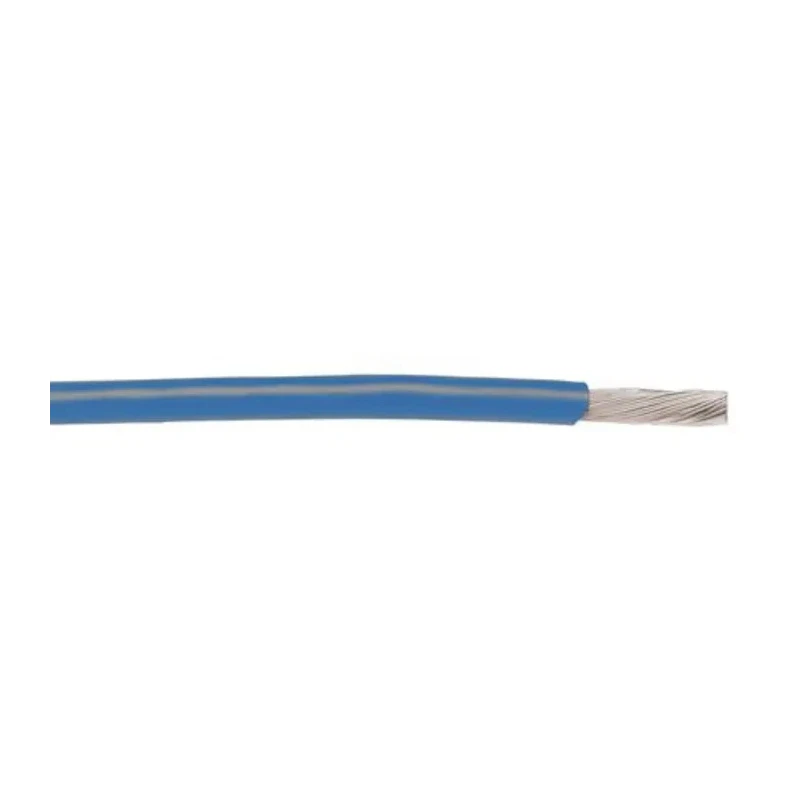

Alpha Wire Hook Up Wire PVC Series Blue 0.33 mm² 22 AWG 7/0.25 mm Copper Conductor 30 m 1 kV 1551 BL005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Hook Up Wire PVC Series Blue 0.33 mm² 22 AWG 7/0.25 mm Copper Conductor 30 m 1 kV 1551 BL005

Name: Alpha Wire Hook Up Wire PVC Series Blue 0.33 mm² 22 AWG 7/0.25 mm Copper Conductor 30 m 1 kV 1551 BL005
Brand: ALPHA WIRE
SKU: 134360
Price: 43.93 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	Alpha Wire
Temperature range	-40°C to +80°C
CROSS SECTIONAL AREA	0.33mm²
Model	1551 BL005
Cable Length	30m
Series	Hookup Wire PVC
Outside diameter	1.57mm
Maximum Operating Temperature	80°C
Conductor Material	Copper
Sub Type	1551 Hookup Wire
Cable Type	Hookup
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	Military MIL-W-76B TYPE MW
Jacket Colour	Blue
American Wire Gauge	22AWG
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Mil-spec compliance	MIL-W-76 B Type MW

Key Features

The wire features a copper conductor with 7 strands of 0.25 mm diameter for flexibility and conductivity.
It has a 30-meter length and operates at a voltage rating of 1 kilovolt.
The insulation consists of durable polyvinyl chloride (PVC) in blue color, allowing easy circuit identification.
Designed to withstand temperatures from -40°C to +80°C, suitable for military and industrial applications.
Compliance with Mil-spec MIL-W-76B TYPE MW ensures reliability under extreme conditions.
The outside diameter of the wire measures 1.57 mm, maintaining compactness in installations.
Its abrasion and flame resistance make it ideal for control cabinets and machine tool wiring.
Excellent uniformity and low-fray design facilitate easy stripping and termination.

Product Description

Alpha Wire 1551 BL005 Hook Up Wire PVC Series Blue 0.33 mm² 22 AWG is manufactured to meet stringent quality standards with a copper conductor comprising 7 strands of 0.25 mm each. Engineered for use in electronic and military applications, this wire offers a nominal voltage rating of 1 kV and an operating temperature range from -40°C to +80°C, enabling reliable performance under harsh conditions.

The cable jacket is made from polyvinyl chloride (PVC), providing excellent abrasion resistance and flame retardancy. Blue color coding enables easy circuit identification in complex wiring setups. The wire's outside diameter is 1.57 mm, making it compact for installations in control cabinets, transformers, and machine tools.

Designed per the military MIL-W-76B TYPE MW specification, this wire fulfills demanding electronic military application requirements, including resistance to temperature extremes, shock, and chemical exposure.

The conductor consists of 7 strands of 0.25 mm diameter copper for flexibility and superior conductivity. The 30-meter length reel supports extensive wiring jobs without frequent joins. Polyvinyl chloride insulation ensures durability and electrical safety.

Temperature ratings from -40°C to +80°C allow use in diverse industrial environments. Compliance with MIL-W-76B TYPE MW provides assurance of military-grade quality. Blue jacket color aids in organized wiring and circuit management.

The wire is suitable for control cabinets, switchboards, military equipment, high temperature ovens, and off-road construction machinery. Flame and abrasion-resistant properties extend the wire's operational lifespan. Its flexible stranded conductor facilitates easy handling, stripping, and termination.

Alpha Wire's 1551 BL005 is a trusted choice for applications requiring durability, compliance, and high electrical performance. Explore EnvMart's Electronics & Electricals catalog for more professional-grade Hook Up Wire products.
