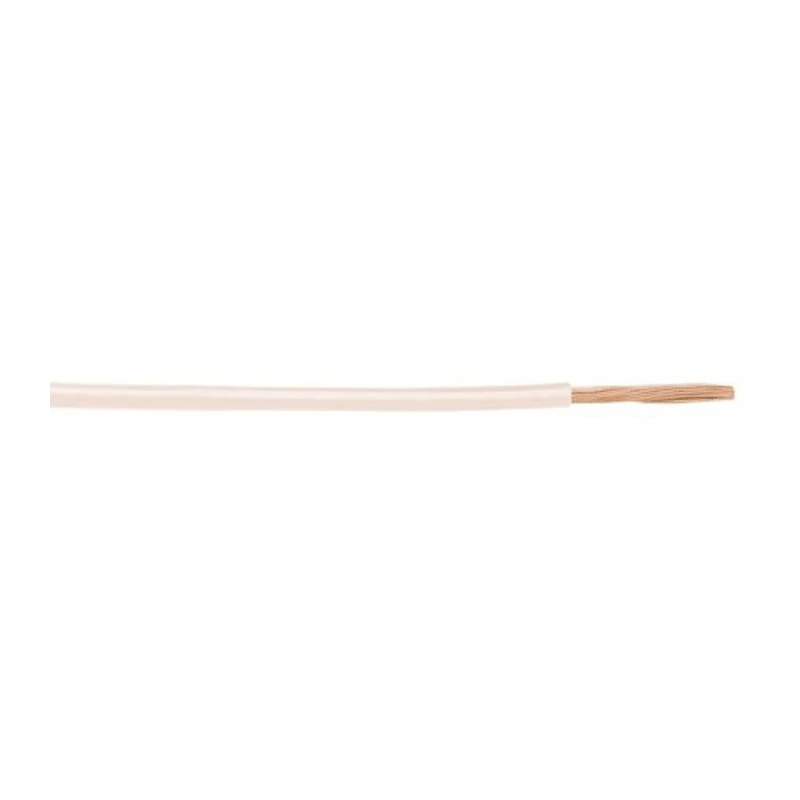

Alpha Wire Hook Up Wire PVC Series White 0.52 mm², 20 AWG, 1 x 0.81 mm Core Strands, 30 m Length, Polyvinyl, 1 1563 WH005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Alpha Wire |
| Temperature range | -40°C to +80°C |
| CROSS SECTIONAL AREA | 0.52mm² |
| Model | 1563 WH005 |
| Cable Length | 30m |
| Series | Hookup Wire PVC |
| Outside diameter | 1.63mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Copper |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | Military MIL-W-76B TYPE MW |
| Jacket Colour | White |
| American Wire Gauge | 20AWG |
| Number of Strands | 1 |
| Core Strands | 1 x 0.81mm |
| Size of Strands | 0.81mm |
| Mil-spec compliance | MIL-W-76 B Type MW |
Key Features
- This hook-up wire features a 0.52 mm² cross-sectional area and 20 AWG gauge for effective electrical conductivity.
- The wire consists of 1 strand of 0.81 mm diameter copper core strands ensuring durability and flexibility.
- Constructed with polyvinyl chloride (PVC) insulation, it offers excellent flame and abrasion resistance.
- Compliant with MIL-W-76B TYPE MW military standard, suitable for harsh environments.
- Operates reliably within the temperature range of -40°C to +80°C.
- The white jacket color aids in easy circuit identification during installations.
- Designed for use in electronics, military equipment, control cabinets, and machine tool wiring.
- Its high uniformity and low-fray design enable easy handling, stripping, and termination.
Product Description
Alpha Wire 1563 WH005 is a high-quality hook-up wire from the PVC Series, featuring a 0.52 mm² cross-sectional copper conductor with a 20 AWG rating. The wire measures 30 meters in length and features a single strand core with 0.81 mm diameter, designed to deliver reliable electrical performance at 1 kV voltage rating. Its polyvinyl chloride jacket provides excellent mechanical protection, flame retardance, and abrasion resistance. This product complies with MIL-W-76B TYPE MW military standard, ensuring robustness suitable for demanding applications in military, industrial, and electronics fields.
With a temperature range of -40°C to +80°C, this hook-up wire is engineered to withstand harsh environmental conditions, making it ideal for control cabinets, machine tools on factory floors, high-temperature ovens, switchboards, and transformers. The white color coding allows for easy circuit identification, facilitating efficient installation and maintenance.
Alpha Wire’s design ensures excellent uniformity and minimal fraying, which enhances stripping and termination processes. The stranded copper conductor employed exhibits flexibility and excellent conductivity properties vital for high-performance electrical wiring.
This hook-up wire is manufactured with polyvinyl chloride insulation for durability and protection. The 1 kV voltage rating supports a wide range of electrical applications requiring safe high voltage resistance. Military standard compliance guarantees suitability for extreme conditions including shock, temperature, and chemical exposure.
The product’s flame resistance and abrasion resistance contribute to operational safety and longevity. Manufactured for use in electronics, industrial machinery, military systems, and electrical control environments. It offers a rugged solution for wiring tasks demanding consistent performance and reliability.
Choose Alpha Wire 1563 WH005 for dependable, mil-spec quality hook-up wire suitable for laboratory, industrial, military, HVAC, and manufacturing sectors. Explore more wire and cable products in the Electronics & Electricals category at EnvMart for your technical needs.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook-up wire is 0.52 mm².
The maximum operating temperature for this model is 80°C.
This wire supports a voltage rating of 1 kV.
The length of the wire is 30 meters.
The conductor material is copper.
The wire is insulated with polyvinyl chloride (PVC).
The temperature range for this hook-up wire is -40°C to +80°C.
This wire has 1 strand of core with a diameter of 0.81 mm.
The jacket color of this wire is white, which aids in circuit identification.
Yes, this wire complies with the Military MIL-W-76B TYPE MW standard.
This hook-up wire is suitable for use in electronics, military equipment, control cabinets, and machine tool wiring.
The outside diameter of this wire is 1.63 mm.
