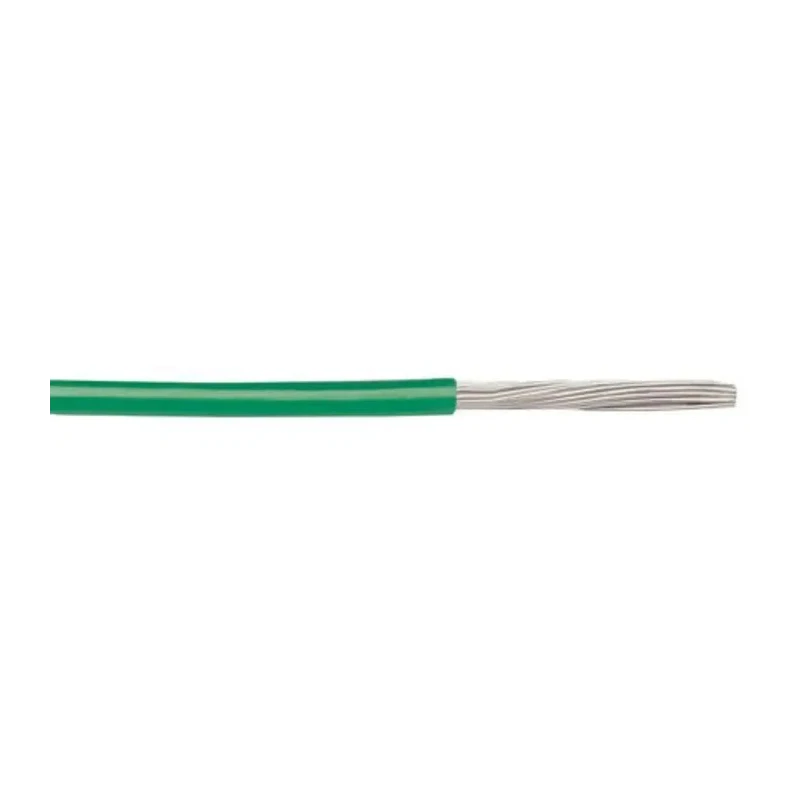

Alpha Wire Hookup Wire PVC Series Green 0.33 mm², 22 AWG, Solid Copper Conductor, 1.45 mm Diameter, 30 m Length 1561 GR005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Hookup Wire PVC Series Green 0.33 mm², 22 AWG, Solid Copper Conductor, 1.45 mm Diameter, 30 m Length 1561 GR005

Name: Alpha Wire Hookup Wire PVC Series Green 0.33 mm², 22 AWG, Solid Copper Conductor, 1.45 mm Diameter, 30 m Length 1561 GR005
Brand: ALPHA WIRE
SKU: 134357
Price: 38.69 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	Alpha Wire
Temperature range	-40°C to +80°C
CROSS SECTIONAL AREA	0.33mm²
Model	1561 GR005
Cable Length	30m
Series	Hookup Wire PVC
Outside diameter	1.45mm
Maximum Operating Temperature	80°C
Conductor Material	Copper
Cable Type	Hookup
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Wire size	22 AWG
Standards/Approvals	Military MIL-W-76B TYPE MW
Jacket Colour	Green
American Wire Gauge	22AWG
Number of Strands	1
Core Strands	1 x 0.64mm
Size of Strands	0.64mm
Stranding	Solid
Insulation Colour	Green
Mil-spec compliance	MIL-W-76 B Type MW

Key Features

Rated for 1000 V with 30 meter length for extensive wiring needs.
Polyvinyl chloride insulation provides excellent flame and abrasion resistance.
Conforms to Military MIL-W-76B Type MW standard ensuring high reliability.
Operating temperature range from -40°C to 80°C for extreme environment durability.
Uniform, low-fray design facilitates easy handling and termination.
Colour-coded green insulation for clear circuit identification.
Solid single strand conductor with 1.45 mm outside diameter.
Suitable for electronics, control cabinets, transformers, and military equipment wiring.

Product Description

Alpha Wire 1561 GR005 Hookup Wire PVC Series Green 0.33 mm² is a high-quality solid copper conductor wire insulated with durable polyvinyl chloride (PVC). This wire is engineered for demanding applications including military and industrial electronics requiring a reliable, flame-resistant hook-up wire.

The wire features a solid single strand conductor of 0.64 mm thickness with an outside diameter of 1.45 mm and total length of 30 meters. It is rated for 1000 V and can operate reliably within a temperature range from -40°C to +80°C, making it suitable for harsh environmental conditions, including high temperature ovens and off-road construction equipment.

Insulation is colour-coded green for easy circuit identification and adheres to MIL-W-76B Type MW military specifications for superior quality and performance. The PVC insulation offers excellent abrasion and flame resistance, ensuring safety and durability in control cabinets, switchboards, transformers, and other industrial electrical systems.

The solid construction provides excellent uniformity with low-fray characteristics allowing easy stripping and termination during assembly or maintenance. This mil-spec hook-up wire is ideal for electronics manufacturing, control cabinet wiring, and military electronics where consistent performance is critical.

Rated 1000 V, suitable for industrial and military electronic wiring. Solid copper conductor with 0.64 mm thickness for robust electrical performance. PVC jacket offers flame resistance and mechanical protection. Complies with MIL-W-76B Type MW military standards.

Colour-coded green insulation facilitates circuit identification. Temperature range from -40°C to 80°C enables use in extreme conditions. 30 meter length provides ample wiring for various applications. Outside diameter of 1.45 mm ensures compact and manageable installation.

This Alpha Wire product is intended for professional electrical, industrial, and military applications requiring dependable hook-up wire. Explore more wiring solutions and components in the Electronics & Electricals category on EnvMart.
