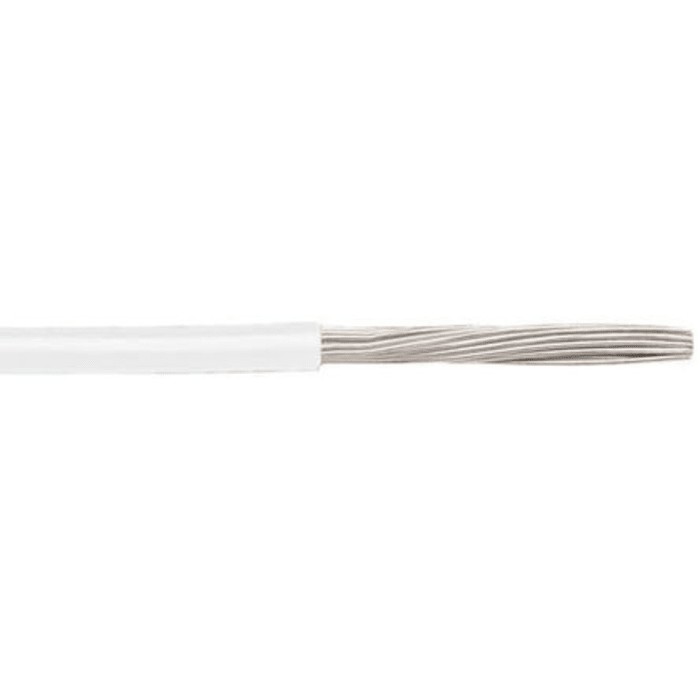

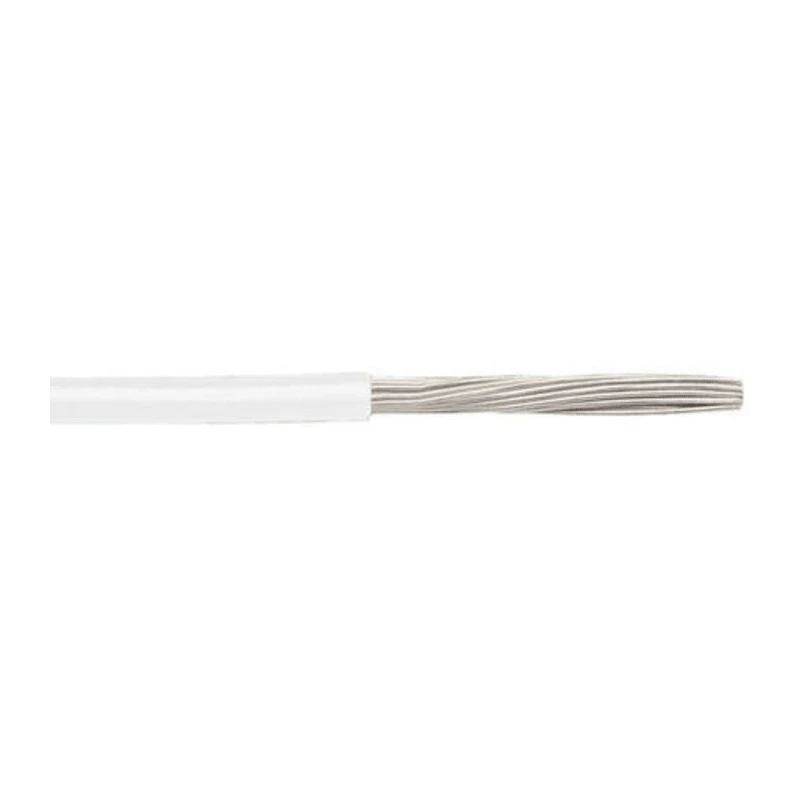

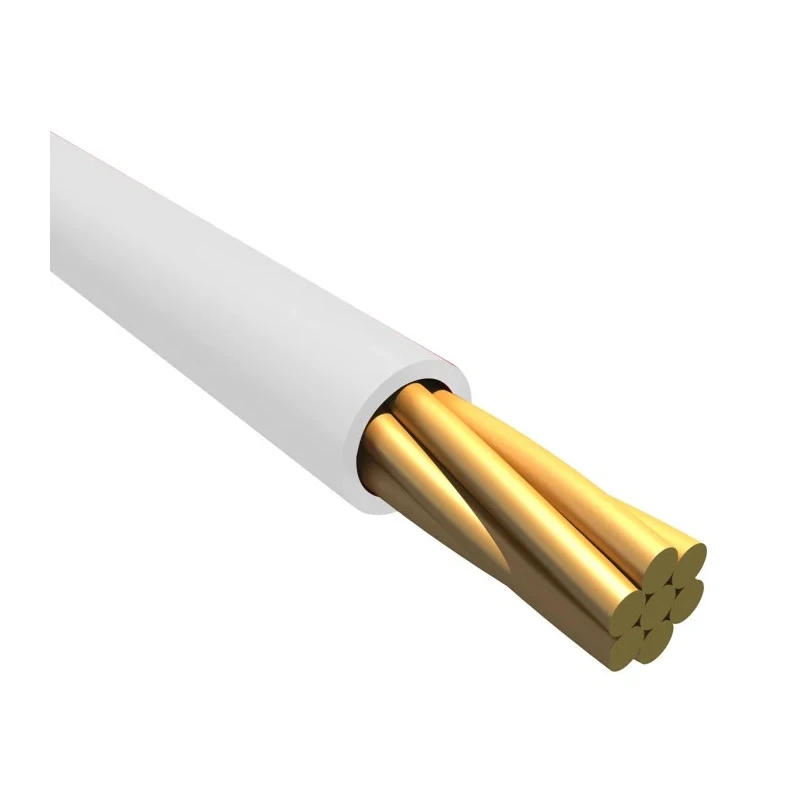

Alpha Wire EcoWire Plus White 0.08mm² Hook Up Wire, 28 AWG, 7/0.12mm Strands, 305m Length, MPPE Insulation 6820 WH001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6820 WH001 |
| Cable Length | 305m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.79mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.031 Inch (0.79 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 28 AWG (0.09mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | White |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 28AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.12mm |
| Size of Strands | 0.12mm |
| Stranding | 7/36 (7 x 0.12) |
Key Features
- Constructed with 7 strands of 0.12 mm diameter copper wires for flexibility and conductivity.
- The wire length is 305 meters, ideal for extensive wiring installations.
- Insulated with flame retardant, low smoke halogen-free MPPE for safety and environmental compliance.
- Operates reliably from -40°C up to 110°C in demanding environments.
- Compliant with CE, ISO 6722, REACH, and RoHS standards for quality and safety.
- White jacket color enhances visibility and identification in wiring harnesses.
- The insulation thickness is 0.008 inch (0.20 mm), providing superior dielectric strength with reduced wall thickness.
- EcoWire Plus is fully recyclable, containing no halogens or heavy metals to meet WEEE requirements.
Product Description
Alpha Wire 6820 WH001 EcoWire Plus hook-up wire is a high-performance single core wire featuring 0.08 mm² cross-sectional copper conductors, stranded with 7 cores of 0.12 mm diameter each. It uses modified polyphenylene ether (MPPE) insulation, which is flame retardant and low smoke halogen free, making it ideal for demanding industrial, automation, transportation, solar, and medical applications.
This wire is designed to operate safely at voltages up to 300 V and withstand operating temperatures between -40°C and 110°C, providing reliable performance even in harsh environments. Its white jacket assists in easy cable identification and organization.
The insulated wire diameter is 0.79 mm, with an insulation thickness of 0.008 inches (0.20 mm), offering a slim profile while maintaining excellent dielectric strength and fluid resistance.
EcoWire Plus supports environmental sustainability, being fully recyclable and free from halogens and heavy metals, helping comply with RoHS and WEEE directives. It meets rigorous standards including CE and ISO 6722.
Applications include electrical wiring for solar power systems, transportation wiring harnesses, wind power installations, industrial machinery, and medical equipment requiring high reliability and safety standards.
Constructed with stranded bare copper conductors for flexibility and conductivity. MPPE insulation provides superior resistance to oils, solvents, fuels, and hazardous fluids. Designed for use in environments requiring flame retardancy and low smoke emissions.
Compliant with international certifications ensuring quality and safety. Available in a 305-meter reel length to support extensive wiring needs. Excellent dielectric strength reduces insulation thickness and weight.
Alpha Wire EcoWire Plus 6820 WH001 exemplifies high-quality hook-up wire solutions that meet modern industrial and environmental standards, ensuring safety and performance in critical applications. Explore our category for more advanced wiring solutions from Alpha Wire and other trusted brands on EnvMart.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum operating voltage of 300V.
It operates reliably in temperatures from -40°C to +110°C.
The cross-sectional area of this hook-up wire is 0.08mm².
This unit is constructed with 7 strands of 0.12mm diameter copper wires.
It uses modified polyphenylene ether (MPPE) insulation, which is flame retardant and low smoke halogen free.
The outside diameter of this wire is 0.79mm.
It complies with CE, ISO 6722, REACH, and RoHS standards for quality and safety.
The wire is available in a length of 305 meters.
It is suitable for applications in industrial machinery, solar power systems, transportation wiring harnesses, and medical equipment.
The insulation thickness of this model is 0.008 inches (0.20 mm).
The conductor material is bare copper, which provides flexibility and conductivity.
Yes, the EcoWire Plus is fully recyclable and free from halogens and heavy metals, meeting WEEE requirements.
