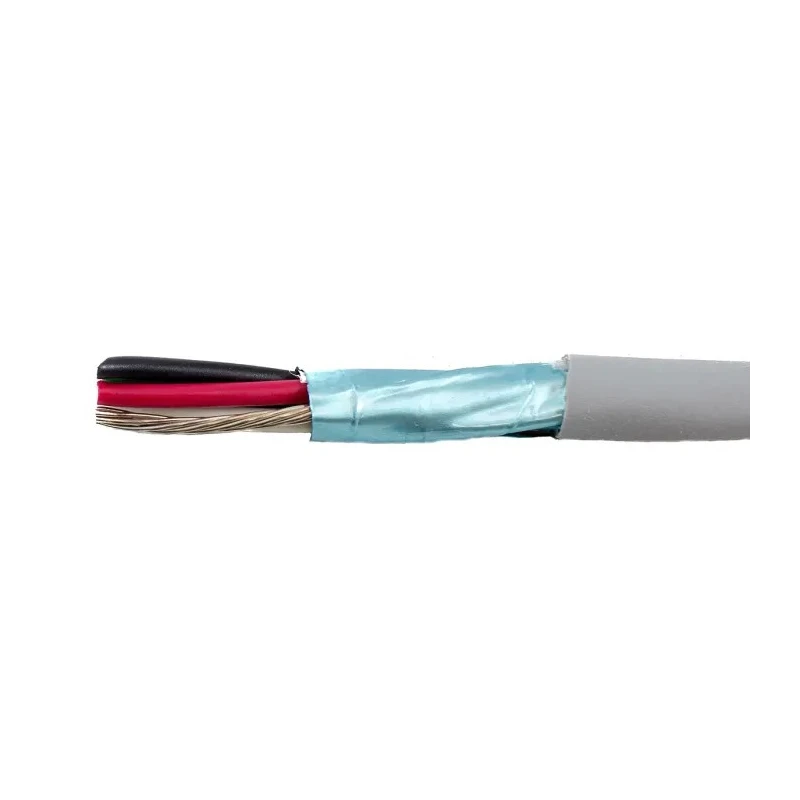

Alpha Wire Ecogen Ecocable Mini Control Cable 4 Cores 0.15mm² 26 AWG Screened 300V 30 m 78114 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78114 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.05mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.12 inch (3.05 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, UL, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 26AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.102mm |
| Size of Strands | 0.102mm |
| Cable CSA | 0.15mm² |
| Conductors | 4, Black, Brown, Red, Orange |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/38 |
Key Features
- The cable length is 30 meters, suitable for a variety of industrial and automation applications.
- The cable is rated for operation between -40°C and +80°C, providing excellent temperature resilience.
- Screened design includes an aluminium/polyester foil shield and tinned copper wire for EMI reduction.
- Constructed with halogen-free materials ensuring safety in case of fire.
- The cable has a nominal outside diameter of 3.05 mm and a jacket thickness of 0.015 inch (0.38 mm).
- Complies with CE, UL, and CSA standards for quality and safety assurance.
- Eco-friendly design featuring 100% recyclability due to mPPE sheath and insulation.
Product Description
Alpha Wire 78114 SL005 Ecogen Ecocable Mini Control Cable is a high-performance screened control cable designed for industrial, automation, and telecommunications applications. It features 4 conductors of tin copper wire, each 0.15mm² in cross-sectional area (26 AWG), offering reliable electrical performance and data transmission at 300 volts.
The cable jacket is made from modified polyphenylene ether (mPPE), providing a durable, lightweight, and environmentally responsible solution. This cable boasts a temperature range from -40°C to +80°C, making it suitable for a broad range of operating environments.
The foil shield construction with an aluminium/polyester layer and tinned copper wire enhances electromagnetic interference (EMI) protection, ensuring signal integrity in sensitive electronic circuits. Its halogen-free materials ensure lower smoke generation and toxicity in the event of fire, contributing to improved safety.
With a 30-meter length and a nominal diameter of 3.05 mm, this cable is compact and easy to route in control panels and machinery. The EcoCable Mini series is designed to be 100% recyclable, supporting sustainable electrical installations without compromising performance.
Applications for this cable include radio transmitters, telecommunication systems, electronic circuits, automation equipment, and compliance with NFPA 79 standards for industrial machinery safety. The cable meets various certifications, including CE, UL AWM 21460, UL VW-1, CSA I A/B FT1, RoHS, REACH, WEEE, and ISO 10993-5.
The cable length is 30 meters, suitable for a variety of industrial and automation applications. The cable is rated for operation between -40°C and +80°C, providing excellent temperature resilience. Screened design includes an aluminium/polyester foil shield and tinned copper wire for EMI reduction.
Constructed with halogen-free materials ensuring safety in case of fire. The cable has a nominal outside diameter of 3.05 mm and a jacket thickness of 0.015 inch (0.38 mm). Complies with CE, UL, and CSA standards for quality and safety assurance.
Eco-friendly design featuring 100% recyclability due to mPPE sheath and insulation. Explore our extensive catalog of Control Cables at EnvMart for reliable and efficient wiring solutions tailored to your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is +80°C.
The nominal outside diameter of this model is 3.05 mm.
This control cable features 4 cores.
The jacket is made from modified polyphenylene ether (mPPE), which is halogen-free.
The cable is rated for operation at 300 volts.
It features a screened design with an aluminium/polyester foil shield for EMI reduction.
The cable length is 30 meters.
The conductors are made of tin copper wire.
It complies with CE, UL, and CSA standards for quality and safety assurance.
The minimum operating temperature is -40°C.
The insulation thickness is 0.007 inches (0.18 mm).
Each core has 19 strands of 0.102 mm size.
