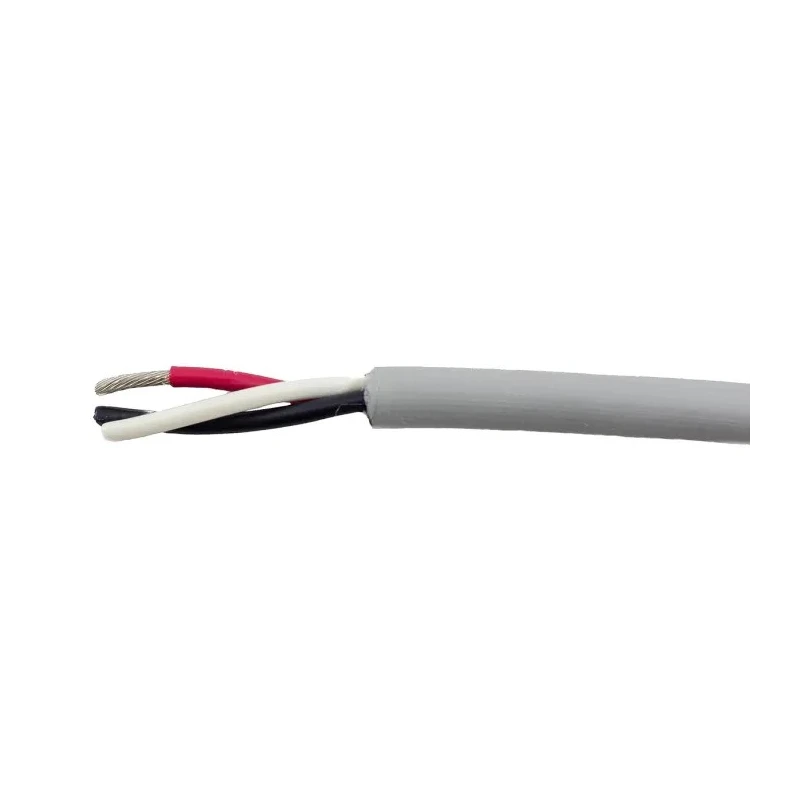

Alpha Wire Ecogen Ecocable Mini 300 V Unshielded Control Cable 3 Cores 0.38mm² 22 AWG 30 m Grey mPPE Jacket 78033 SL005
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78033 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.38mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.133 inch (3.38 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Unscreened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 0.38mm² |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/34 |
Key Features
- The cable operates at 300 V and features tin copper conductors.
- It has a nominal outside diameter of 3.38 mm and is halogen free.
- The temperature range covers -40°C to +80°C for reliable industrial use.
- The jacket and insulation are made of recyclable modified polyphenylene ether (mPPE) material.
- Designed for industrial automation, communication, and control systems.
- The cable contains 3 cores colored black, brown, and red respectively.
- Insulation thickness is 0.18 mm with a jacket thickness of 0.38 mm.
- The conductors are finely stranded with 19 strands of 0.16 mm diameter each.
Product Description
Alpha Wire 78033 SL005 Ecogen Ecocable Mini is a premium 300 V unshielded control cable featuring three 0.38mm² (22 AWG) tin copper conductors. The cable is constructed with a grey modified polyphenylene ether (mPPE) jacket and insulation, providing superior durability and environmental benefits such as being halogen free and 100% recyclable.
This cable has a nominal outside diameter of 3.38 mm and comes in a 30-meter reel length, making it suitable for applications requiring lightweight and space-saving wiring solutions. The operating temperature range from -40°C to +80°C allows it to perform reliably in industrial environments exposed to temperature extremes.
The EcoCable Mini uses finely stranded conductors (19 strands of 0.16 mm diameter) for enhanced flexibility and conductivity. The insulation and jacket thicknesses are optimized to maintain excellent dielectric properties while reducing cable size and weight compared to traditional PVC alternatives.
Certified by UL AWM 21460, UL VW-1, CSA I A/B FT1, and CE, the cable meets rigorous safety standards. It is ideal for use in industrial control, automation, communication circuits, and NFPA 79 compliant machinery safeguarding. The cable’s zero halogen and low outgassing properties make it suitable for environments requiring fire and smoke safety.
The three conductors are color-coded black, brown, and red for easy identification. The cable jacket uses modified polyphenylene ether for excellent chemical and thermal resistance. Suitable for radio transmitters, telecommunication, electronic circuits, and studios.
Designed for industrial automation applications needing light, flexible, and eco-friendly cables. Its halogen-free construction ensures minimal toxic emissions in the event of fire.
Alpha Wire Ecogen Ecocable Mini control cable offers reliable electrical performance with environmental sustainability, making it a preferred choice for electrical and industrial wiring needs. Browse the Electronics & Electricals Control Cable category for matching industrial wiring solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 300 V.
The conductors are made of tin copper wire.
It operates within a temperature range of -40°C to +80°C.
This cable contains 3 cores, colored black, brown, and red respectively.
The nominal outside diameter of the cable is 3.38 mm.
The insulation thickness is 0.18 mm.
The jacket is made of modified polyphenylene ether (mPPE).
Yes, the cable is halogen-free, making it suitable for environments requiring fire and smoke safety.
This cable is certified by UL, CSA, and CE.
The cable comes in a length of 30 meters.
Each conductor is finely stranded with 19 strands of 0.16 mm diameter each.
It is designed for industrial automation, communication, and control systems.
