Bopla Aluminium Enclosure Flanged Filotec Series Silver Silver Lid IP40 24.4mm x 97253100.HMT1 Filotec F 524-100 WL - SET

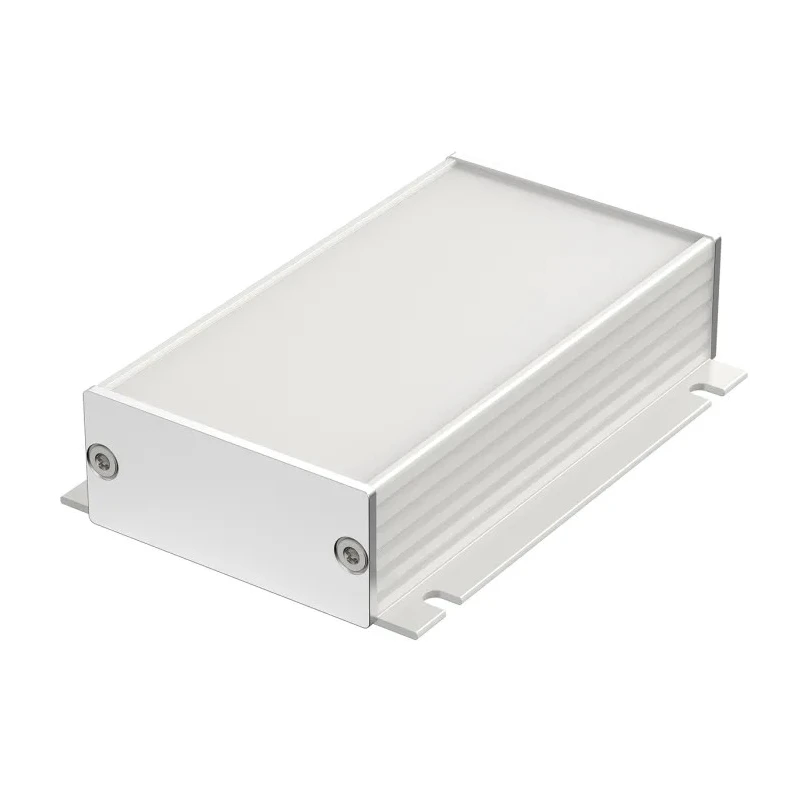

Bopla 97253100.HMT1 Filotec F 524-100 WL - SET is an aluminium profile enclosure from the Filotec series, engineered for general purpose applications to protect and house electronic components. It features a flanged design with a silver anodised finish lid, providing both functionality and aesthetic appeal. The enclosure has external dimensions of 24.4 mm in height, 55.3 mm in width, and 100 mm in length, making it compact yet spacious enough for diverse electronic assemblies.

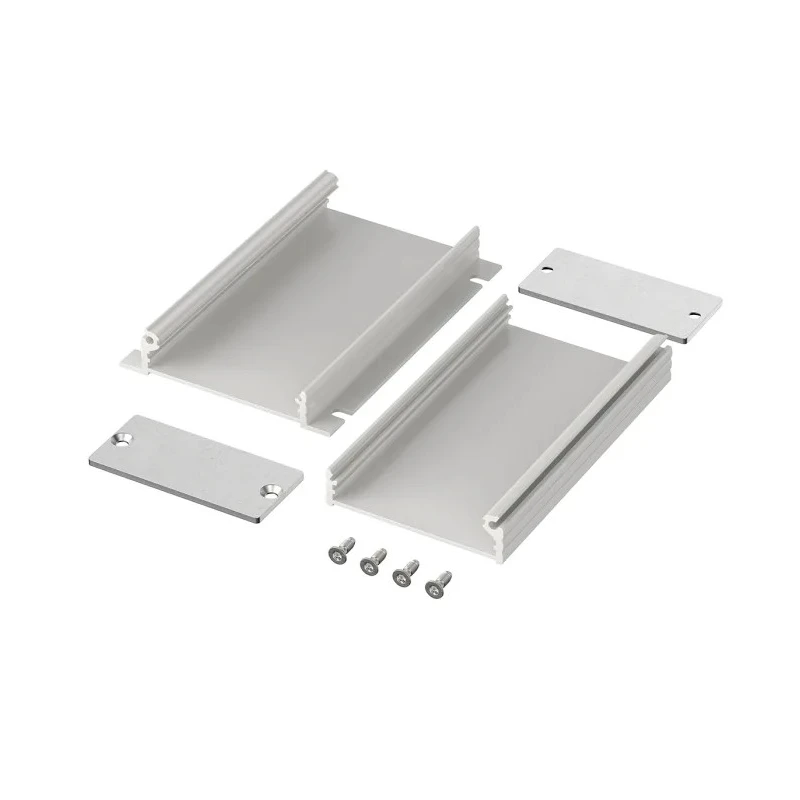

This enclosure is made from high-quality aluminium (AL Mg SI 0.5 anodised), ensuring robustness and longevity in industrial environments. It incorporates grooves for easy mounting of printed circuit boards (PCBs) or mounting panels, supporting a variety of installation requirements. The flanged design facilitates secure fixation via self-tapping screws and flexible mounting options, including the ability to connect half shells together.

The IP40 rating classifies its protection level against intrusion by solid objects such as fingers, but it does not provide protection from liquids, making it suitable for controlled indoor environments. The enclosure includes anodised aluminium end covers with a large usable area for fitting connectors or labelling to enhance identification and functionality.

Bopla Filotec enclosures provide flexibility through multiple variants like membrane keypad areas and cooling fins with moulded-on wall brackets, supporting customizable electronics housing solutions. They comply with the RoHS Directive, ensuring reduced environmental impact and adherence to safety standards.

Typical applications encompass cable and wire management systems, IT and server infrastructure, solar power battery housings, oil and gas production control panels, food and beverage industry instrumentation, and telecommunications equipment. The product is well-suited for industrial automation, manufacturing control systems, laboratory instrumentation, and electrical enclosures.

Constructed from high-quality anodised aluminium for durability and corrosion resistance. Equipped with grooves to hold PCBs or mounting panels securely. Flanged design allows easy mounting and assembly. IP40 rated enclosure protects against solid objects but not water ingress.

Silver anodised lid enhances durability and aesthetic appearance. RoHS compliant manufacturing supports environmental safety. Supports multiple variants for keypad and cooling solutions. Ideal for use in industrial, automation, and electronic equipment housing.
