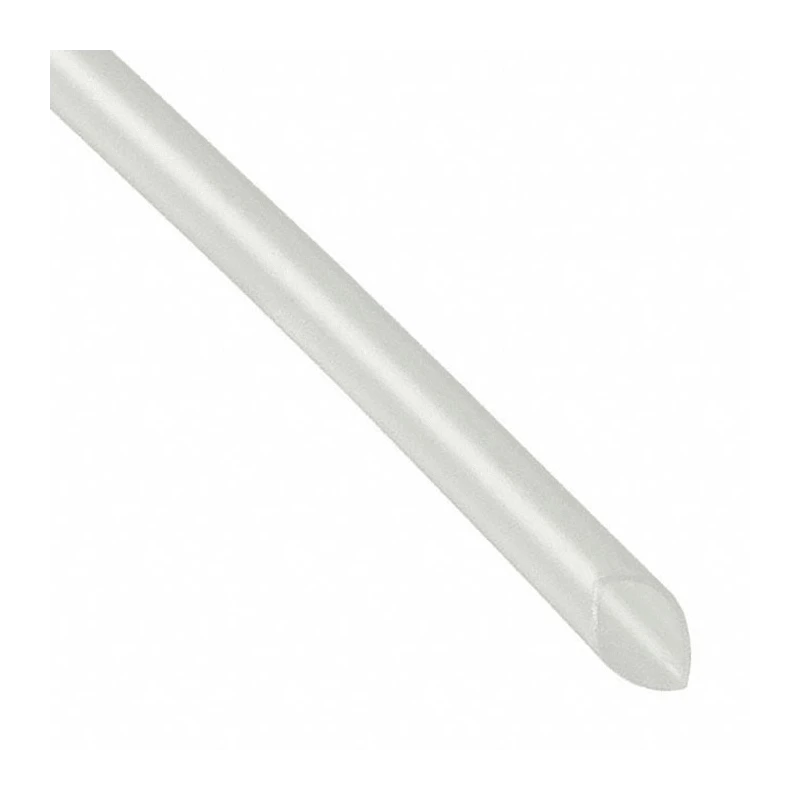

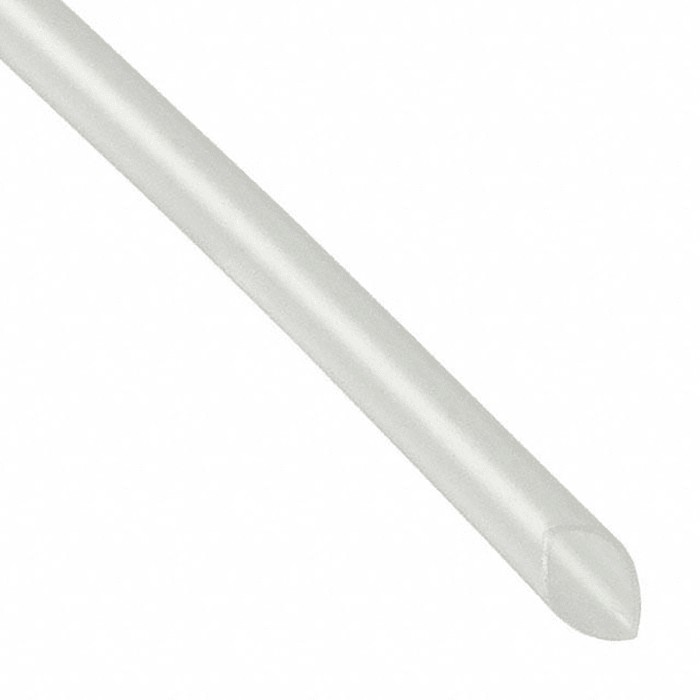

Alpha Wire Heat Shrink Tubing Clear Polyolefin 76.2 mm Sleeve Diameter x 30m Length 2:1 Ratio FIT Shrink F2213IN CL005

Alpha Wire F2213IN CL005 heat shrink tubing is designed to provide mechanical protection and electrical insulation in industrial, automation, and electrical installations. This clear polyolefin tubing features a large sleeve diameter of 76.2 mm and a length of 30 meters, with a 2:1 shrink ratio that ensures a reliable and snug fit after heating.

The tubing is manufactured from cross-linked polyolefin which recovers fully at 121°C, delivering predictable installation behavior suitable for a wide temperature operating range from -55 to 135°C. It has a tensile strength of 1500 psi and elongation of 200%, making it flexible enough to avoid cracking while providing durable mechanical protection.

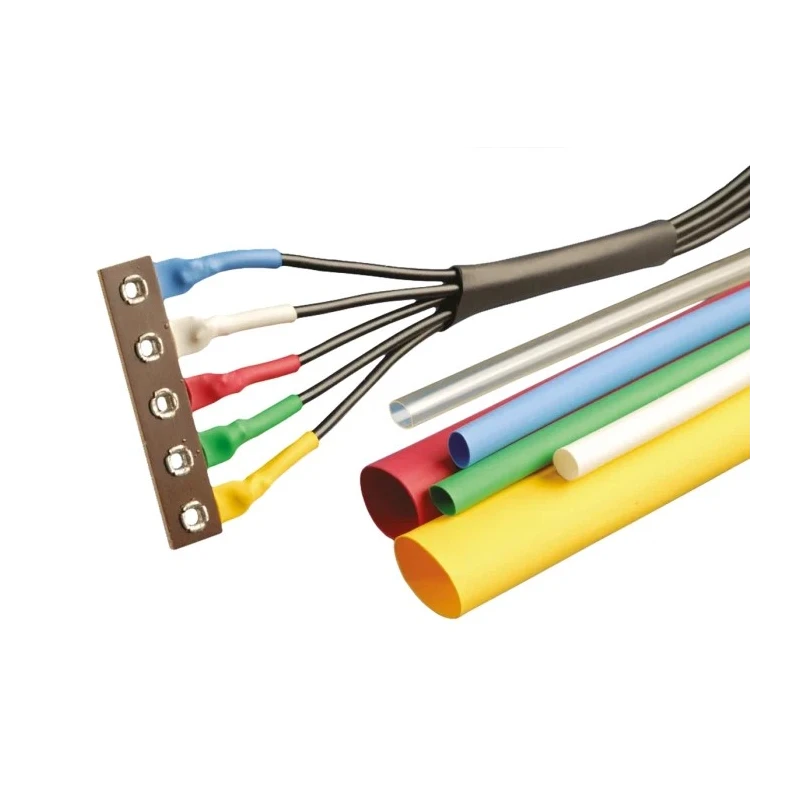

Electrical insulation is enhanced by a dielectric strength of 500 V/mil, and the material meets UL224 and CSA198 approvals for electrical safety. This tubing is ideal for insulating wire harnesses in control cabinets, protecting terminations in power distribution assemblies, and is widely used with sensor and actuator cables in automation systems. The tubing is also well suited for repair and reinforcement of flexing wire joints and sealing splices during electrical maintenance works.

The recovered wall thickness of approximately 0.050 inches provides a continuous protective layer over conductors and joints. Alpha Wire tubing maintains integrity even in extreme cold down to -55°C, passing low-temperature flex testing without cracking. Low vacuum outgassing (CVCM max 0.10%) supports use in vacuum or aerospace test environments requiring minimal volatile emissions.

This product has a shelf life of five years when stored properly between 18 and 35°C, thereby ensuring reliable performance when deployed. The clear color allows visual inspection of underlying components while ensuring electrical isolation and mechanical reinforcement.

The tubing fully recovers at 121°C, providing a close conforming cover. Temperature rating from -55 to 135°C supports application versatility. Tensile strength of 1500 psi offers robust mechanical durability. Elongation of 200% allows for flexible installation without damage.

Dielectric strength of 500 V/mil improves electrical insulation performance. UL224 and CSA198 approvals certify electrical safety compliance. Clear polyolefin material enables easy visual inspection of covered components.

Ideal for use in industrial automation, electrical maintenance, and control cabinet wiring. Low vacuum outgassing suits aerospace and vacuum test environments. Shelf life of five years preserves performance characteristics.
