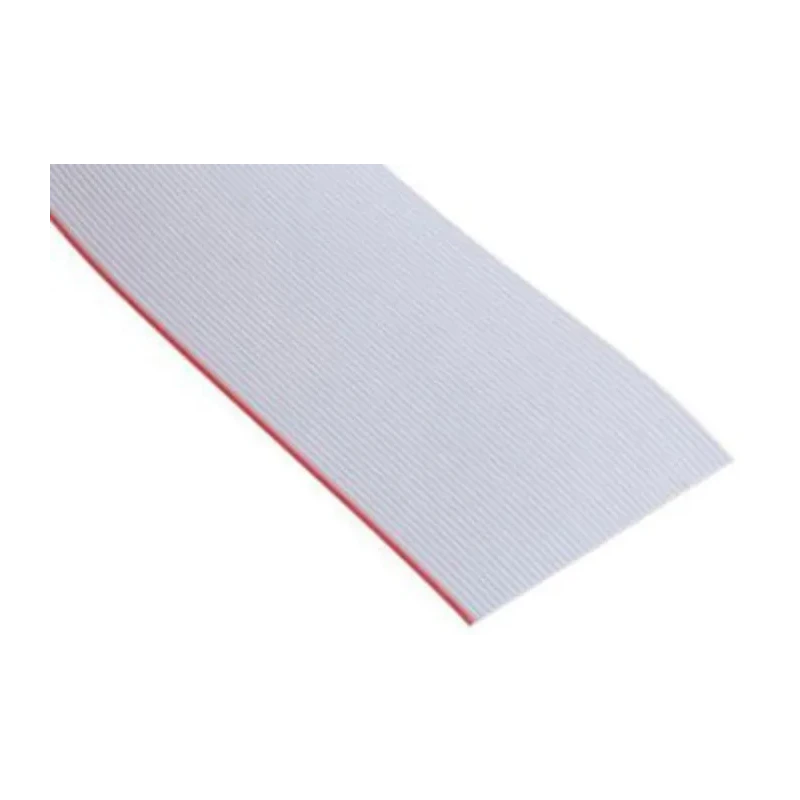

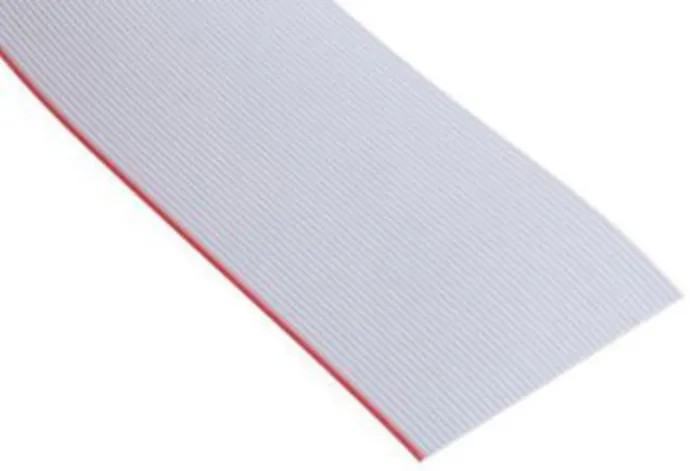

3M 3625 Series Flat Cable Stranded 1 mm Pitch 20 Conductors 31 m Length 300V Grey PVC Jacket 3625/20-30M
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 300V |
| Brand | 3M |
| Model | 3625/20-30M |
| Cable Length | 31m |
| Series | 3625 |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Tin Plated Copper |
| Cable Type | Stranded |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Pitch | 1mm |
| Standards/Approvals | RoHS Compliant, UL |
| Jacket Colour | Grey |
| Fire Behaviour | VW-1 (Usa), FT1 (Canada) |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Round |
| Number of Strands | 7 |
| Core Strands | 7 x 36AWG |
| Size of Strands | 36AWG |
| Number of Conductors | 20 |
| 3M 3625 Series Ribbon Cable, 18-Way, 1mm PitchBrand | 3M |
Key Features
- Stranded tin-plated copper conductors provide flexibility and durability.
- 1 mm pitch allows for high-density connector applications.
- Grey polyvinyl chloride jacket offers abrasion resistance and a neutral appearance.
- Cable length is 31 meters in a continuous flat ribbon format for easy routing.
- Rated for maximum operating temperature of 105°C and minimum -20°C for harsh environments.
- Complies with RoHS, UL approvals and meets VW-1 and FT1 fire behaviour standards.
- Suitable for control cabinet internal signal linking and factory automation harnesses.
- Provides reliable multi-signal routing with 20 conductors.
Product Description
3M 3625/20-30M flat cable is a stranded conductor flat ribbon cable designed for industrial and electronic systems requiring low-profile, compact multi-conductor routing. The cable consists of 20 tin-plated copper conductors, each formed by seven strands of 36AWG wire, arranged with a 1 mm pitch within a grey polyvinyl chloride jacket. This construction provides outstanding flexibility for internal wiring in automation, electrical assemblies, and equipment harnesses.
Rated for a voltage of up to 300V, the cable insulation tolerates temperatures up to 105°C, ensuring reliability in elevated temperature environments. The cable jacket is abrasion resistant, which makes it suitable for rigorous industrial settings. Fire safety is addressed with VW-1 and FT1 certifications, aligning with safety standards for wiring in control panels and machine installations.
This flat cable is supplied in a continuous 31 meter length, facilitating long internal wiring runs without splicing. Its stranded conductor design aids flexibility, making it ideal for repeated flexing during installation and secure termination compatible with stranded connectors.
Stranded tin plated copper conductors ensure flexibility and durability. 1 mm pitch supports compact, high-density connector interfaces. Grey PVC jacket offers abrasion resistance and neutral color coding. Complies with RoHS and UL standards for industrial safety.
Wide operating temperature range (-20°C to 105°C) for reliable performance. Meets fire behaviour standards VW-1 (USA) and FT1 (Canada) for safety. Perfect for internal control cabinet wiring and factory automation harnesses.
Continuous 31m length ribbon cable simplifies installation in industrial systems.
This 3M flat cable provides a robust and flexible solution for machine control panels, test rigs, and electronic assembly fixtures. Its technical benefits and compliance with industrial standards make it an excellent choice for complex interconnect wiring in industrial, electrical, and manufacturing environments.
Explore more industrial cables like 3M 3625 Series Ribbon Cable with 18 conductors and 1 mm pitch in our product assortment.
Explore more products in our Wire to Board Cable category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flat cable is rated for a maximum voltage of 300V.
This model has a continuous length of 31 meters.
It features stranded tin-plated copper conductors, which provide flexibility and durability.
The conductors are arranged with a pitch of 1 mm, allowing for high-density connector applications.
The cable operates within a temperature range of -20°C to 105°C.
The jacket is made from grey polyvinyl chloride (PVC), which offers abrasion resistance.
It complies with RoHS and UL standards, and meets VW-1 and FT1 fire behaviour standards.
This flat cable contains 20 conductors.
The strands are 36 AWG in size.
Yes, it is suitable for control cabinet internal signal linking and factory automation harnesses.
Each conductor is formed by seven strands of 36 AWG wire.
It is a stranded conductor flat ribbon cable designed for industrial and electronic systems.
