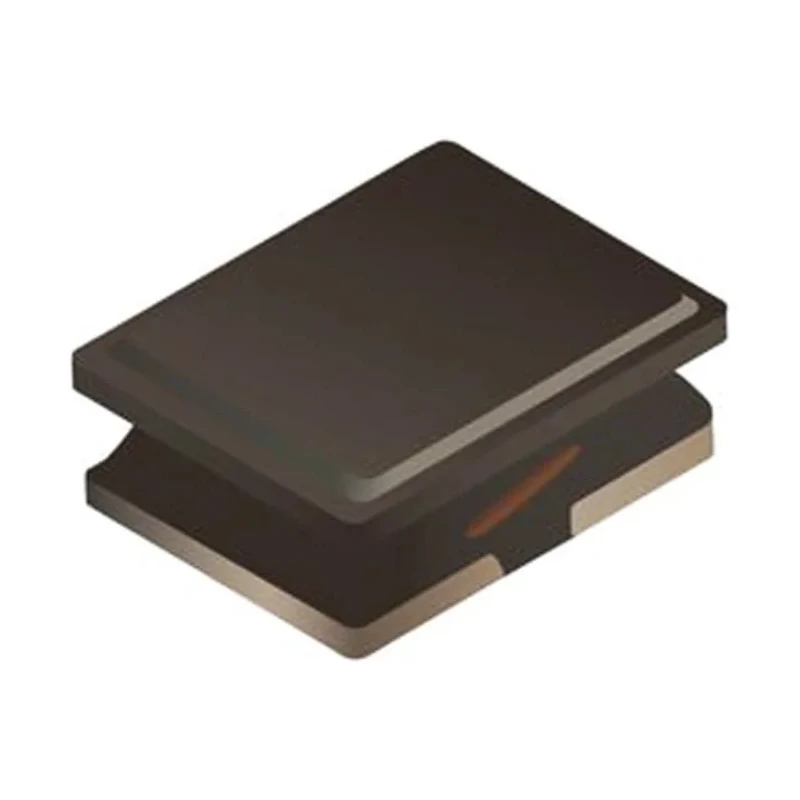

Bourns Shielded Wirewound Surface Mount Inductor 2.2 μH ±20% 2.3 A Idc Ferrite Core 2512 Package SRN2512
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 2.5mm |
| Model | SRN2512 |
| Depth | 2mm |
| Packaging | Reel |
| Series | SRN2512 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance Range | 0.24 to 2.2 μH |
| Inductance | 2.2μH |
| Low Profile | 1.2 mm |
| Standards/Approvals | RoHS |
| Package/Case | 2512 |
| Maximum DC Current | 2.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 102mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 80MHz |
| Minimum Quality Factor | 11 |
| Inductor Construction | Wirewound |
Key Features
- The inductor has a maximum DC resistance of 102 milliohms to ensure low power loss.
- It operates reliably between -55°C and 125°C temperature range.
- The component has a low profile height of 1.2 mm and depth of 2 mm suitable for compact PCB layouts.
- The semi-magnetically shielded design reduces electromagnetic interference in sensitive circuits.
- Termination is via soldering, facilitating standard surface mount assembly.
- RoHS compliant, making it suitable for environmentally conscious manufacturing.
- The maximum self-resonant frequency of 80 MHz enables effective high-frequency applications.
- Its inductance range spans from 0.24 to 2.2 μH, supporting diverse DC/DC converter needs.
Product Description
Bourns SRN2512 shielded wirewound surface mount inductor is a miniature, high-performance power inductor designed for DC/DC converters, digital video cameras, notebooks, HDDs, cellphones, televisions, and LCD displays. It features a ferrite core and a package size of 2512, delivering 2.2 μH inductance with ±20% tolerance.
Its semi-magnetically shielded construction helps minimize electromagnetic interference, enhancing overall device reliability. This inductor supports a maximum DC current of 2.3 A and has a maximum DC resistance of 102 milliohms, ensuring efficient power management and low heat dissipation.
The component has a low profile of 1.2 mm height and 2 mm depth, saving valuable PCB real estate for compact electronic designs. It operates reliably in a broad temperature range from -55°C to 125°C, providing stability in harsh environments. The termination is solder-style, allowing easy surface mount technology (SMT) assembly.
This RoHS-compliant inductor features a maximum self-resonant frequency of 80 MHz and a minimum quality factor of 11, indicating suitability for high-frequency circuits. The inductance range varies from 0.24 μH to 2.2 μH, and its wirewound construction provides stable, consistent performance across applications.
The inductor has a maximum DC resistance of 102 milliohms to ensure low power loss. It operates reliably between -55°C and 125°C temperature range. The component has a low profile height of 1.2 mm and depth of 2 mm suitable for compact PCB layouts.
The semi-magnetically shielded design reduces electromagnetic interference in sensitive circuits. Termination is via soldering, facilitating standard surface mount assembly. RoHS compliant, making it suitable for environmentally conscious manufacturing.
The maximum self-resonant frequency of 80 MHz enables effective high-frequency applications. Its inductance range spans from 0.24 to 2.2 μH, supporting diverse DC/DC converter needs. The inductor construction is wirewound, providing stable performance under varying loads.
Pin count is 2, simplifying connectivity on circuit boards.
This surface mount inductor is ideal for use in industrial, consumer electronics, telecommunications, and automotive applications requiring efficient power conversion and minimal electromagnetic interference. Explore more Surface Mount Inductors and passive components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 2.2 μH with a tolerance of ±20%.
It supports a maximum DC current of 2.3 A.
The maximum DC resistance is 102 milliohms, ensuring low power loss during operation.
This model operates reliably between -55°C and 125°C.
The inductor comes in a 2512 package size, with a height of 1.2 mm and a depth of 2 mm.
It has a maximum self-resonant frequency of 80 MHz, making it suitable for high-frequency applications.
The termination style is solder, facilitating standard surface mount assembly.
It features a wirewound construction, which provides stable performance across varying loads.
Yes, it is RoHS compliant, suitable for environmentally conscious manufacturing.
The minimum quality factor is 11, indicating its suitability for efficient power management.
