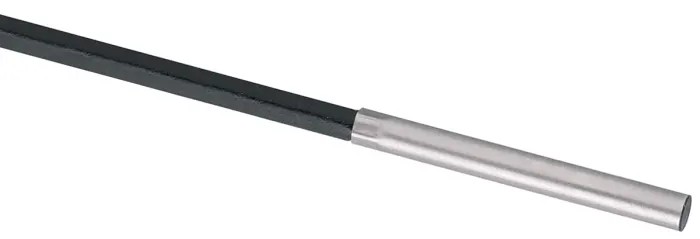

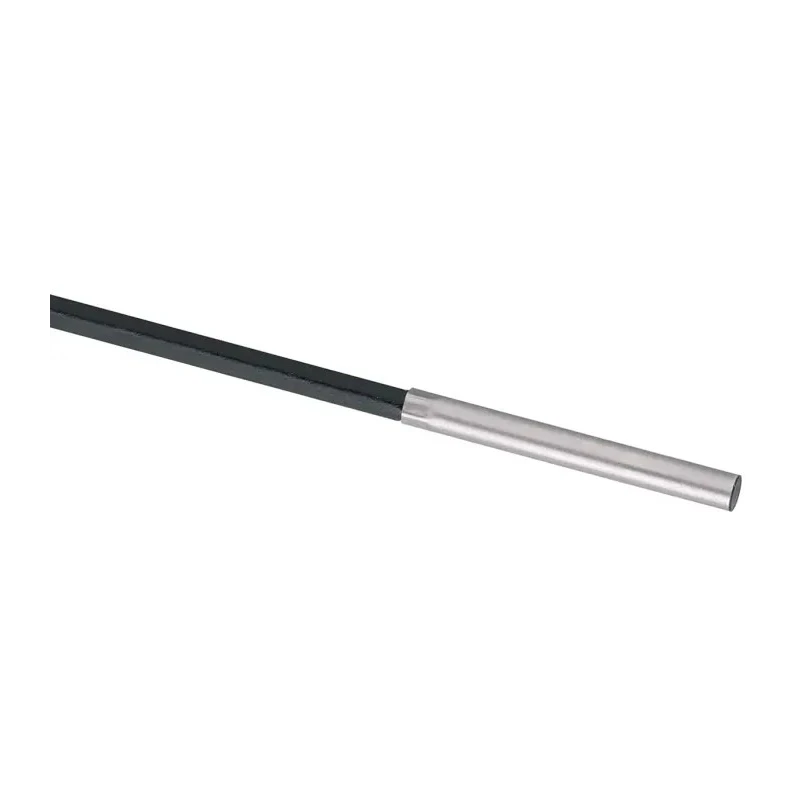

ifm electronic Barrel Inductive Proximity Sensor 27mm Length 4mm Width PNP Output 30V DC 100mA IZ5047
Specifications
| Country of Origin | China |
|---|---|
| Brand | ifm electronic |
| Length | 27mm |
| Model | IZ5047 |
| IP Rating | IP67 |
| Width | 4mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel, Polyoxymethylene |
| Output type | PNP |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Cable |
| Body Style | Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1.8kHz |
| Standards/Approvals | UL, EN |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 1.5mm |
Key Features
- Barrel body style with 27mm length and 4mm width for compact installation.
- PNP output type suitable for industrial automation applications.
- Maximum operating voltage of 30V DC with up to 100mA switching current.
- Unshielded design with maximum detection distance of 1.5mm metal objects.
- IP67 rated housing made of stainless steel and polyoxymethylene for dust and water resistance.
- Wide operating temperature range from -25°C to 80°C for harsh environments.
- High switching frequency of up to 1.8kHz enabling fast response.
- Certified to UL and EN standards ensuring compliance and safety.
Product Description
ifm electronic IZ5047 Barrel Inductive Proximity Sensor is engineered for high precision detection of metal objects without physical contact, enhancing durability and reliability in industrial environments. The sensor's barrel style design with 27mm length and 4mm width allows easy integration in tight spaces.
This sensor features a PNP output and operates safely within a 30V DC range delivering up to 100mA switching current, making it compatible with a wide array of control systems. The unshielded sensor has a maximum detection range of 1.5mm, making it ideal for applications requiring close proximity metal sensing.
The sensor housing is constructed from robust stainless steel combined with polyoxymethylene, offering excellent resistance to dust and moisture with an IP67 rating, suitable for harsh industrial conditions. It supports a broad operating temperature spectrum from -25°C to 80°C, ensuring stable performance in varying environments.
It achieves a fast switching frequency of 1.8kHz, enabling quick and accurate sensing responses in automation processes. The sensor complies with UL and EN standards for quality and safety assurance.
The non-flush mounting option provides installation flexibility in diverse industrial setups. Typical applications include industrial automation, manufacturing process control, material handling, and robotics where reliable metal detection is critical.
Barrel body style with 27mm length and 4mm width for compact installation. PNP output type suitable for industrial automation applications. Maximum operating voltage of 30V DC with up to 100mA switching current. Unshielded design with maximum detection distance of 1.5mm metal objects.
IP67 rated housing made of stainless steel and polyoxymethylene for dust and water resistance. Wide operating temperature range from -25°C to 80°C for harsh environments. High switching frequency of up to 1.8kHz enabling fast response.
Certified to UL and EN standards ensuring compliance and safety. Non-flush mount type for versatile sensor placement. Suitable for use in industrial, automation, and manufacturing sensor systems. Explore a range of high-quality sensors and automation components at EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 1.5mm for metal objects.
This sensor operates at a maximum voltage of 30V DC.
It can handle a switching current of up to 100mA.
This model is designed to detect metal objects.
The housing is rated IP67, providing protection against dust and water.
The sensor has a length of 27mm and a width of 4mm.
It operates within a temperature range of -25°C to 80°C.
This model features a PNP output type, suitable for various industrial applications.
The maximum switching frequency is up to 1.8kHz, allowing for quick response times.
The housing is made from stainless steel and polyoxymethylene, ensuring durability.
This model supports non-flush mounting, providing flexibility in installation.
It is certified to UL and EN standards, ensuring compliance and safety.
