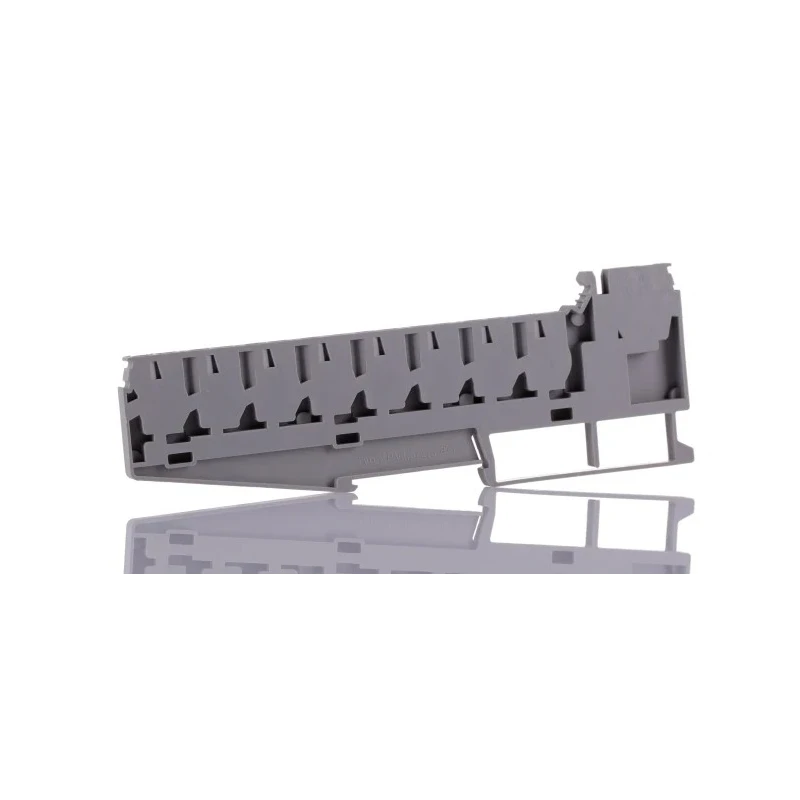

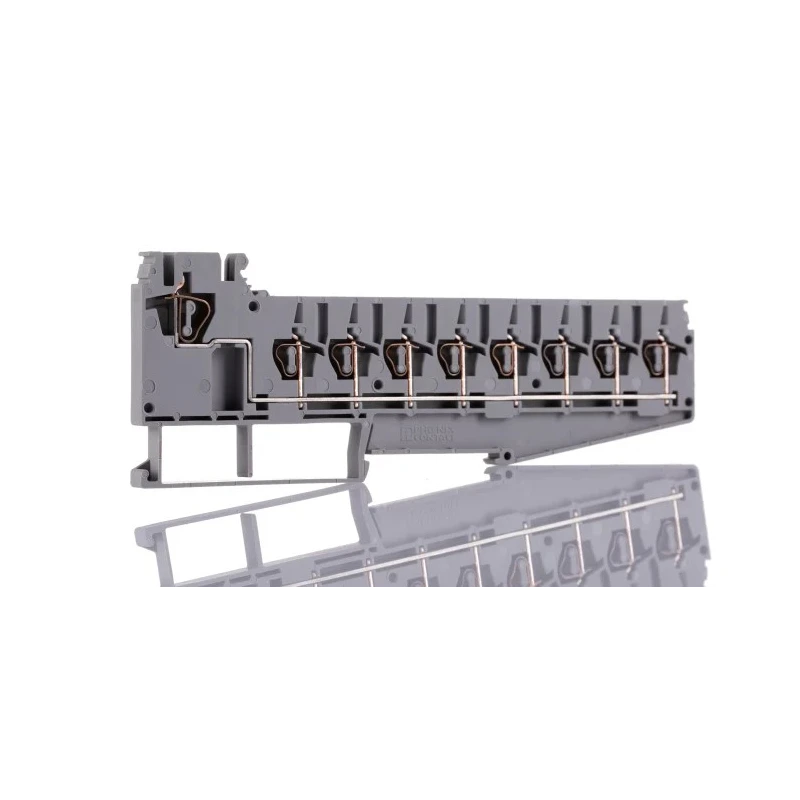

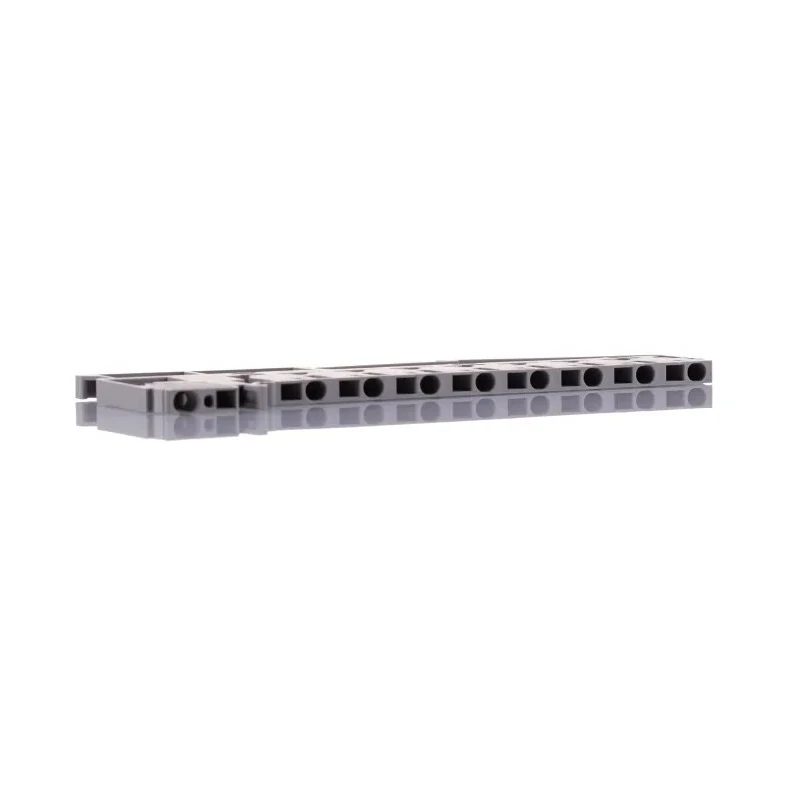

Phoenix Contact DIN Rail Terminal Block Grey, 3-Level, Spring Cage, 0.14mm² to 4 mm², 24A Current, 500V Voltage 3031047
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3031047 |
| Series | ZPV 1.5 |
| Termination Type | Spring Cage |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 3 |
| Sub Type | ZPV 1.5 |
| Minimum Operating Temperature | -60°C |
| Pitch | 5.2mm |
| Standards/Approvals | cULus Recognized, EAC |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.14, 4mm² |
| Terminal Block Current | 24A |
Key Features
- Durable grey PA housing resistant to impact and abrasion.
- Supports wire sizes from 0.14mm² to 4 mm² for versatile applications.
- Rated for 24A current and 500V voltage in low-voltage installations.
- Allows easy linking with other terminal blocks via an open side panel for flexible wiring layouts.
- Wide operating temperature range from -60°C to 105°C suits harsh environments.
- Meets cULus and EAC standards for reliable use in industrial and automation systems.
- Compact pitch of 5.2mm, making it suitable for space-constrained DIN rail setups.
- Spring cage termination provides secure and maintenance-friendly connections.
Product Description
Phoenix Contact 3031047 DIN Rail Terminal Block is designed for industrial, manufacturing, and automation applications requiring efficient power distribution on low-voltage DIN rails. Its compact grey PA housing provides impact and abrasion resistance, ensuring durability in demanding environments.
This 3-level terminal block accommodates wire sizes ranging from 0.14mm² to 4 mm² and supports up to 24A current at 500V voltage, making it ideal for multi-circuit electrical installations. The spring cage termination type guarantees reliable and maintenance-free connections.
The block's double-row configuration and compact 5.2mm pitch reduce DIN rail space usage, perfect for equipment with limited installation area. The open side panel facilitates easy linking to additional blocks, increasing wiring flexibility and system scalability.
Operating temperature spans -60°C to 105°C, allowing use in extreme conditions from cold storage to heated machinery zones. The product complies with cULus and EAC certifications, assuring safety and quality standards compliance.
Durable PA housing resists industrial wear and tear. Wire range 0.14mm² to 4 mm² supports diverse wiring needs. 24A current rating enables high-current applications. Compact 5.2mm pitch fits tight DIN rail spaces. Spring cage termination eases installation and maintenance.
Wide temperature range for versatile environments. Open side panel allows modular system extension. Certified to cULus and EAC standards.
This terminal block is best suited for electrical panels, industrial machinery, automation controls, and manufacturing equipment requiring neat, safe, and flexible wiring solutions. Explore EnvMart's Electronics Components category for related DIN Rail Terminal Blocks and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a maximum current rating of 24A.
The voltage rating for this terminal block is 500V.
It can accommodate wire sizes ranging from 0.14mm² to 4 mm².
The pitch of this terminal block is 5.2mm, making it suitable for compact installations.
The operating temperature range is from -60°C to 105°C, allowing use in extreme environments.
This model uses spring cage termination, which provides secure and maintenance-friendly connections.
It complies with cULus and EAC standards, ensuring safety and quality.
This terminal block features a 3-level design.
The country of origin for this terminal block is India.
It is suitable for electrical panels, industrial machinery, automation controls, and manufacturing equipment.
The minimum wire size is 26 AWG and the maximum wire size is 12 AWG.
Yes, it allows easy linking with other terminal blocks via an open side panel for flexible wiring layouts.
