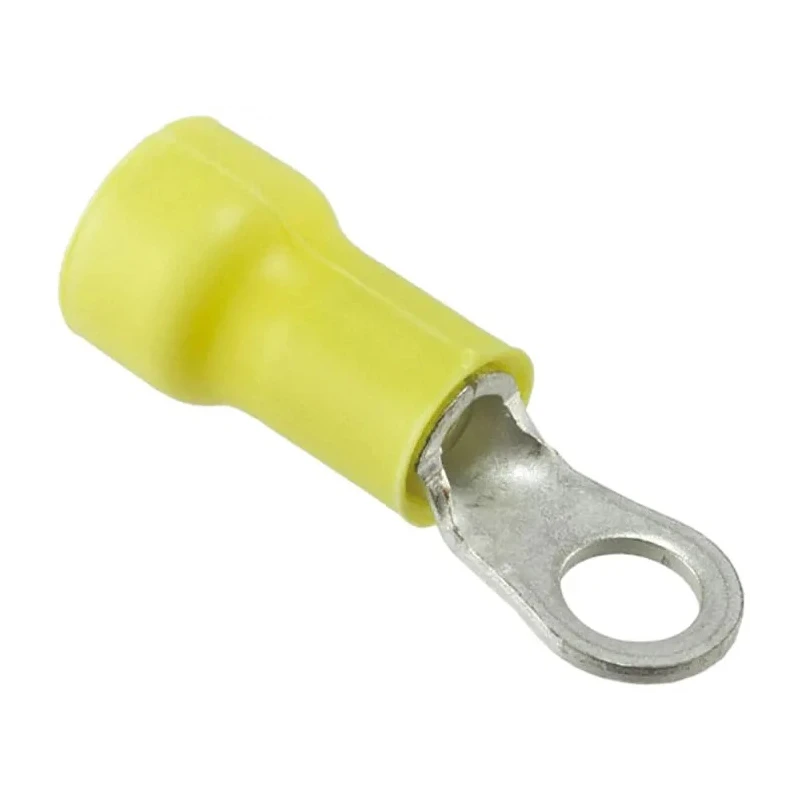

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 330518
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 1.07mm |
| Model | 330518 |
| Insulation | Insulated |
| Overall Length | 26.72mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper for efficient electrical contact.
- Vinyl insulation sleeve rated at 94V-0 for high dielectric strength.
- Ring terminal has an outer diameter of 7.92mm and inner diameter of 5mm.
- Suitable for wire sizes ranging from 2.6 mm² to 6.6 mm².
- Tin-plated contact surface enhances corrosion resistance and conductivity.
- Overall length measures 26.72mm for compact connection applications.
- Rated for maximum operating temperature of 105°C.
- Color-coded yellow for easy wire gauge identification.
Product Description
TE Connectivity 330518 PLASTI-GRIP insulated ring terminal is engineered for reliable and safe electrical connections in electronic and industrial applications. This terminal features a high conductivity copper contact with tin plating to resist corrosion and maintain excellent conductivity.
The ring terminal includes a vinyl insulation sleeve rated at 94V-0, providing high dielectric strength and ensuring electrical safety during operation. The insulation is color-coded yellow, corresponding to wire sizes between 12 AWG and 10 AWG (2.6 mm² to 6.6 mm²).
With an outer ring diameter of 7.92mm and an inner ring diameter of 5mm to fit an M5 stud, the overall length of 26.72mm makes it suitable for tight spaces. The contact area is serrated to improve tensile strength and ensure the wire remains secure after crimping. The funnel entry in the wire barrel facilitates easy wire insertion, enhancing assembly efficiency.
This Ring Terminal is rated for a maximum operating temperature of 105°C, making it suitable for a variety of industrial, electronic, and electrical maintenance uses, including power connectors and wire terminal applications.
Constructed with high conductivity copper for efficient electrical contact. Vinyl insulation sleeve rated at 94V-0 for high dielectric strength. Outer ring diameter: 7.92mm and inner ring diameter: 5mm fits M5 stud. Compatible with wire sizes 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²).
Tin plating provides corrosion resistance and reliable conductivity. Overall length of 26.72mm for compact terminal connections. Maximum operating temperature rating of 105°C. Yellow color insulation for wire gauge identification.
Serrated inner barrel enhances tensile strength after crimping. Funnel entry wire barrel enables easier stripped wire insertion.
This product is ideal for use in industrial electronics manufacturing, electrical maintenance, and power connector assembly where reliable and durable wire terminations are required. TE Connectivity's PLASTI-GRIP terminals are widely recognized in industrial and electrical sectors for their performance and durability. Explore more wire terminals and splices in EnvMart’s comprehensive product selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
The maximum operating temperature rating for this terminal is 105°C.
The outer diameter of the ring terminal is 7.92 mm, while the inner diameter is 5 mm. The overall length measures 26.72 mm.
The contact material is high conductivity copper, which is tin-plated to enhance corrosion resistance and conductivity.
It features a vinyl insulation sleeve rated at 94V-0, providing high dielectric strength for electrical safety.
This terminal is designed to fit an M5 stud size.
The funnel entry design of the wire barrel enables easier insertion of stripped wire, enhancing assembly efficiency.
The thickness of the insulation is 1.07 mm.
This terminal is part of the PLASTI-GRIP series by TE Connectivity.
The insulation is color-coded yellow for easy identification of the wire gauge.
The country of origin for this terminal is the United States.
The contact area of this terminal has a serrated inner barrel, which improves tensile strength and ensures the wire remains secure after crimping.
