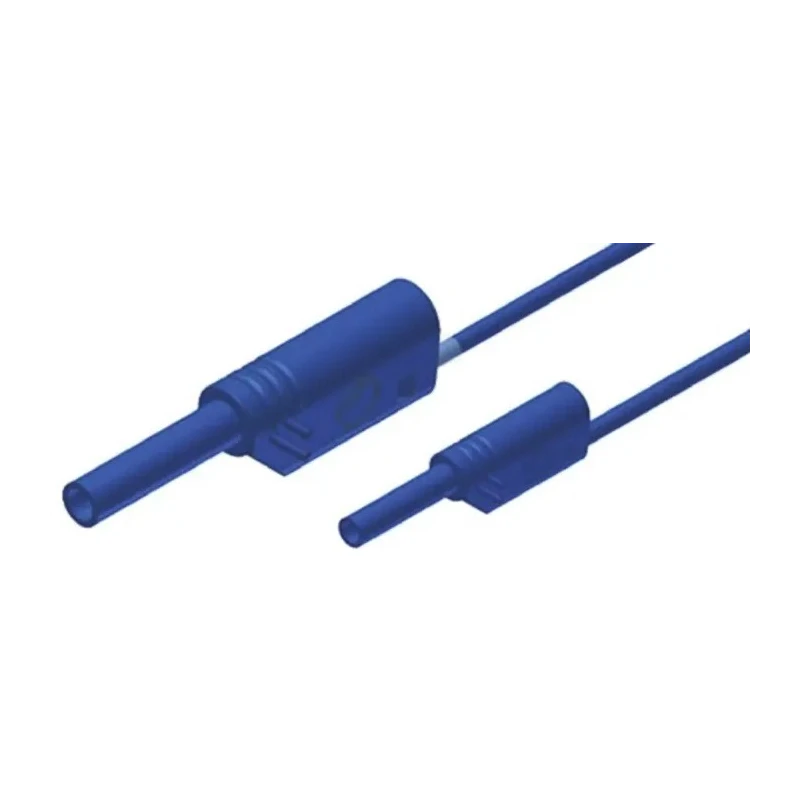

Hirschmann Test & Measurement Connector Test Lead 10A, 1000 V AC/DC, Blue, 1m Lead Length 975163102

Free Delivery in India | Lowest Global Shipping Charges

Hirschmann Test & Measurement Connector Test Lead 10A, 1000 V AC/DC, Blue, 1m Lead Length 975163102

Name: Hirschmann Test & Measurement Connector Test Lead 10A, 1000 V AC/DC, Blue, 1m Lead Length 975163102
Brand: Hirschmann Test & Measurement
SKU: 131559
Price: 14.39 USD
Availability: InStock



Category Test Leads Brand Hirschmann Test & Measurement Condition New

Specifications

Country of Origin	Germany
Voltage	1000, 1000V ac
Brand	Hirschmann Test & Measurement
Colour	Blue
Current	10A
Contact Material	Beryllium Copper
Maximum Operating Temperature	70°C
Insulation Material	Polyvinyl Chloride
Minimum Operating Temperature	-15°C
Lead Length	1m
Standards/Approvals	RoHS
Safety Category Level	CAT II
Connector Gender A	Male
Connector Orientation A	Straight
Test Lead Type	4 mm Connector Test Lead

Key Features

Rated for continuous current of 10A and a voltage of 1000V AC and DC.
Constructed with beryllium copper contacts for high conductivity and durability.
Insulated with shatter-proof polyvinyl chloride material for safety and flexibility.
Features CAT II safety level, compliant with RoHS standards.
Equipped with 4mm male connectors at both ends, both shrouded and oriented straight.
Lead length measures 1 meter, offering versatile connectivity options.
Operates reliably between -15°C and +70°C temperature range.
Connector pins are gold plated and spring loaded for superior contact quality.

Product Description

Hirschmann Test & Measurement 975163102 Connector Test Lead is designed for reliable electrical testing applications requiring a maximum current of 10A and operating voltages up to 1000V AC and DC. Its 1 meter length blue lead is crafted with beryllium copper contacts, providing excellent conductivity and resistance to corrosion. The polyvinyl chloride insulation material imparts flexibility while ensuring electrical safety within a broad temperature range from -15°C up to 70°C.

This test lead features straight 4 mm male connectors on both ends, each with shrouded insulation sleeves that are shatter-proof to withstand demanding industrial usage. The gold-plated spring-loaded pins assure consistent connection quality and low contact resistance of 21 milliohms. These leads meet CAT II safety classification, suitable for measurements in circuits with limited transient overvoltages, and are RoHS compliant, adhering to environmental and safety standards.

Manufactured in Germany, this Hirschmann product offers durability and compatibility with their 2mm and 4mm safety connector ranges, making it an essential tool for electrical and electronic testing in industries such as manufacturing, laboratories, maintenance, and quality assurance.

Rated 10A current and 1000V AC/DC voltage capacity. Beryllium copper contact material ensures high conductivity and durability. Polyvinyl chloride insulation with shatter proof sleeves enhances safety and flexibility. CAT II safety rating ideal for standard electrical measurements.

Gold-plated spring loaded pins provide low contact resistance and reliable connection. 1 meter long flexible blue lead suitable for versatile testing setups. Operating temperature range from -15°C to 70°C for varied environmental conditions.

Compliant with RoHS standards for environmental safety. Compatible with Hirschmann 2mm and 4mm safety plug and socket ranges. German manufacturing quality ensures precision engineering and reliability.

This test lead is perfect for professionals in electrical testing, measurement, and maintenance, offering a dependable solution for connecting test instruments safely in industrial, laboratory, HVAC, and manufacturing environments. Browse more from Hirschmann and related Test Leads in EnvMart’s Electrical Test & Measurement category.
