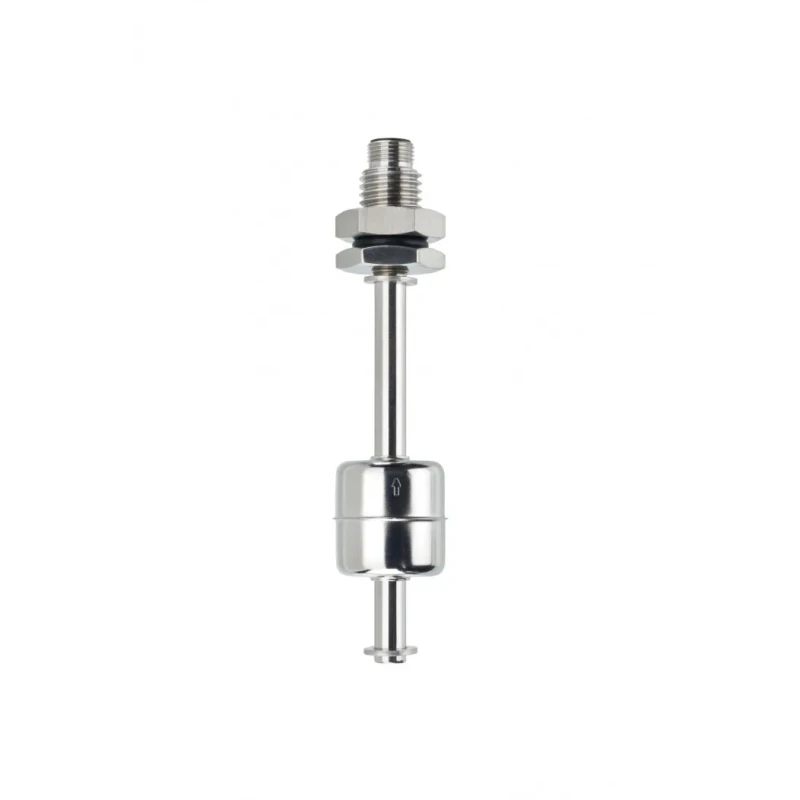

Cynergy3 Series Vertical Nitrile Rubber (NBR) Float Switch, 2 NO, 250 V AC Max, 120 V DC Max SSF67A50A200PM12

Cynergy3 SSF67A50A200PM12 vertical nitrile rubber (NBR) float switch is engineered for precise liquid level monitoring and control in industrial tanks. It features a durable stainless steel housing designed to resist corrosion, ensuring long-term performance in harsh environments commonly encountered in industrial and manufacturing facilities.

The unit supports a maximum pressure rating of 10 bar, making it suitable for heavy-duty fluid control applications. Its dual switching capability with 2 normally open (NO) outputs enables simultaneous detection of high and low liquid levels, which facilitates automated pump or valve control to maintain desired liquid levels efficiently.

Constructed with a nitrile rubber gasket, the float switch prevents leakage and enhances sealing reliability. The device operates over a wide temperature range of -20°C to 135°C, allowing operation in varied ambient and process conditions.

Electrical ratings include maximum voltages of 250 V AC and 120 V DC, with a maximum switching current of 600 mA, making it an energy-efficient choice for control systems. The M12 4-pin connector offers an IP67 ingress protection rating against dust ingress and water immersion up to 1 meter for 30 minutes, ensuring dependable connectivity in demanding environments.

This device is designed specifically for vertical mounting either on the top or bottom sides of tanks where conventional side mounting is not feasible. It works reliably with liquids having a minimum specific gravity of 0.8, including fuels like kerosene and industrial solvents such as alcohol.

Commonly used in oil and gas, chemical processing, and industrial automation sectors, this float switch provides a robust solution for liquid level sensing and control. Corrosion-resistant stainless steel body for enhanced durability.

Nitrile rubber gasket for effective sealing and leakage prevention. Dual 2 NO switch outputs accommodate high and low level detection. 10 bar maximum pressure rating for heavy-duty fluid applications. Wide operating temperature range from -20°C to 135°C.

IP67 rated M12 4-pin connector for reliable environmental protection. Vertical mounting capability for limited side-access tank configurations. Compatible with fluids of minimum specific gravity 0.8, such as kerosene and alcohol.
