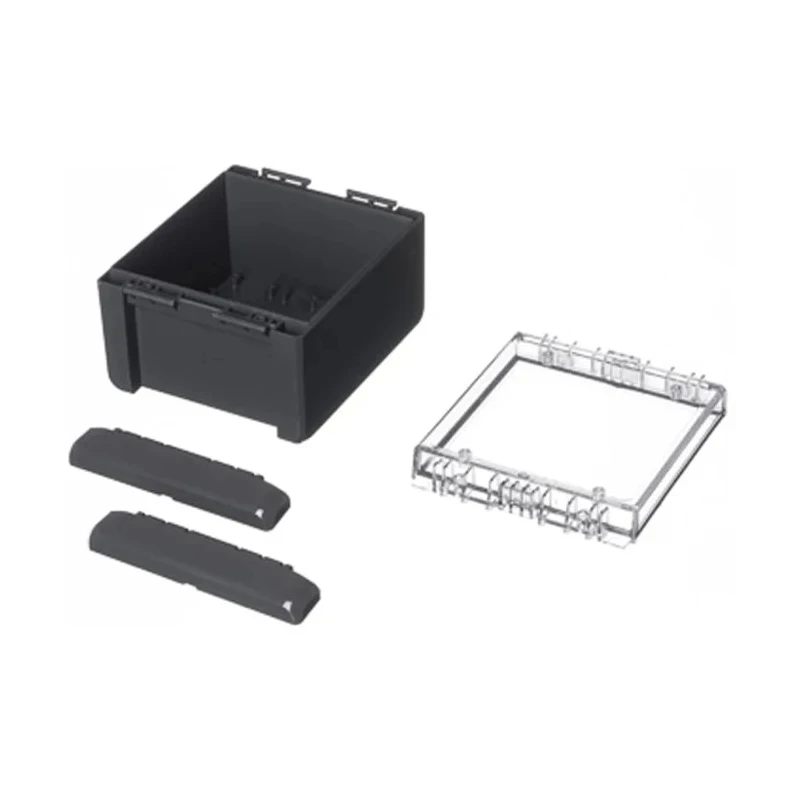

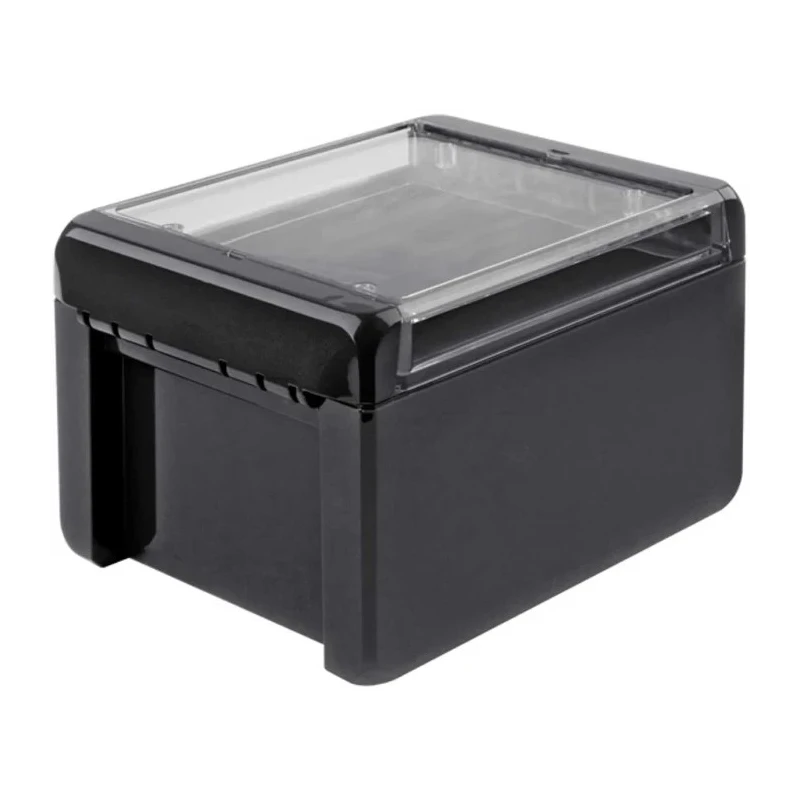

Bopla Bocube Series Graphite Grey Transparent Lid Polycarbonate Enclosure IP68 IP66 IK07 90 96023234 B 141309 PC-V0-G-7024

Bopla 96023234 B 141309 PC-V0-G-7024 is a Bocube series polycarbonate enclosure featuring a graphite grey body with a transparent lid, measuring 90 mm height, 151 mm length, and 125 mm width. It is designed for robust protection of electronics and switchgear with IP66 and IP68 ingress protection ratings and an IK07 impact resistance level, ideal for industrial and office environments where dustproof and waterproof enclosures are essential.

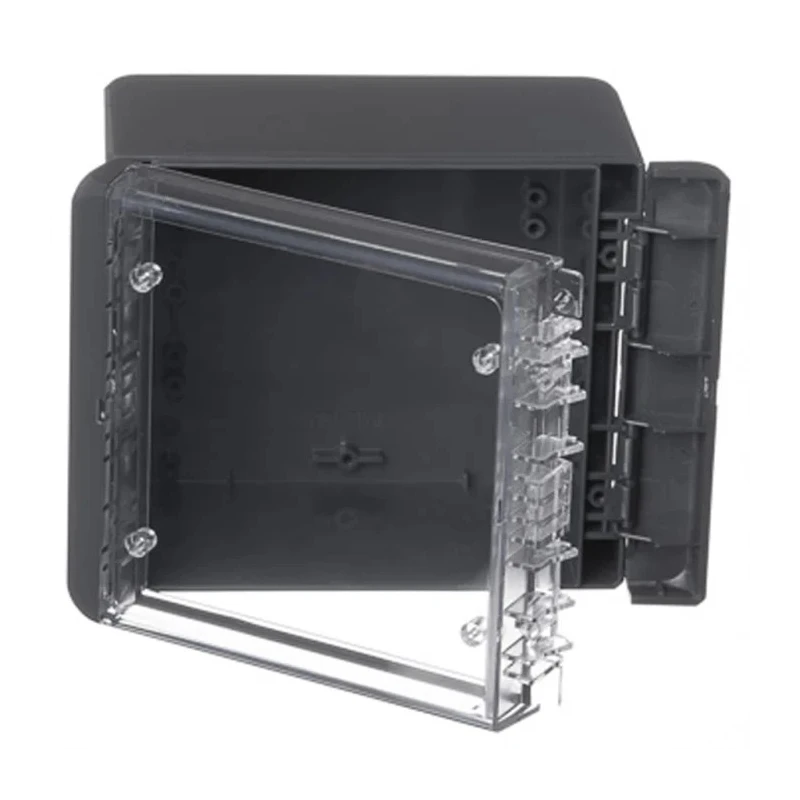

The enclosure body and lid are made from UL 94 V0 flame resistant polycarbonate material that is self-extinguishing and highly durable. It includes a foam polyurethane gasket to ensure superior sealing against ingress of dust and water. The hinged quick-release latch allows quick access without the need for special tools, while also providing option for secure screw closure. The transparent lid permits easy visual inspection of mounted components inside.

This enclosure incorporates a recessed membrane keypad area to facilitate integration of user interfaces and has a spacious mounting area suitable for connectors, cable glands, and operating elements. It is available in two color variants: light grey (RAL7035) and graphite grey (RAL7024), enhancing aesthetic and environmental blending. Compliance with RoHS standards assures safe and environmentally responsible usage.

Applications include cable and wire management, IT/server environments, solar power battery protection, oil and gas production, food and beverage industries, telecommunication infrastructure, and other industrial sectors demanding durable and reliable enclosure solutions.

Optional accessories such as Bopla wall brackets tailored for the Bocube enclosure are sold separately, enabling secure wall mounting. The enclosure features a patented quick-release hinge patented technology that enables easy service and maintenance. A lead seal can also be fitted to prevent unauthorized access, enhancing security.

Made from flame resistant and self-extinguishing polycarbonate UL 94 V0 material. Foam polyurethane gasket for superior sealing against dust and water ingress. Hinged quick-release latch with option for screw closure for security.

Recessed membrane keypad area for mounting displays or keypads. Large mounting area for connectors and cable glands. IP66 and IP68 rated for dustproof and water immersion protection. IK07 impact resistance rating for mechanical robustness.

Compliant with RoHS environmental standards. Suitable for industrial, commercial, and office enclosure applications. Light grey and graphite grey color options available.
