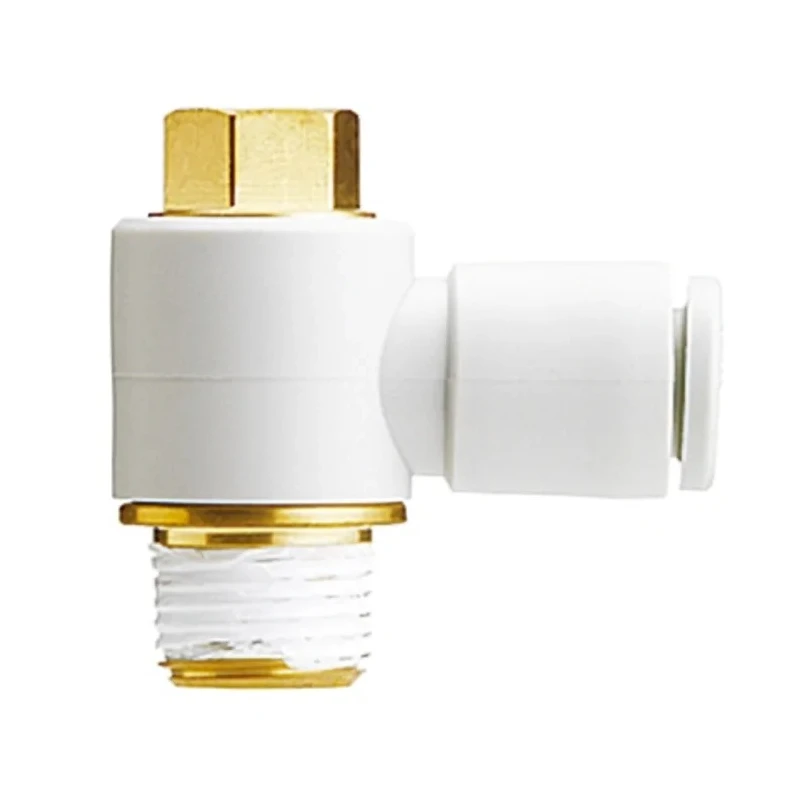

SMC KQ2 Series Brass Pneumatic Fitting Male Universal Elbow R 1/8 in Thread 4mm Push-in KQ2V04-01AS
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Material | Brass |
| Model | KQ2V04-01AS |
| Connection Type | Threaded-to-Tube |
| Finish | Electroless Nickel Plated |
| Series | KQ2 |
| Maximum Operating Temperature | 60°C |
| Angle | 90° |
| Standards/Approvals | RoHS |
| Connection Size A | R 1/8 Male |
| Connection Thread Standard | R |
| Connection Thread Size | R 1/8 in |
| Connection Gender | Male |
| Connection Size B | Push In 4 mm |
| Tube Connection Type | Push-in |
| Tube Connection Size | 4mm |
| SMC KQ2 Series, Threaded-to-Tube Connection StyleBrand | SMC |
Key Features
- Constructed from corrosion-resistant brass with electroless nickel plating.
- Designed for use in vacuum and positive pressure pneumatic applications.
- Compact 90° angle fitting allows installation in confined spaces.
- Equipped with hexagonal heads for tightening with box wrenches.
- Features a universal male elbow with easy push-in tube connection.
- Operates up to a maximum temperature of 60°C.
- Meets RoHS standards ensuring environmental compliance.
- Copper-free design reduces corrosion risks in pneumatic systems.
Product Description
SMC KQ2V04-01AS Brass Pneumatic Fitting Male Universal Elbow is a high-quality, durable pneumatic connector designed for industrial, construction, HVAC, and fluid power applications. Built with electroless nickel plated brass, this fitting features a 90° angle allowing it to be installed easily in confined spaces where compact connections are required.
The universal male elbow design includes hexagonal heads to facilitate tightening using standard box wrenches, enabling secure and reliable connections between threaded and tube components. It accepts 4 mm nylon or urethane tubing via an efficient push-in mechanism, simplifying both installation and removal without damaging tubes.
This fitting is suitable for vacuum and positive pressure pneumatic systems, with a maximum operating temperature of 60°C. It complies with RoHS standards, ensuring it is free from hazardous substances and safe for manufacturing environments. The copper-free construction further reduces corrosion potential, enhancing longevity in fluid power systems.
Corrosion resistant brass material with nickel plating. Compact 90° universal male elbow for tight spaces. Hexagonal head for convenient wrench tightening. Push-in type tube connection for quick installation and removal.
Compatible with nylon and urethane tubes of 4 mm diameter. Suitable for both vacuum and positive pressure use. Maximum operating temperature of 60 degrees Celsius. RoHS compliant for environmental safety. Copper free design enhances corrosion resistance.
This versatile pneumatic fitting is ideal for applications in industrial manufacturing, pneumatic tool assembly, fluid power distribution, and HVAC systems requiring reliable and compact tube-to-thread connections. It offers users ease of maintenance and installation while ensuring airtight performance under operating conditions.
Explore more Pneumatic Fittings and accessories from SMC and other leading brands to complete your fluid control and pneumatic projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the SMC KQ2V04-01AS pneumatic fitting is 60°C.
This fitting is constructed from brass and features an electroless nickel plating for corrosion resistance.
It utilizes a threaded-to-tube connection style, specifically a R 1/8 male thread to a push-in 4 mm tube connection.
Yes, it meets RoHS standards, ensuring it is free from hazardous substances and safe for manufacturing environments.
The SMC KQ2V04-01AS features a compact 90° angle, allowing for installation in confined spaces.
It is compatible with 4 mm nylon and urethane tubing, which can be easily connected using its push-in mechanism.
The push-in mechanism allows for quick installation and removal of tubing without damaging the tubes, providing an efficient connection.
The SMC KQ2V04-01AS pneumatic fitting is made in Japan.
This fitting is suitable for industrial, construction, HVAC, and fluid power applications, particularly in vacuum and positive pressure systems.
The connection gender of this fitting is male, specifically designed for threaded connections.
The hexagonal heads on this fitting allow for tightening with standard box wrenches, facilitating secure and reliable connections.
The fitting features a copper-free design, which helps reduce corrosion potential in pneumatic systems.
