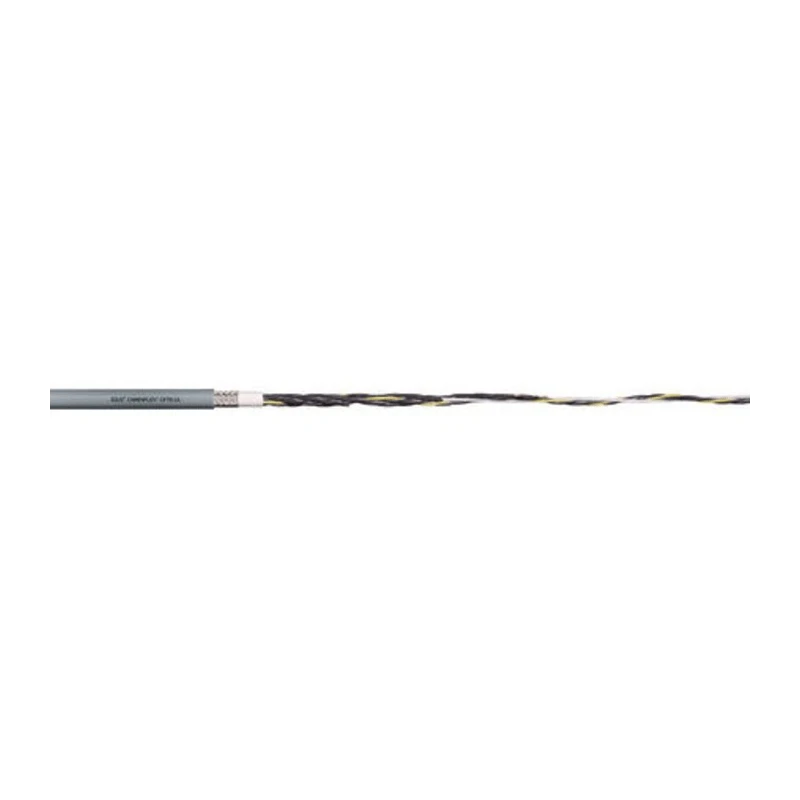

Igus Chainflex® PUR Control Cable 7 Cores 0.75mm² 18 AWG Screened Armoured 300/500V 25m Grey Thermoplastic CF78.UL.07.07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF78.UL.07.07 |
| Cable Length | 25m |
| Series | chainflex CF78.UL |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 7 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -35°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant, Halogen Free |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
| Core insulation | mechanically high-quality TPE mixture |
Key Features
- Designed to withstand high mechanical stress and long travel distances up to 100 meters.
- Oil-resistant and coolant-resistant thermoplastic elastomer sheath.
- Flame-retardant and halogen-free for enhanced safety.
- Screened and armoured to protect against interference and physical damage.
- Suitable for 300/500 V electrical systems.
- Rated for operating temperatures from -35°C to 80°C.
- Bare copper stranded conductors ensure excellent conductivity.
- Compact 10.5 mm outer diameter for flexible installation.
Product Description
Igus CF78.UL.07.07 chainflex PUR Control Cable is a high-quality industrial cable designed for demanding automation and electrical control applications. This product features 7 cores of 0.75 mm² (18 AWG) bare copper stranded conductors, which are screened and armoured to provide excellent mechanical protection and interference shielding.
The thermoplastic elastomer (TPE) jacket is resistant to oils and coolants, making the cable highly durable for use in harsh industrial environments. It complies with flame-retardant standards IEC 332-1, CEI 20-35, and FT1, and is halogen-free for enhanced safety.
The cable supports voltages of 300 and 500 V, accommodating a wide range of control and power signal requirements. Its operating temperature range is from -35°C to +80°C, ensuring reliable performance even in extreme conditions.
With an outer diameter of 10.5 mm and a length of 25 meters, this cable is designed for flexibility and ease of routing. The screened design effectively reduces electromagnetic interference, making it suitable for complex industrial equipment setups.
Manufactured in Germany, the CF78.UL.07.07 cable meets rigorous quality and environmental standards, ideal for applications such as industrial automation, process control, and electrical installations requiring high mechanical resistance and operational reliability.
Designed to withstand high mechanical stress and long travel distances up to 100 meters. Oil-resistant and coolant-resistant thermoplastic elastomer sheath. Flame-retardant and halogen-free for enhanced safety. Screened and armoured to protect against interference and physical damage.
Suitable for 300/500 V electrical systems. Rated for operating temperatures from -35°C to 80°C. Bare copper stranded conductors ensure excellent conductivity. Compact 10.5 mm outer diameter for flexible installation. Manufactured in Germany with high quality standards.
Ideal for industrial automation, electrical power, and control systems. Explore more industrial cables and wires at EnvMart to meet your electrical installation needs with high reliability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable is suitable for 300/500 V electrical systems, accommodating a wide range of control and power signal requirements.
The maximum operating temperature for this cable is +80°C, ensuring reliable performance in high-temperature environments.
This model features 7 cores, providing multiple pathways for electrical signals in control applications.
The outer diameter of the cable is 10.5 mm, which allows for flexible installation in various setups.
The cable has a thermoplastic elastomer (TPE) jacket that is oil-resistant and coolant-resistant, with bare copper stranded conductors for excellent conductivity.
Yes, this cable is flame-retardant and halogen-free, complying with safety standards to enhance safety in installations.
The minimum operating temperature for this model is -35°C, allowing it to function effectively in cold environments.
This cable is manufactured in Germany, meeting rigorous quality and environmental standards.
The core insulation is made from a mechanically high-quality TPE mixture, providing durability and protection for the conductors.
Yes, this model is screened to effectively reduce electromagnetic interference, making it suitable for complex industrial setups.
This cable is ideal for industrial automation, process control, and electrical installations that require high mechanical resistance and operational reliability.
The conductors are stranded bare copper, which ensures excellent conductivity for electrical signals.
