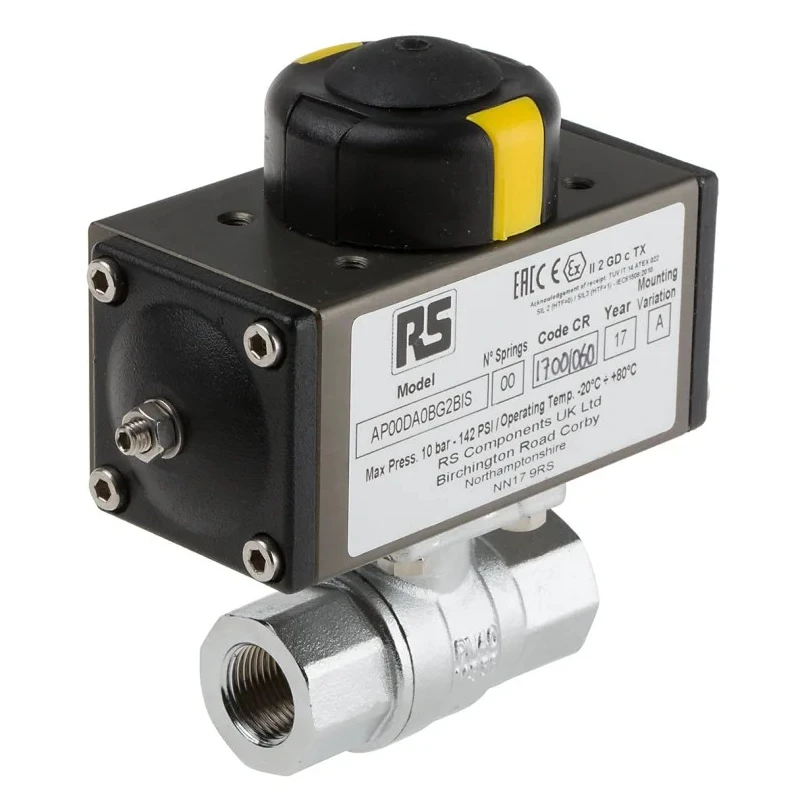

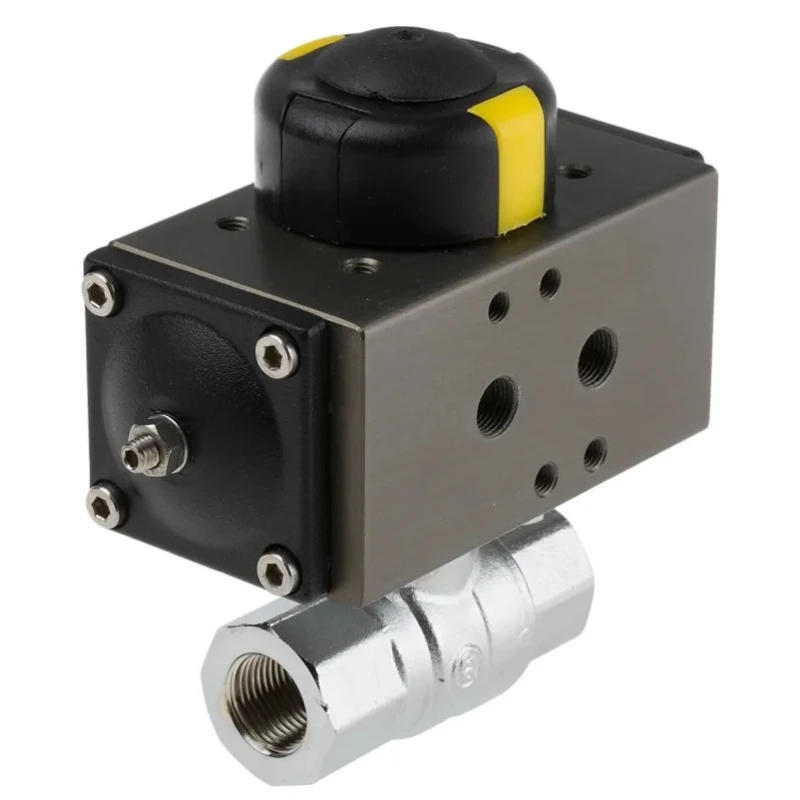

RS PRO Ball Type Pneumatic Actuated Valve, 40 bar, BSP Female 3/8 in 760-5573
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 40 bar |
| Inlet Connection Type | Threaded |
| Model | 760-5573 |
| Valve Type | Ball |
| Valve Material | Hot Pressed Brass |
| Inlet Port Size | 3/8 in |
| Default Valve Position | NC |
| Inlet Thread Standard | BSP |
| Inlet Port Gender | Female |
| Return Type | Direct Action |
| RS PRO Ball type Pneumatic Actuated Valve, 40 bar, BSP, Female 1/4 inBrand | RS PRO |
Key Features
- The valve features a brass ball with hot pressed brass body and end caps for durability.
- Pneumatic actuator operates in a double acting mode for precise control.
- Threaded BSP female connections on both inlet and outlet ports sized 3/8 inch enable secure pipeline integration.
- The valve default position is normally closed ensuring safety in fluid systems.
- Seat ring and body seal are made with P.T.F.E, providing excellent chemical resistance and sealing.
- Stem incorporates brass material with Viton and NBR O-rings ensuring leak-proof operation.
- Direct action return type enhances valve response and control accuracy.
- Suitable for industrial, hydraulic, pneumatic, HVAC, and manufacturing applications.
Product Description
RS PRO 760-5573 Ball Type Pneumatic Actuated Valve is designed for demanding fluid power applications requiring reliable control under high pressure up to 40 bar. Constructed using hot pressed brass for body and end caps, the valve incorporates a chrome plated brass ball to ensure excellent wear resistance and long service life. The threaded BSP female connections at 3/8 inch size enable compatibility with common piping systems. The double acting pneumatic actuator offers precise and rapid valve operation with a normally closed default position adding safety in process control.
The valve seats and body seals use P.T.F.E materials that provide outstanding chemical resistance and dependable sealing in a wide range of industrial fluids. The stem assembly features brass with Viton stem ring and NBR O-ring, optimizing sealing integrity and minimizing maintenance needs. The direct action return mechanism allows fast and accurate valve response to pneumatic signals, making this valve suitable for applications in industrial automation, fluid handling, HVAC systems, water treatment, and manufacturing plants.
With its robust brass construction and high-pressure rating, the RS PRO 760-5573 valve supports efficient and secure fluid control in demanding environments. The product complies with industrial standards, although no specific approvals are granted. Its design ensures ease of integration and operation within pneumatic valve manifolds and control systems.
The valve body and end caps are made from hot pressed brass for durability. Chrome plated brass ball offers wear resistance for extended service life. P.T.F.E seat ring and body seal provide chemical resistance and reliable sealing performance.
Double acting pneumatic actuator facilitates precise valve opening and closing. BSP threaded 3/8 inch female inlet and outlet connections suit standard pipelines. Normally closed default valve position enhances safety in fluid systems.
Direct action return mechanism enables rapid and accurate valve response. Stem assembly includes brass stem with Viton stem ring and NBR O-rings for leak prevention. Explore the range of industrial Pneumatic Valves and actuators at EnvMart for efficient process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 40 bar.
It features threaded BSP female connections sized 3/8 inch on both the inlet and outlet ports.
The valve body and end caps are constructed from hot pressed brass, providing durability.
The default position of this valve is normally closed (NC), enhancing safety in fluid systems.
It utilizes a double acting pneumatic actuator for precise control and rapid operation.
The seat ring and body seal are made from P.T.F.E, which offers excellent chemical resistance and sealing performance.
This valve features a direct action return type, allowing for fast and accurate response to pneumatic signals.
The stem assembly includes a brass stem with Viton and NBR O-rings to ensure leak-proof operation.
It is suitable for industrial, hydraulic, pneumatic, HVAC, and manufacturing applications.
This model is a ball type pneumatic actuated valve.
Specific dimensions are not provided in the product details; please refer to the manufacturer's specifications for exact measurements.
The country of origin for this valve is India.
