Fluke G 1/4 RS232 Pressure Gauge 114 mm Dial Size 690 bar Maximum Pressure Accuracy ±0.05%

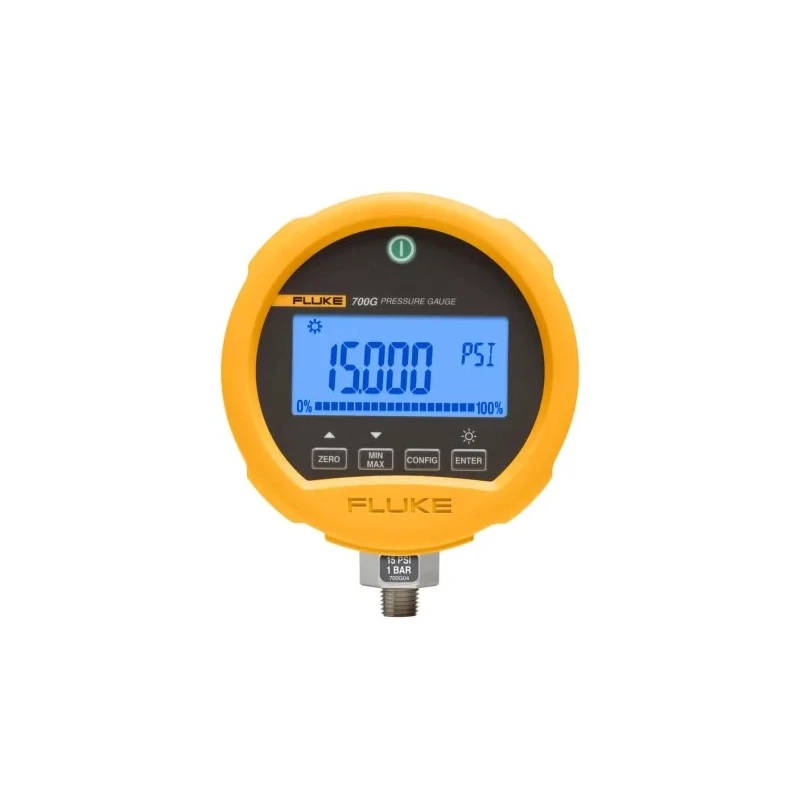

Fluke FLUKE-700G31/APAC RS232 Pressure Gauge delivers highly accurate pressure measurement up to 690 bar with exceptional ±0.05% accuracy, designed for demanding calibration and industrial testing environments. It features a 114 mm dial size and a clear 5½-digit digital display to ensure excellent readability and precision.

The pressure gauge incorporates a 1/4 inch NPT male pressure connection and a bottom entry connection location allowing easy integration with pneumatic and hydraulic test rigs. Its robust housing made from cast zinc and aluminium provides durability and protection against harsh industrial conditions.

The unit operates efficiently within a temperature range of -10°C to 55°C and supports data transfer using an RS232 interface, enabling seamless real-time data logging to a PC. It can handle pressures from -0.97 bar vacuum levels up to 690 bar high pressure, making it suitable for a wide variety of industrial and laboratory pressure measurement tasks.

Applications include use in high-accuracy calibration laboratories, pneumatic pump pressure testing up to 40 bar, hydraulic system verification up to 690 bar, absolute pressure measurements in sealed systems, and field service testing in classified hazardous environments.

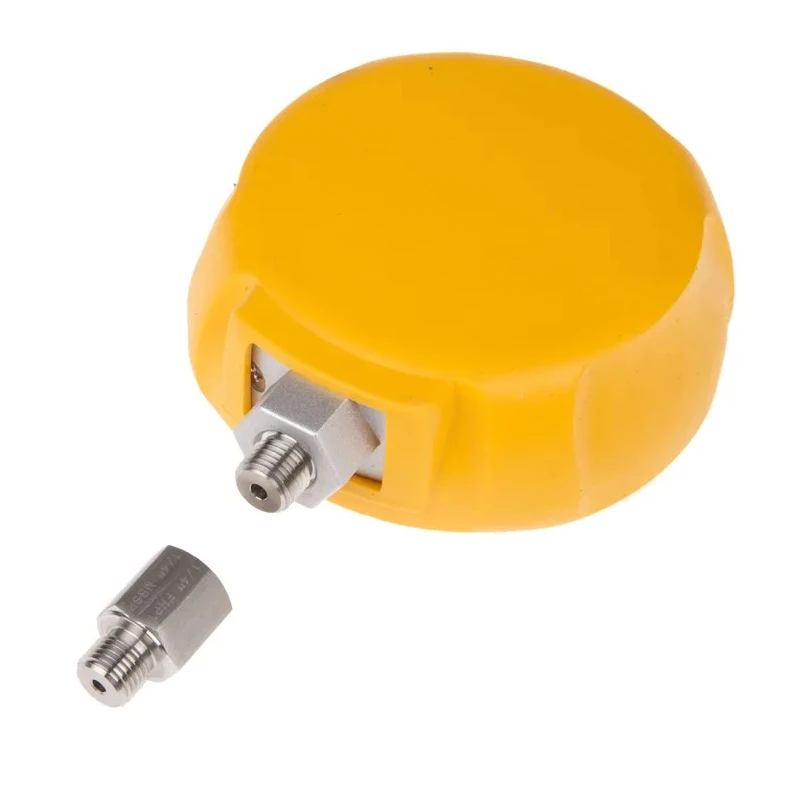

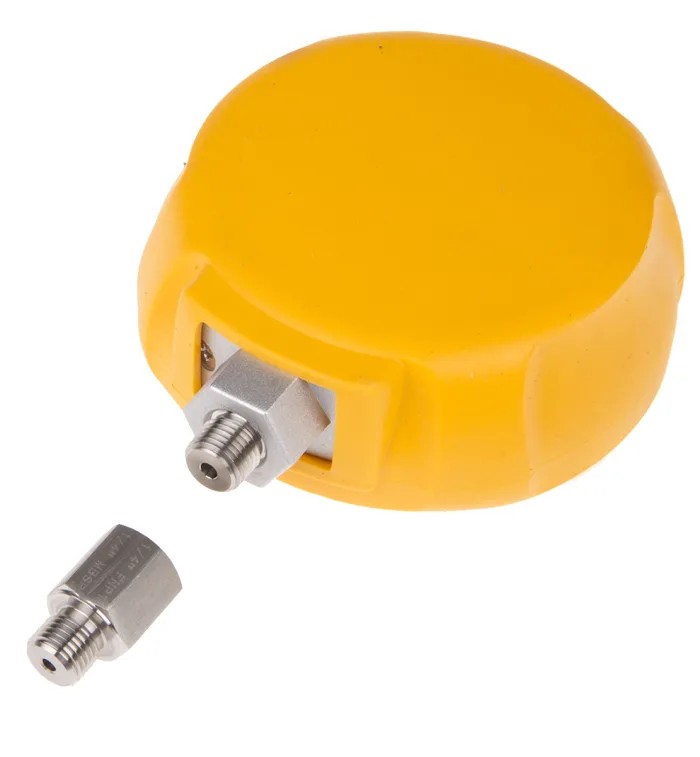

The instrument is supplied with a traceable calibration certificate and a 1/4" NPT to 1/4" ISO adapter. It carries approvals including CSA, Class 1 Div 2 Groups A-D, and ATEX II 3 G Ex nA IIB T6 certification, ensuring its safety in explosive atmospheres.

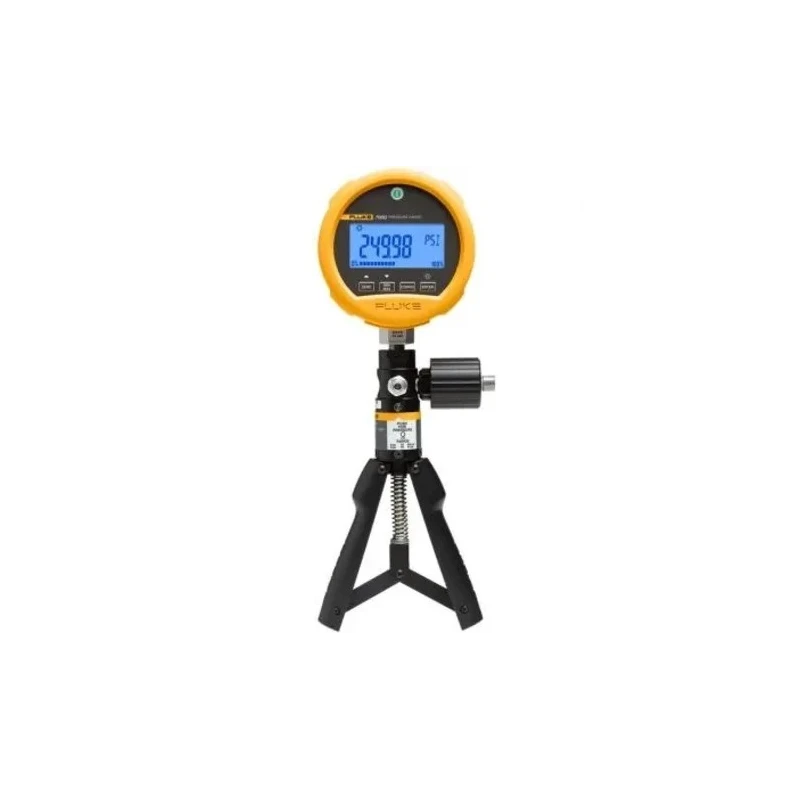

The gauge is compatible with liquids and gases that are compatible with 316 stainless steel for pressures of 100 psi and above. It can log up to 8,493 measurements internally when enabled, using optional logging software and pump kits, which are sold separately.

Provides ±0.05% accuracy for precise pressure calibration. Uses 1/4 inch NPT male pressure connection for easy and secure attachment. Constructed with cast zinc and aluminium for durability in harsh environments. Operates reliably between -10°C and 55°C temperature range.

Equipped with RS232 interface for real-time data logging to PC. Suitable for pneumatic and hydraulic system testing and calibration. Includes traceable calibration certificate and 1/4" NPT to 1/4" ISO adapter. Meets CSA, Class 1 Div 2 Groups A-D and ATEX approvals for hazardous areas.
