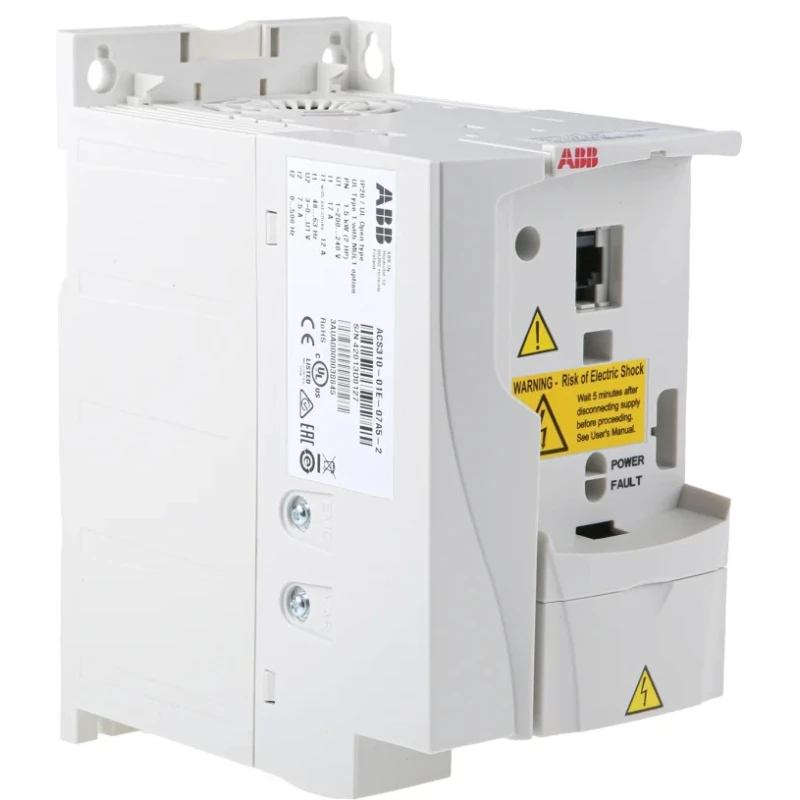

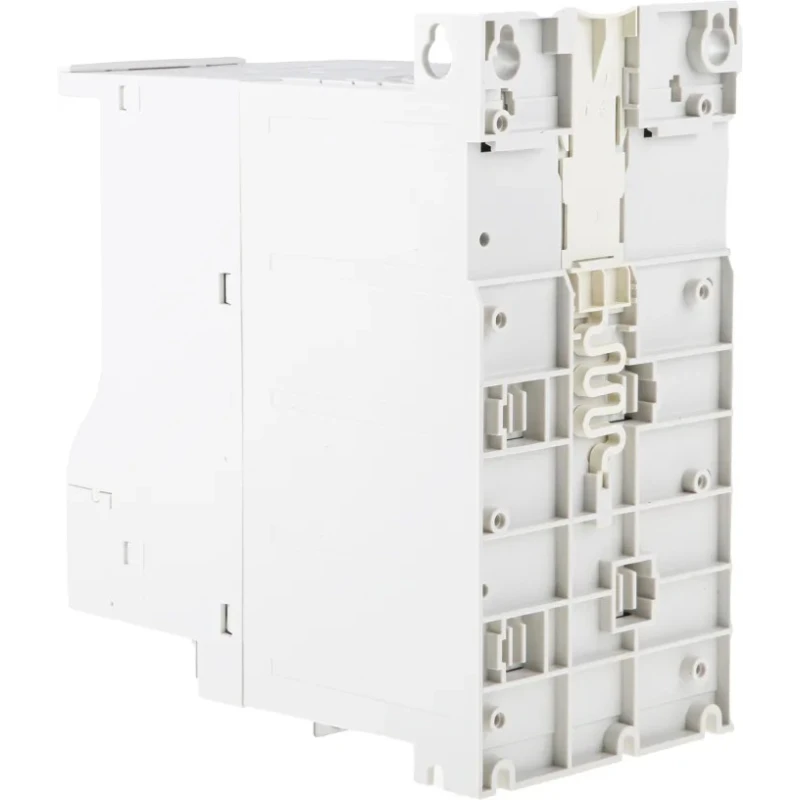

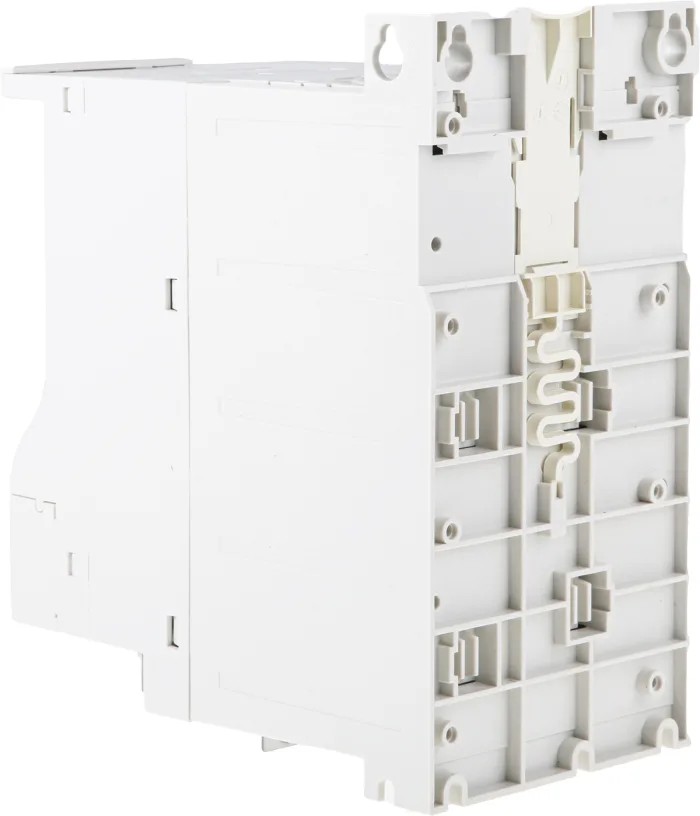

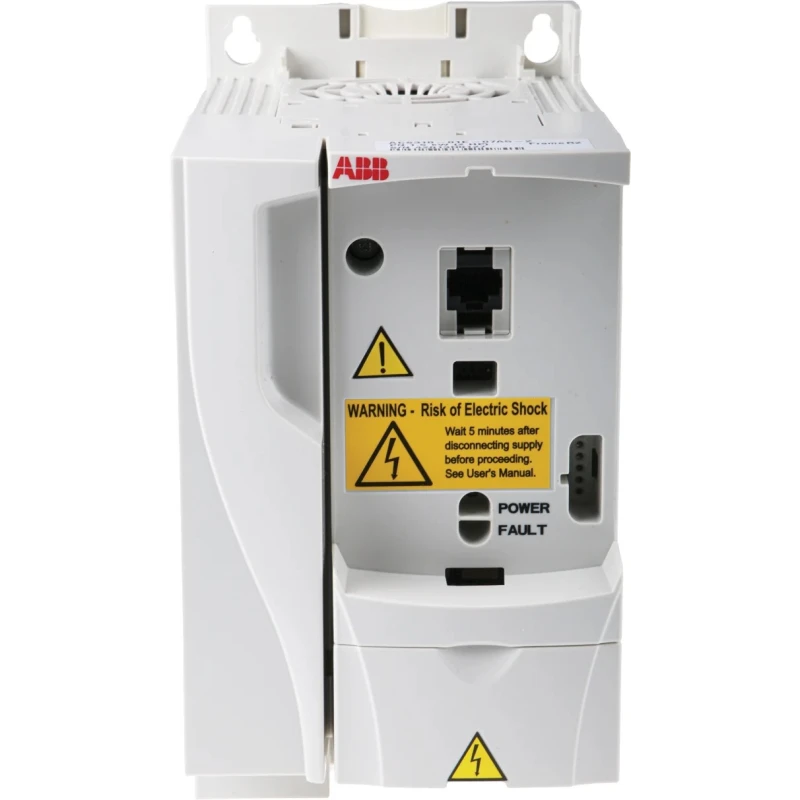

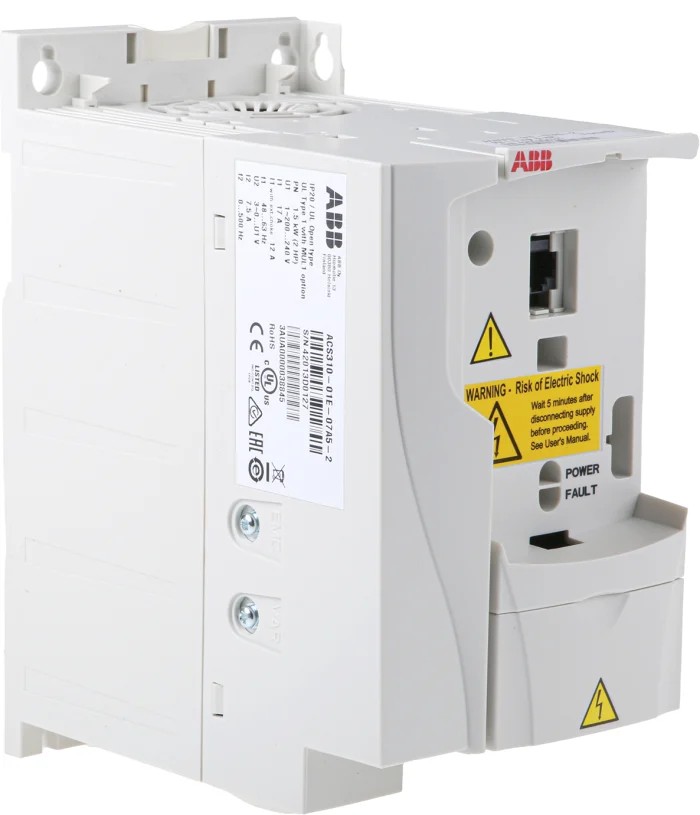

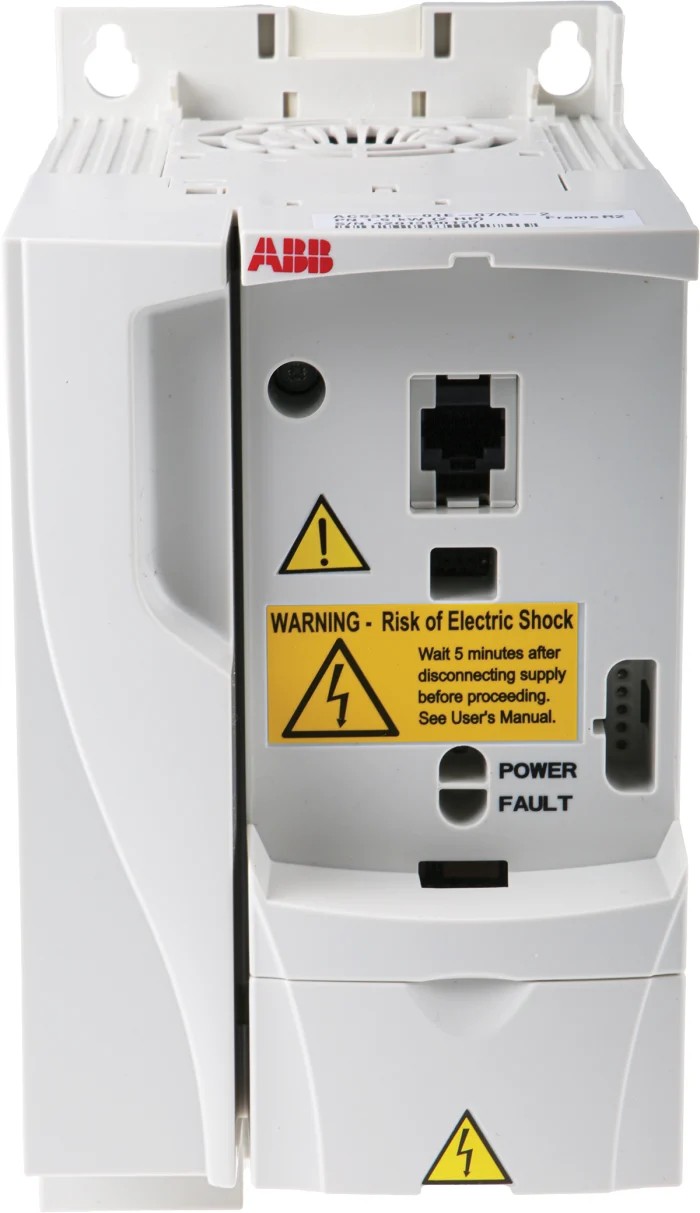

ABB Inverter Drive 1.5 kW 1 Phase 230V AC 7.5A Variable Speed Wall Mount IP20 ACS310 Series

ABB ACS310-01E-07A5-2 inverter drive is a highly efficient variable speed drive designed for precise control of single-phase 230V AC motor applications delivering 1.5 kW power with a maximum output current of 7.5 A. This drive specializes in fan and pump control and supports asynchronous, induction, and AC motors providing flexibility across multiple industrial applications.

The device has an IP20 enclosure rating, ensuring protection from solid objects, and is suitable for wall or DIN rail mounting with versatile installation options including back or side configurations. Its compact dimensions of 344mm length, 217mm width, and 166mm depth enable integration into existing electrical panels with ease.

The ACS310 series features sophisticated software with logical parameter grouping and pre-defined macros for simple setup of start/stop, PID control, pump and fan control (PFC), and soft pump and fan control (SPFC) for irrigation and leak prevention systems. Additional functionalities include pipe cleaning anti-ragging, an internal real-time clock (RTC) for timed operations (with assistant keypad), and energy optimizer that calculates lowest cost to run connected motors.

This inverter drive operates reliably within a wide ambient temperature range from -10°C up to +40°C and complies with strict international standards including UL, cUL, RoHS, C-Tick, GOST R, and CE certifications. Its scalable pump and fan control functions make it ideal for industrial water treatment, HVAC, manufacturing plants, and commercial pumping systems.

Through embedded Modbus EIA-485 communication interface and I/O controls, seamless integration with automation systems is possible, enabling complex pump and fan sequencing, enhanced diagnostics, and performance optimization critical for industrial motor control tasks.

The product is manufactured in China and comes in new condition, backed by ABB's reputation for industrial automation excellence. Features wall mounting with IP20 protection rating for robust installation. Compatible with asynchronous, induction, and AC motors for versatile use.

Supports output frequency of up to 60Hz ensuring precise speed control. Equipped with advanced pump and fan control functionalities including PFC and SPFC. Integrated timer and real time clock (with assistant keypad) enable scheduled operations.

Designed for operation in ambient temperatures ranging from -10°C to +40°C. Includes protection functions such as pipe cleaning to prevent pump clogging. Energy efficiency features help optimize operational costs by calculating real-time savings.

Multiple mounting configurations supported: wall or DIN rail, back or side installation.
