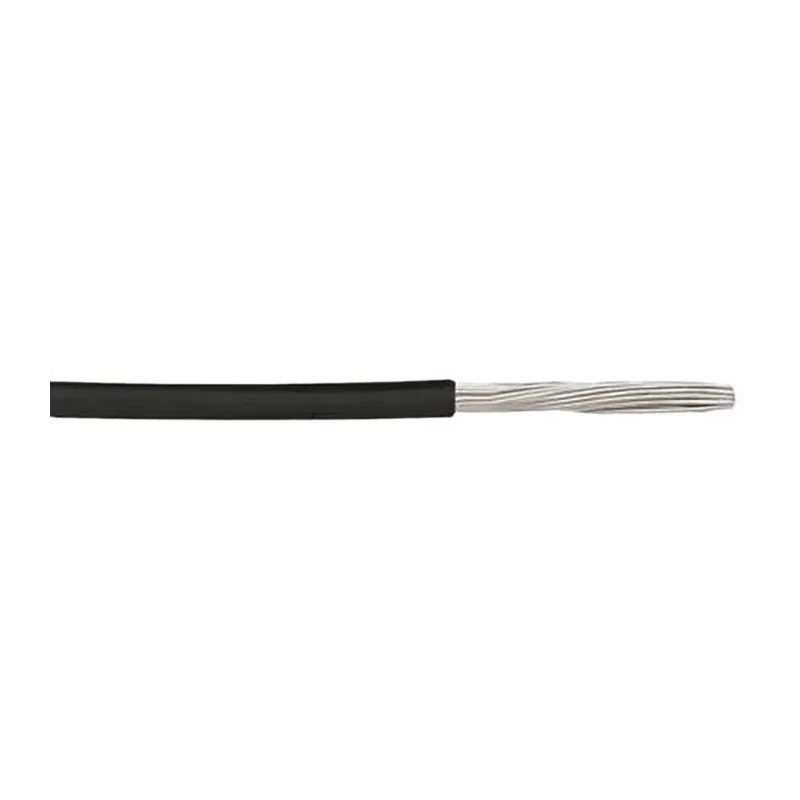

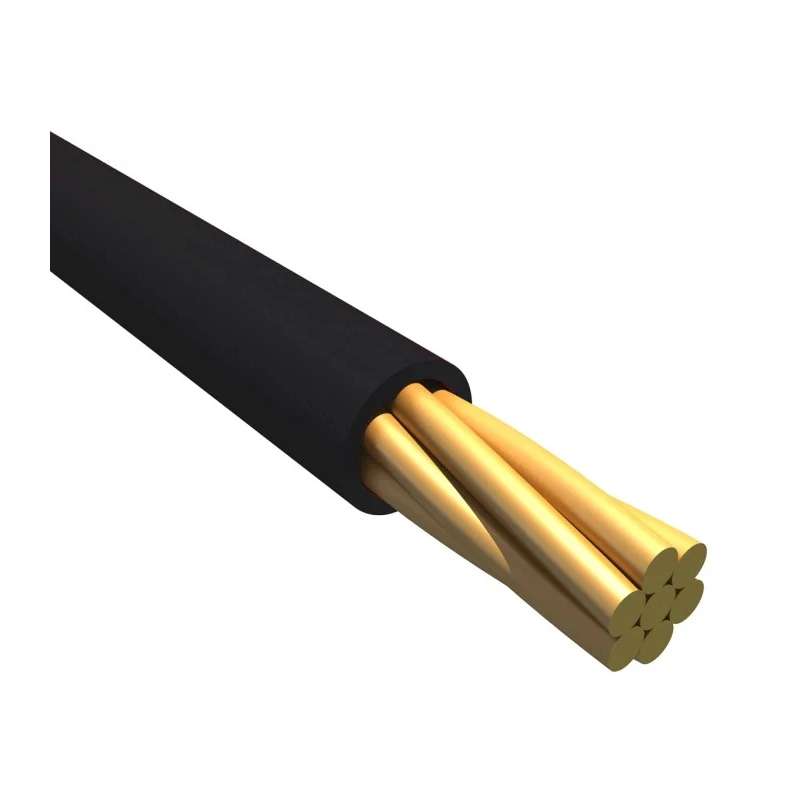

RS PRO Ecogen Ecowire Plus Series Black 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm Strands, 30 m Length 6823 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.33mm² |
| Model | 6823 BK005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.17mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Cable Type | Hookup |
| Wire Diameter | 0.046 Inch (1.17 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 22 AWG (0.35 mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 22AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 7/30 (7 x 0.25) |
Key Features
- The wire consists of 7 strands of 0.25 mm diameter copper conductors for flexibility.
- Insulation is made of modified polyphenylene ether (mPPE) offering excellent chemical and fluid resistance.
- The cable diameter measures approximately 1.17 mm with halogen-free fire behavior.
- The EcoWire Plus series meets CE, ISO 6722, RoHS, and REACH standards ensuring environmental compliance.
- This wire is suitable for industrial, solar, transportation, wind power, and medical applications.
- The insulation thickness is 0.20 mm allowing for reduced wall thickness and lightweight construction.
- EcoWire Plus wiring is fully recyclable and free from hazardous materials for sustainable use.
Product Description
Alpha Wire 6823 BK005 Ecogen Ecowire Plus Series black Hook Up Wire features a 0.33 mm² (22 AWG) stranded copper conductor cable, composed of 7 strands of 0.25 mm core wires, and a total cable length of 30 meters. The insulation material is modified polyphenylene ether (mPPE), known for its toughness, lighter weight, and superior dielectric strength compared to traditional PVC. This hook-up wire's compact 1.17 mm diameter and halogen-free construction enhance safety and versatility in industrial environments.
The cable is rated for 300 V voltage and supports a broad temperature range from -40°C minimum to +110°C maximum operating temperature, making it suitable for use in challenging factory and outdoor conditions requiring resistance to oils, solvents, and hazardous fluids.
EcoWire Plus meets stringent quality and environmental standards including CE, ISO 6722, RoHS, and REACH compliance. It contains no halogens or heavy metals, making it a 100% recyclable and environmentally friendly choice that supports Waste Electrical and Electronic Equipment (WEEE) directives.
This wiring is ideal for diverse applications such as solar installations, transportation systems, wind power generation, industrial machines, and medical equipment where durability and environmental compliance are critical.
The wire's reduced wall thickness and low specific gravity provide an advantage in installation and handling without compromising mechanical integrity or insulation strength. The wire consists of 7 flexible copper strands making installation easier in tight spaces.
Modified polyphenylene ether insulation provides superior resistance to chemicals and hazardous fluids. Wide temperature tolerance supports demanding industrial environments. The cable is halogen-free, making it safer in fire conditions.
Compliance with multiple internationally recognized standards ensures high product quality and reliability. 30 meters spool length offers ample cable for varied wiring projects. Lightweight and recyclable materials contribute to sustainable practices.
Explore more from the Alpha Wire Ecogen Ecowire Plus range and other high-quality hook-up wires at EnvMart for industrial electrical and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this wire is 300V.
This model operates within a temperature range of -40°C to +110°C.
The wire length is 30 meters.
The outside diameter of the wire is approximately 1.17 mm.
The insulation is made of modified polyphenylene ether (mPPE), which offers excellent chemical and fluid resistance.
The wire consists of 7 strands of 0.25 mm diameter copper conductors.
Yes, this wire is halogen-free, enhancing safety in fire conditions.
The wire meets CE, ISO 6722, RoHS, and REACH standards, ensuring environmental compliance.
This wire is suitable for industrial, solar, transportation, wind power, and medical applications.
The insulation thickness is 0.20 mm (0.008 inches).
The conductor size is 22 AWG, which is equivalent to 0.33 mm².
The wire is manufactured in India.
