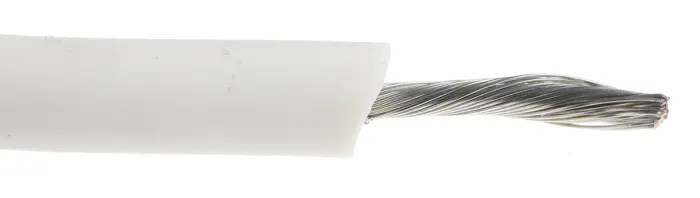

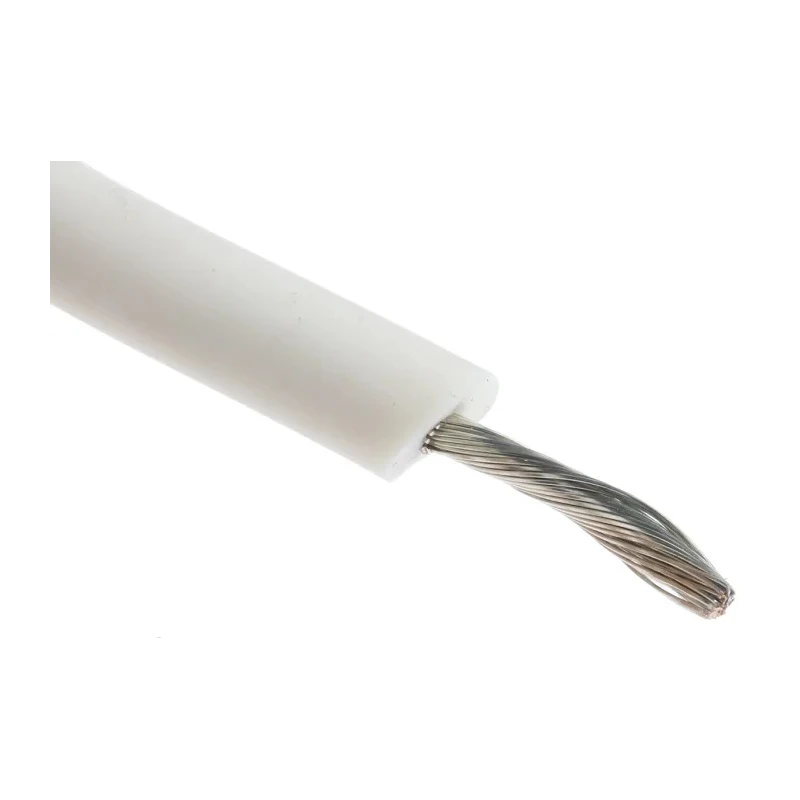

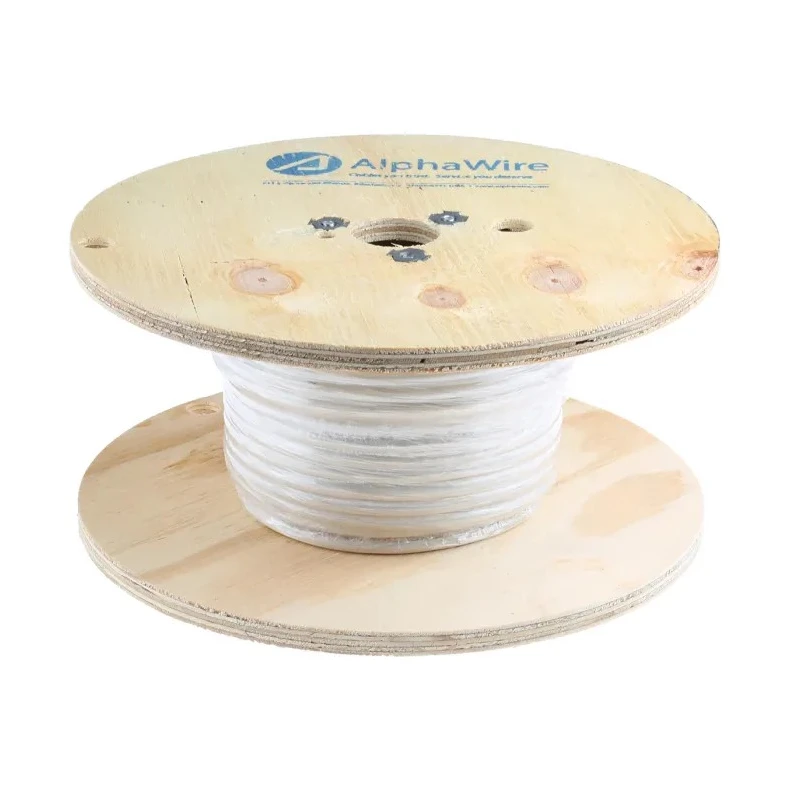

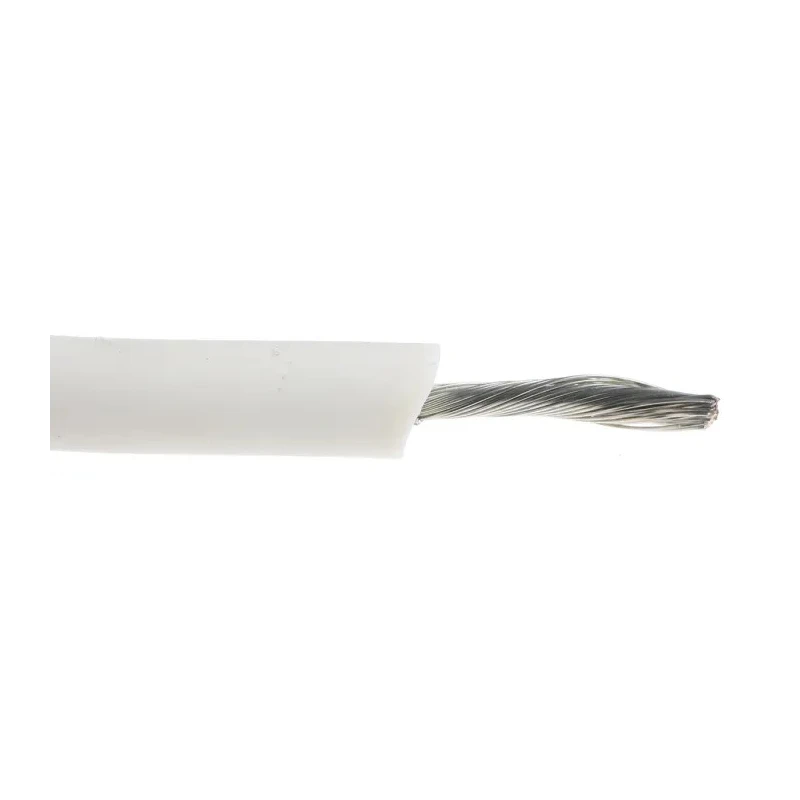

Alpha Wire Hook Up Wire Silicone Series White, 3.3 mm² Cross Sectional Area, 12 AWG, 65 x 0.25 mm Core Strands 391297 WH005

Alpha Wire 391297 WH005 Hook Up Wire Silicone Series White is a premium-grade hookup wire with a 3.3 mm² cross-sectional area and white silicone rubber jacket. It features a flexible 65-strand tinned copper conductor, allowing for excellent flexibility and repeated bending without compromising electrical integrity. The wire is rated for a maximum operating temperature of 150°C and a voltage rating of 40000V DC, making it suitable for demanding high-temperature and high-voltage industrial and electronic systems wiring.

The silicone rubber jacket maintains optimum pliability across a wide temperature range from -40°C to 150°C, supporting installations in hot and cold environments. The wire carries UL AWM STYLE 3239 approval and flame retardant VW-1 classification, reducing flame propagation risk.

This hook-up wire is commonly used in high-voltage test leads, laboratory equipment wiring, automation equipment harnesses, thermal sensor connections, heating-element wiring, internal power supply wiring, and robotics cabling requiring flexible movement. Its conductor construction with fine 65-strand, 0.25 mm diameter, tin-plated copper strands enhances flexibility and reliability.

Installation guidelines recommend a minimum bend radius of 10 times the cable diameter and a maximum pull tension of 51 pounds to prevent damage. The product complies with RoHS, REACH, and China RoHS environmental standards, making it compliant and environmentally safe.

The 65-strand tin-plated copper conductor provides excellent flexibility for routing and repeated bending. The silicone rubber jacket retains pliability from -40°C to 150°C operating temperature. Rated for 40000V DC voltage, permitting high-voltage insulation performance.

Flame retardant with VW-1 flame classification offers enhanced fire safety. UL AWM STYLE 3239 compliance ensures recognized appliance wiring standards. Ideal for applications in automation equipment, robotics cabling, and thermal sensor wiring.

Suitable for high-voltage test leads, laboratory wiring, and power supply internal wiring. Minimum bend radius recommended is 10 times the cable diameter to maintain wire integrity. Conforms to RoHS, REACH, and China RoHS marking standards for environmental compliance.

This product is categorized under Hook Up Wire for industrial, laboratory, electrical, automation, and electronics use cases. Explore more products like Alpha Wire hookup wires and related electrical cable solutions on EnvMart.
