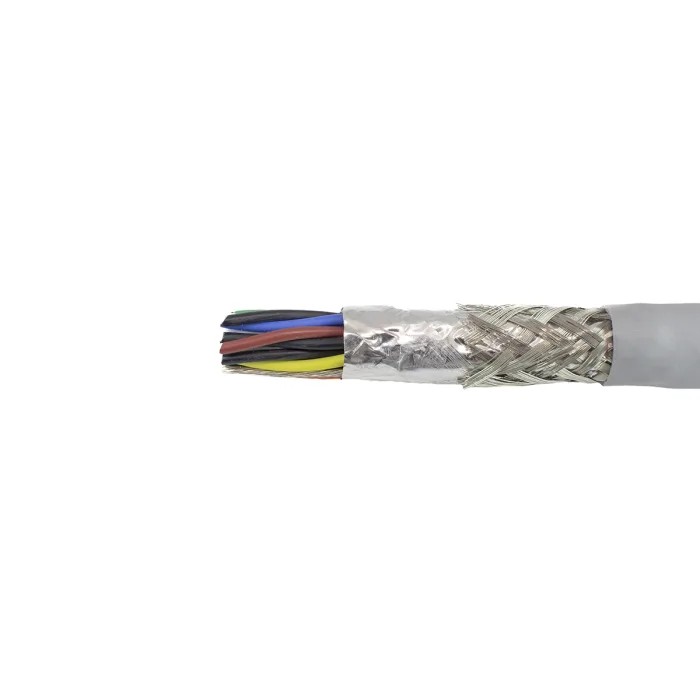

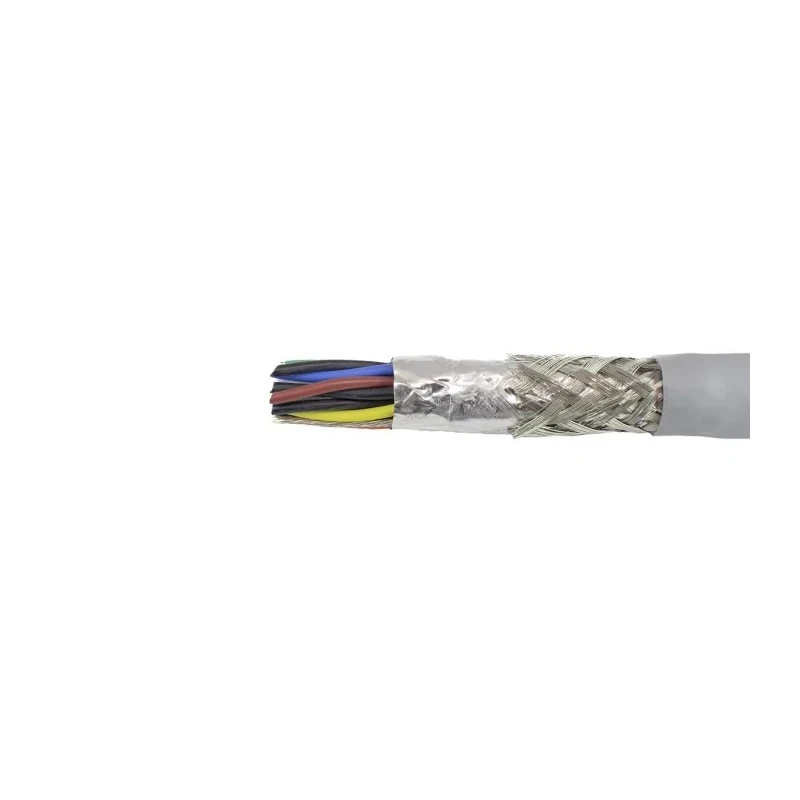

Alpha Wire Pro-Tekt Series Data Cable 77 Pairs 15 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B953154 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23mm² |
| Model | B953154 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 7.57mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 15 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.298 inch (7.57 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Number of Pairs | 77 |
| Conductors | 15, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Slate, White, White/Black, White/Brown, White/Red, White/Orange, White/Yellow |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
Key Features
- Constructed with stranded tin copper wire for enhanced flexibility.
- Features a flame retardant grey PVC jacket resistant to UV and oil.
- Operates effectively within a temperature range of -30°C to 105°C.
- Complies with CE, CSA Certified, and UL standards for safety and quality.
- Cable diameter measures 7.57 mm with precise core stranding of 7 x 0.20 mm strands.
- Incorporates 15 color-coded conductors for easy identification.
- Designed for industrial, automation, and data transmission applications.
- Pro-Tekt series combines foil and braid shielding options for electromagnetic interference resistance.
Product Description
Alpha Wire B953154 GE321 Pro-Tekt Series Data Cable is engineered for high-performance industrial and commercial data transmission applications. This flexible multi-core cable features 77 pairs with 15 cores, each core having a precise 0.23 mm² cross sectional area and a length of 50 meters.
The cable is sheathed in a premium grey polyvinyl chloride jacket which offers excellent UV and oil resistance, ensuring durability in demanding environments. Its stranded tin copper conductors enhance flexibility and facilitate reliable electrical connectivity.
The Pro-Tekt series incorporates advanced shielding options, including foil, braid, and Supra-Shield, to provide superior electromagnetic interference resistance, making it ideal for sensitive signal transmissions in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics sectors.
The cable operates reliably within a temperature range from -30°C to +105°C and carries CE, CSA, and UL certifications, reinforcing its compliance with international safety and quality standards.
Constructed with stranded tin copper wire for increased flexibility and durability. Flame retardant grey PVC jacket protects against environmental hazards. Designed to withstand operating temperatures from -30°C to 105°C for extended service life.
Meets CE, CSA Certified, and UL standards for industrial cable applications. Includes 77 pairs and 15 color-coded cores for versatile utility. Outside nominal diameter of 7.57 mm with 7x0.20 mm core strands for precision performance.
Ideal for integration in power equipment across diverse industrial and commercial sectors. Pro-Tekt European cable system allows use in confined spaces due to its perfectly rounded design. Advanced shielding options guard against electromagnetic interference, ensuring data integrity.
This product complies with IEC EN 60332-1 for fire behavior and is optimized for use in the European marketplace and beyond. The Pro-Tekt series cable supports applications requiring the combination of data, power, coaxial, and audiovisual cores into a single cable solution.
Discover more industrial-grade cables and components from Alpha Wire on EnvMart, your trusted source for professional electrical and automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This data cable features 15 cores.
Each core has a cross-sectional area of 0.23 mm².
The total length of this cable is 50 meters.
It uses stranded tin copper wire for its conductors.
The outside diameter of this cable is 7.57 mm.
This model complies with CE, CSA Certified, and UL standards.
The jacket is made of flame retardant grey polyvinyl chloride (PVC).
The minimum operating temperature is -30°C.
This cable contains 77 pairs.
The conductors are color-coded with black, brown, red, orange, yellow, green, blue, violet, slate, white, white/black, white/brown, white/red, white/orange, and white/yellow.
This model is designed for industrial, automation, and data transmission applications.
