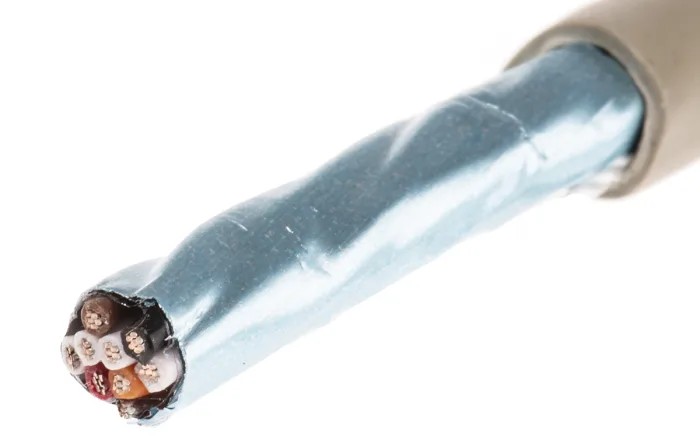

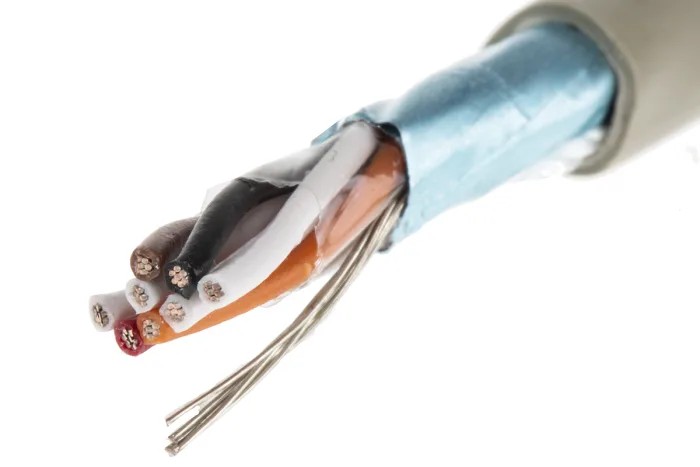

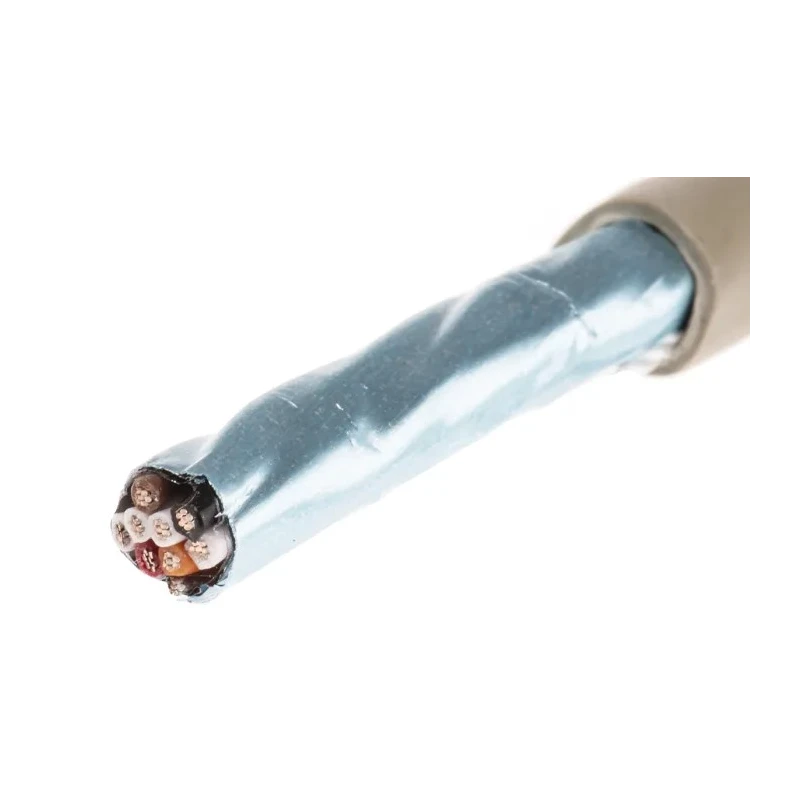

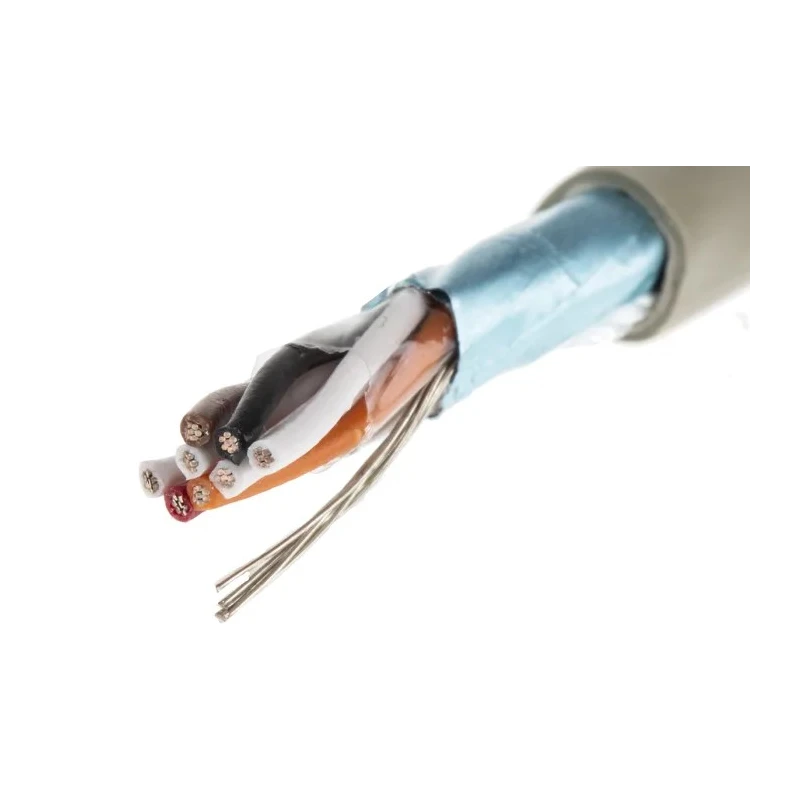

Alpha Wire Pro-Tekt Series Data Cable 4 Pairs 8 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B963042 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | B963042 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.25mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.246 inch (6.25 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 4 |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
| Pairs | 4, White + Black, White + Brown, White + Red, White + Orange |
Key Features
- Constructed with tin copper wire conductors for reliable signal transmission.
- Features a flame retardant polyvinyl chloride jacket with UV and oil resistance.
- Designed with stranded 7/32 gauge strands for enhanced flexibility.
- Operates within a temperature range of -30°C to 105°C for diverse environments.
- Complies with CE, CSA Certified, and UL standards ensuring quality and safety.
- Pairs are color-coded as white + black, white + brown, white + red, white + orange for easy identification.
- The cable's nominal diameter is 6.25 mm with a jacket thickness of 0.81 mm for durability.
- Foil shielding and multiple strand configuration reduce electromagnetic interference.
Product Description
Alpha Wire B963042 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible multipair data cable designed for demanding industrial and commercial applications. This cable features 4 pairs (8 cores) with a cross-sectional area of 0.23 mm² and an overall length of 50 meters.
The cable is sheathed in premium-grade grey polyvinyl chloride (PVC), offering flame retardant properties, UV resistance, and oil resistance, ideal for harsh environments. Its stranded conductors, composed of tin copper wire, provide excellent flexibility and reliable electrical conductivity.
Operating temperature ranges from -30°C to +105°C, making it suitable for a wide range of industrial settings. The cable also complies with major industry standards including CE, CSA, and UL certifications, ensuring dependable performance and safety compliance.
The pairs are color-coded for easy installation and troubleshooting. The Pro-Tekt series features a foil shield for electromagnetic interference protection, enhancing signal integrity even in electrically noisy environments.
This data cable is ideal for industries such as industrial automation, aerospace, medical devices, petrochemical, and commercial electronics. It supports combining data, power, coaxial, and AV cores into a single cable when using Pro-Tekt cable options.
Constructed with tin copper wire conductors for enhanced conductivity and durability. Flexible stranded conductor design facilitates installation in confined spaces. Grey polyvinyl chloride jacket offers flame retardance with abrasion resistance.
Wide operating temperature range ensures performance in varied conditions. Certified to CE, CSA, and UL standards for safety and reliability. Color-coded pairs simplify wiring and maintenance processes. Foil shield minimizes electromagnetic interference for signal integrity.
Ideal for complex industrial and commercial automation environments. Pro-Tekt European Cable System supports durable, high-quality connections. Explore our extensive range of high-performance Data Cables and other wiring solutions at EnvMart for all your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is 105°C.
The nominal diameter of this cable is 6.25 mm.
This cable features 8 cores, organized into 4 pairs.
It is constructed with tin copper wire conductors and features a polyvinyl chloride (PVC) jacket.
The length of this data cable is 50 meters.
This cable complies with CE, CSA, and UL standards.
The voltage rating for this cable is 300V.
It is suitable for industrial automation, aerospace, medical devices, petrochemical, and commercial electronics applications.
The jacket thickness of this cable is 0.81 mm (0.032 inch).
The cable features foil shielding which helps to minimize electromagnetic interference, enhancing signal integrity.
The pairs are color-coded as white + black, white + brown, white + red, and white + orange for easy identification.
The minimum operating temperature for this data cable is -30°C.
