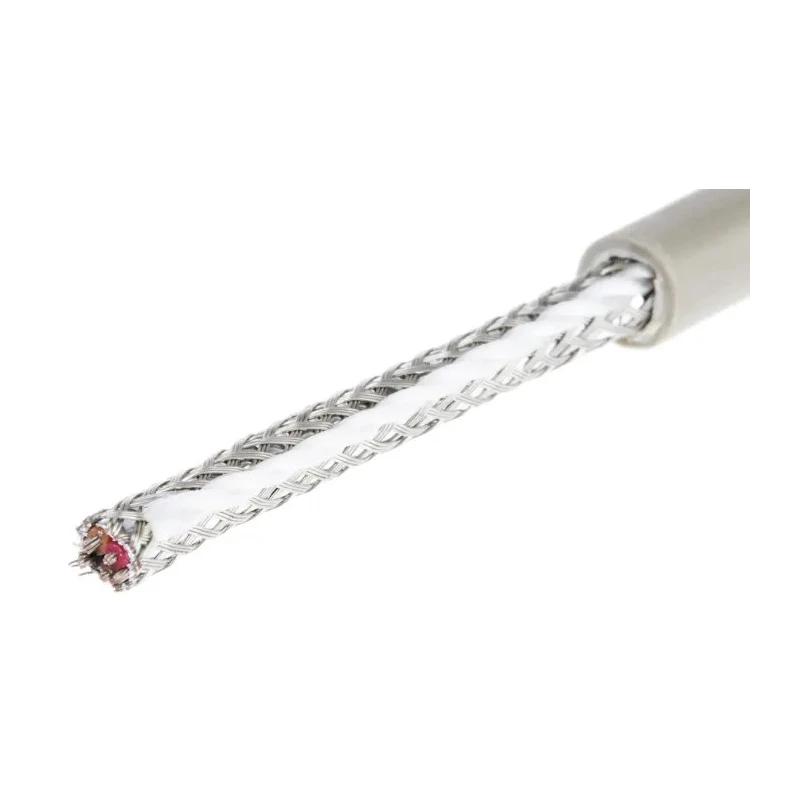

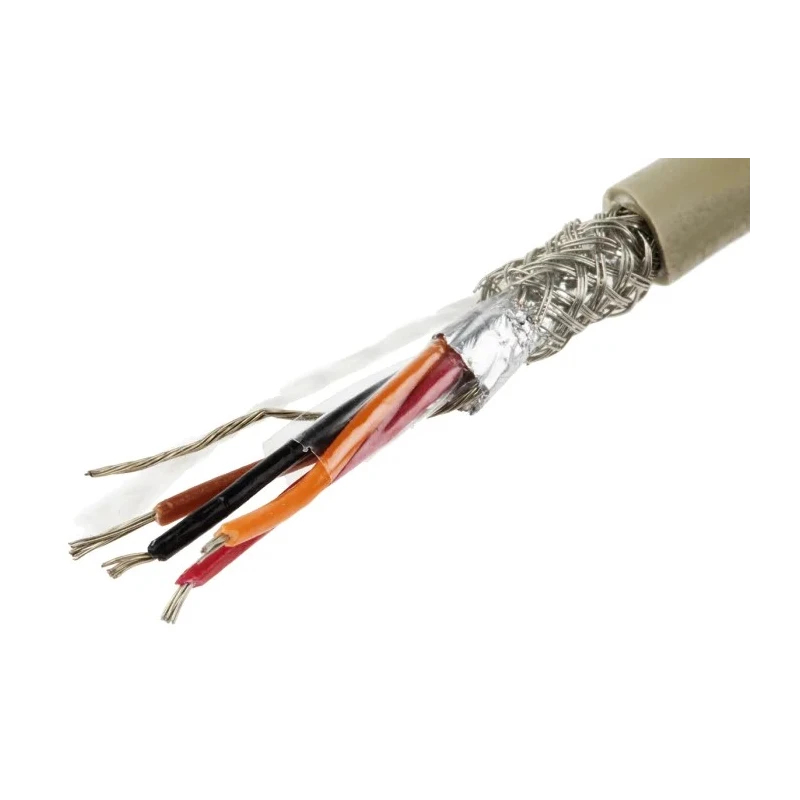

Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.56 mm² 50 m Grey Sheath Polyvinyl Chloride B955044 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.56mm² |
| Model | B955044 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.73mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.265 inch (6.73 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Conductors | 4, Black, Red, White, Green |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/28 |
Key Features
- The cable includes stranded conductors to provide excellent flexibility.
- It operates safely at voltages up to 300 V with a temperature range from -30°C to 105°C.
- The jacket is made from durable polyvinyl chloride (PVC) providing UV and oil resistance.
- The cable has a nominal diameter of 6.73 mm and flame retardant properties for added safety.
- Color-coded cores (black, red, white, green) simplify installation and identification.
- The cable meets CE, CSA, and UL standards ensuring reliable industrial use.
- Its construction incorporates 7 strands per core with a strand size of 0.32 mm for durability.
- Suitable for power equipment applications in industries such as automation, aerospace, medical devices, and commercial electronics.
Product Description
Alpha Wire B955044 GE321 Pro-Tekt Series Data Cable is a high-performance 300 V rated cable with 4 cores each having a cross sectional area of 0.56 mm². It features stranded tin copper wire conductors and is sheathed in a robust grey polyvinyl chloride (PVC) jacket that is UV and oil resistant, flame retardant, and designed for demanding industrial environments.
The cable has a nominal diameter of 6.73 mm with a jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.016 inch (0.41 mm). It operates across temperatures from -30°C to 105°C, suitable for use in applications requiring flexibility and durability. The stranded 7 x 0.32 mm core strands increase flexibility and mechanical strength.
This cable is part of Alpha Wire's Pro-Tekt European Cable System and is suitable for use in electrical power and industrial cable applications including automation, medical, aerospace, petrochemical, and commercial electronics. The color-coded cores (black, red, white, green) aid in quick identification and installation. The cable complies with CE, CSA Certified, and UL approvals such as IEC EN 60332-1 and UL AWM 2464 VW-1, ensuring compliance with rigorous safety and performance standards.
Alpha Wire offers shielding options within the Pro-Tekt range including foil, braid, and Supra-Shield for enhanced electromagnetic interference resistance, although this specific cable is unshielded. The cable's design facilitates the integration of data, power, coaxial, and AV cores in a single robust infrastructure.
The cable's stranded conductors provide excellent flexibility for dynamic applications. Operating temperature range is wide from -30°C to 105°C to accommodate various environments. UV and oil resistant PVC sheath extends cable longevity in industrial settings.
Colour-coded tinned copper conductors simplify installation and maintenance. Flame retardant jacket improves safety in fire-prone industrial complexes. Complies with CE, CSA, and UL standards for assured quality and safety.
Nominal diameter of 6.73 mm allows use in tight spaces and small conduits. Designed for high-demand applications including industrial automation, aerospace, and medical device manufacturing.
Choose Alpha Wire Pro-Tekt Series B955044 GE321 cable for reliable electrical and data transmission in commercial and industrial power equipment applications. Browse more Data Cables and cables & wires suitable for electrical and automation needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates safely at voltages up to 300 V.
The cable functions within a temperature range of -30°C to 105°C.
This cable features 4 cores.
It is made with stranded tin copper wire conductors.
The nominal diameter is 6.73 mm, with a jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.016 inch (0.41 mm).
It meets CE, CSA Certified, and UL standards, ensuring reliable industrial use.
The jacket is made from durable polyvinyl chloride (PVC), which is UV and oil resistant.
The cores are color-coded as black, red, white, and green for easy identification and installation.
The UV resistant PVC sheath makes it suitable for outdoor use in industrial settings.
It is suitable for power equipment applications in industries such as automation, aerospace, medical devices, and commercial electronics.
The conductors are constructed with 7 strands per core, each strand measuring 0.32 mm.
Yes, the cable features a flame retardant jacket for added safety in fire-prone environments.
