ABB PSE 600V AC, 55 kW, 3 Phase Soft Starter, IP00, IP20, Screw Mount IP00

Free Delivery in India | Lowest Global Shipping Charges

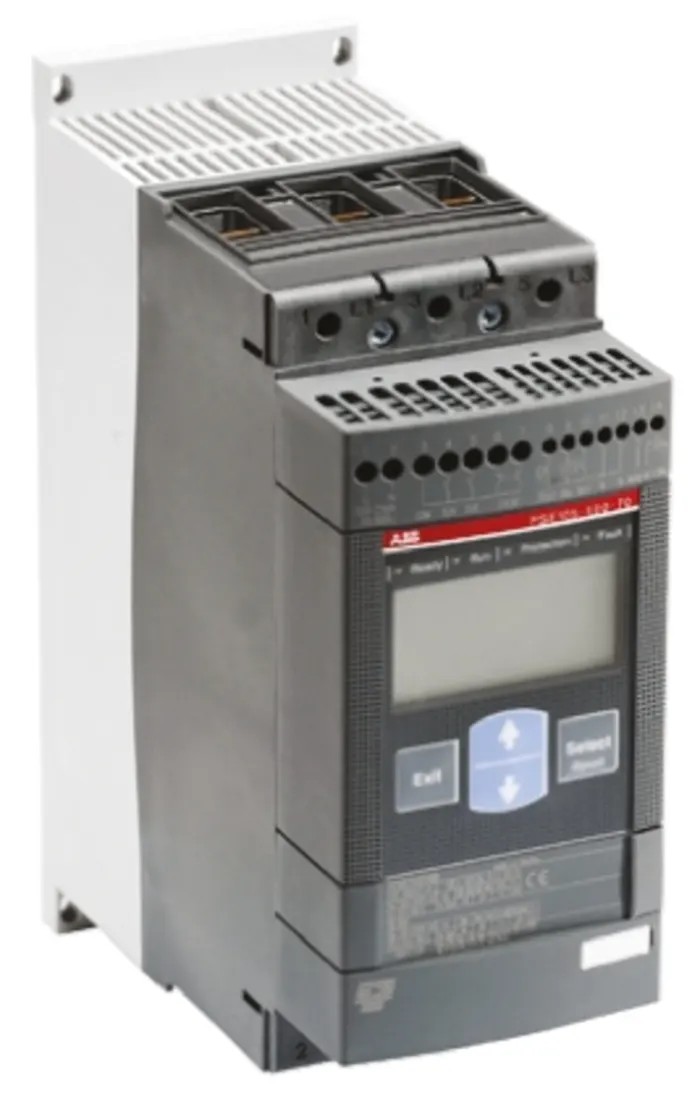

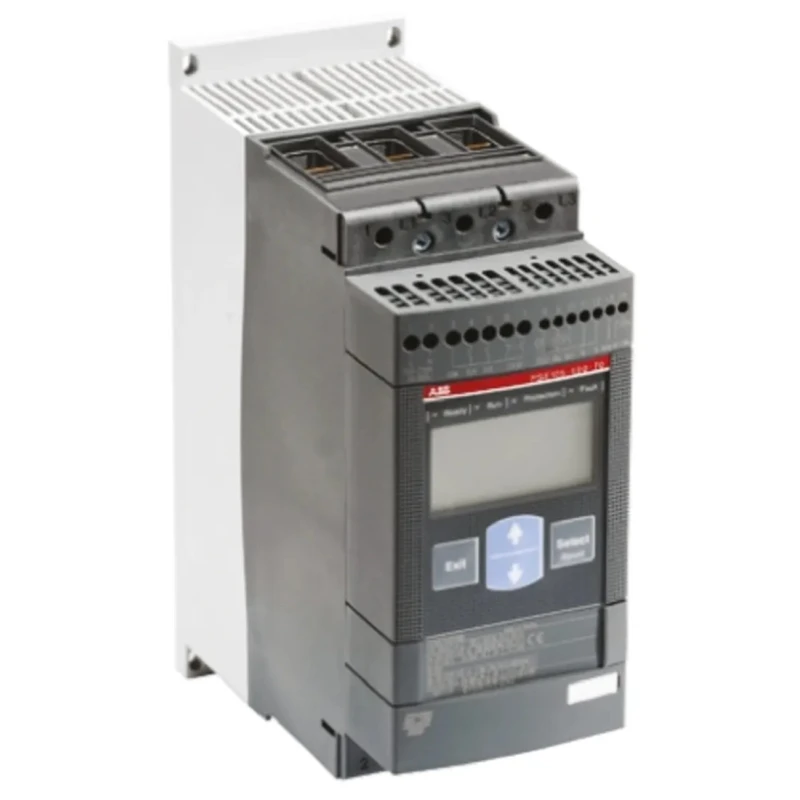

ABB PSE 600V AC, 55 kW, 3 Phase Soft Starter, IP00, IP20, Screw Mount IP00



Category Soft Starter Brand ABB Condition New

Specifications

Country of Origin	Sweden
Brand	ABB
Model	IP00
IP Rating	IP00, IP20
Mount Type	Screw
Overall Length	245mm
Series	PSE
Overall Width	90mm
Power Rating	55kW
Maximum Operating Temperature	60°C
Interfaces	language neutral display and four button keypad
Number of Phases	3
Maximum Supply Voltage	600V ac
Overall Depth	185.5mm

Key Features

Compact design with torque control for sensitive pump applications.
Supports wide voltage range of 208 to 600 Vac for versatile use.
Equipped with a user-friendly language neutral display and keypad.
Integrated bypass to save energy and reduce installation time.
Motor overload and underload protection for safe operation.
Capability to start jammed pumps and conveyor belts with kick start feature.
Robust operation in ambient temperatures from -25 to +60 °C.
Complies with various international standards including EN 60947 and UL 508.

Product Description

ABB 1SFA897109R7000 PSE Soft Starter is designed for industrial motor starting applications requiring smooth and controlled start-up with torque control technology. It operates on a 600V AC power supply and delivers 55 kW power with 3 phase support. The soft starter features a screw mount type and dual IP ratings of IP00 and IP20 to suit different installation environments.

This compact starter is ideal for pumping systems, effectively minimizing water hammer effects. Its advanced torque control and current limit adjustment between 1.5 to 7 times the rated current provide precision control. The user interface includes an illuminated language-neutral display and a four-button keypad for easy configuration and monitoring.

Built-in bypass functionality enhances energy efficiency and cuts installation time. The soft starter also includes motor overload protections with selectable classes (10A, 10, 20, 30), motor underload detection to protect pumps running dry, and locked rotor detection that safeguards against jammed pumps.

Additional features include a kick start function to assist starting jammed equipment and an algorithm that eliminates DC components for optimal starting performance. Coated circuit boards ensure reliable operation in harsh environments. The unit supports a wide control supply voltage range from 100 to 250 V, 50/60 Hz.

Standards compliance includes EN 60947-4-2, EAC, ANCE, UL 508, KC/EN 60947-1, CE, CSA, cULus, C-Tick, and CCC certifications. Rated for maximum operating temperature of 60 °C, it offers durability and reliability in challenging conditions. The PSE series is manufactured in Sweden, reflecting high-quality engineering.

Compact size with overall dimensions: length 245 mm, width 90 mm, depth 185.5 mm. Wide ambient temperature range of -25 to +60 °C. Interfaces include a language neutral illuminated display and four button keypad for easy operation.

Ideal for industrial automation, pumping, HVAC, manufacturing, and compressor systems. Provides effective motor and pump protection with advanced control features. For dependable motor start control and energy efficiency in industrial settings, explore ABB’s PSE Soft Starter series on EnvMart.
