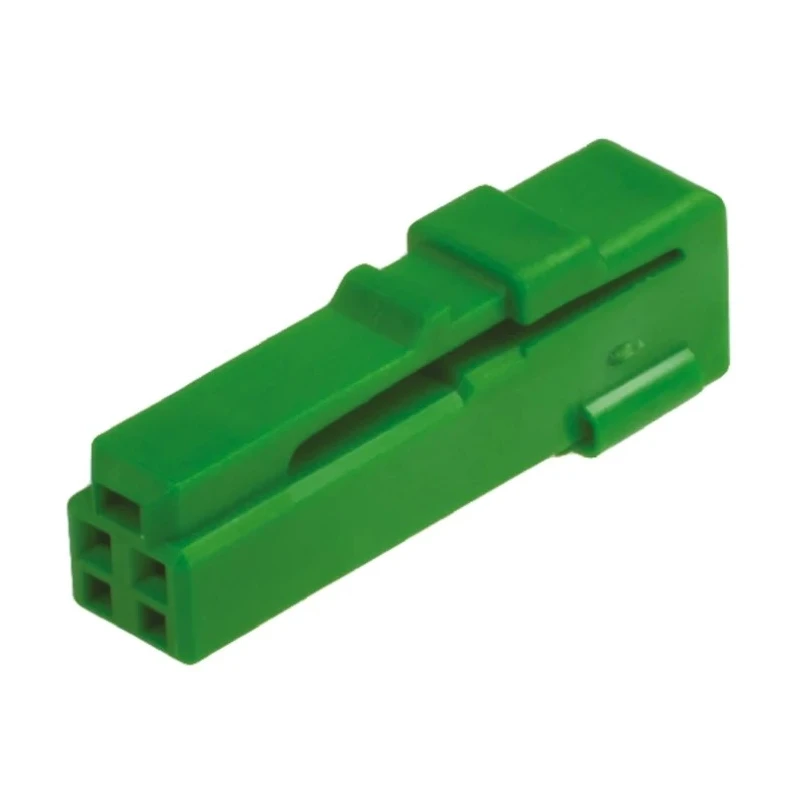

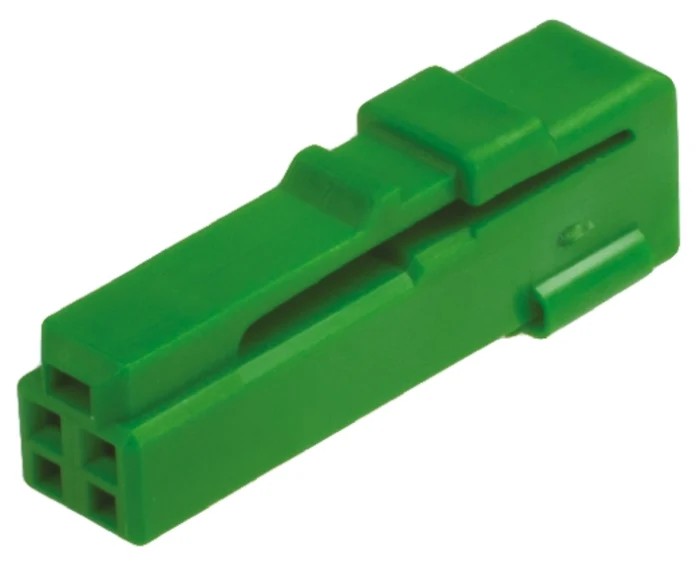

JAE In-line Connector Cable Crimp Female 3A Polybutylene Terephthalate Housing IL-AG9-2S-S3C1

Free Delivery in India | Lowest Global Shipping Charges

JAE In-line Connector Cable Crimp Female 3A Polybutylene Terephthalate Housing IL-AG9-2S-S3C1



Category Compact Power Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Current	3A
Model	IL-AG9-2S-S3C1
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	IL-AG9
Termination Type	Crimp
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Contact Gender	Female
Connector Gender	Female

Key Features

The connector features a polybutylene terephthalate housing ensuring durability.
Designed for cable mounting with a crimp termination type.
Rated for operating temperatures from -40°C to 125°C.
Features a female contact and connector gender for wire-to-wire connections.
Incorporates a hinge type double hooking mechanism to prevent incomplete terminal insertion and removal.
Suitable for use in automotive and compact power connector applications.
The design prevents twisted mating, mis-mating, and reverse insertion.
The mechanical lock method provides vibration and pull resistance.

Product Description

JAE IL-AG9-2S-S3C1 is an in-line female connector designed for 3A current applications. It features a durable polybutylene terephthalate housing with cable mount type and crimp termination, making it suitable for reliable wire-to-wire connections.

Engineered for operating temperatures ranging from -40°C to 125°C, this connector is ideal for automotive, electronic components, and power connector sectors. The compact IL-AG9 series supports a small number of contacts on a 2.5 mm pitch with mechanical features to prevent mis-mating and enhance secure attachment.

The connector employs a hinge type double hooking mechanism to ensure complete terminal engagement, and a nylon clip can be used for additional attachment security. Its design ensures vibration resistance and durability, addressing the challenging environments found in automotive and industrial applications.

The IL-AG9 series is a trusted solution in various industrial and automotive wiring harnesses, power distribution systems, and electronic assemblies where secure, compact, and reliable in-line connections are required.

The connector housing material is polybutylene terephthalate for robust performance. Its current rating is 3A with female conductor configuration. Operating temperature ranges from -40°C minimum to 125°C maximum. Mount type is cable with crimp termination ensuring strong electrical and mechanical connections.

No specific certifications or standards approvals are cited for this model.

This product is ideal for industrial electronics, automotive wiring, and power connector applications needing dependable inline cable connection solutions. Explore more power connectors and compact connector solutions at EnvMart.

Explore more products in our Compact Power Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 3A, making it suitable for low power applications.

The housing of the connector is made from polybutylene terephthalate, which ensures durability.

It operates within a temperature range of -40°C to 125°C, allowing for use in various environments.

This connector features a crimp termination type, which provides strong electrical connections.

It features a female contact and connector gender, designed for wire-to-wire connections.

It incorporates a hinge type double hooking mechanism to ensure complete terminal engagement and prevent mis-mating.

This connector is suitable for automotive, electronic components, and power connector applications.

The mount type for this model is cable, allowing for versatile installation options.

It belongs to the IL-AG9 series, which is designed for compact power connections.

The country of origin for this connector is India.

No specific certifications or standards approvals are cited for this model.

The design includes vibration resistance and a mechanical lock method to provide pull resistance, enhancing its durability in challenging environments.
