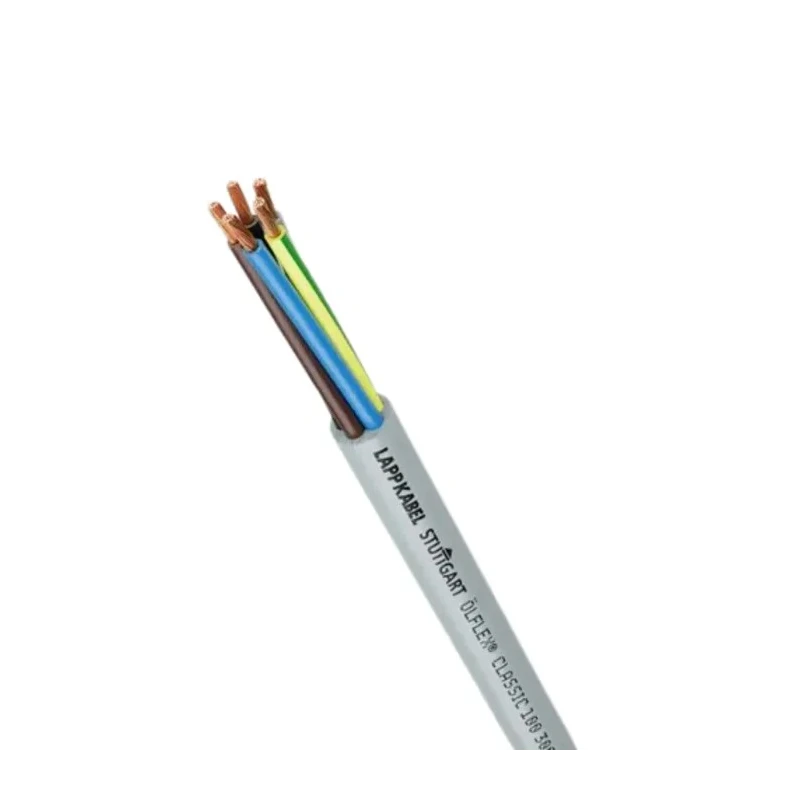

Lapp ÖLFLEX CLASSIC 100 Control Cable 12 Cores 18 AWG Unscreened 50m Silver Grey PVC Sheath 0010050
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lapp |
| Model | 0010050 |
| Cable Length | 50m |
| Series | ÖLFLEX CLASSIC 100 |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 12 |
| Conductor Material | Bare Copper |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | acc. to IEC 60811 resp. EN 60811, EN 50395, EN 50396 |
| Jacket Colour | Silver Grey |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 32 |
| Core Strands | 32 x 0.2mm |
| Size of Strands | 0.2mm |
Key Features
- The cable features 12 cores with 18 AWG stranded bare copper conductors for excellent conductivity.
- It has a durable silver grey polyvinyl chloride jacket that provides chemical and oil resistance.
- The cable is rated for a maximum operating temperature of 80°C and a test voltage of 4kV.
- Its compact diameter and flexible stranded conductor layers enable space-efficient and flexible installation.
- The product is designed for fixed installations with occasional movement in industrial machinery and air conditioning systems.
- It complies with IEC 60811, EN 60811, EN 50395, and EN 50396 flame retardant standards.
- The minimum bend radius varies between 15 times the diameter for flexing and 4 times for fixed installation.
Product Description
Lapp 0010050 ÖLFLEX CLASSIC 100 Series Control Cable is a high-performance industrial cable designed for control applications. This unscreened cable contains 12 cores of 18 AWG stranded bare copper conductors, each with 32 strands of 0.2 mm diameter, providing both flexibility and excellent electrical conductivity. It measures 50 meters in length and is sheathed in a flame retardant silver grey polyvinyl chloride jacket, ensuring mechanical protection and chemical resistance.
The cable supports a maximum operating temperature of 80°C and a test voltage rating of 4kV, capable of handling control voltages up to 300/500 V and current up to 15A. Its compact diameter of approximately 10.5 mm accommodates space-constrained installations, particularly in plant engineering, construction, industrial machinery, and air conditioning systems. The short twisted conductor layers increase flexibility and ease of handling.
This control cable is optimized for fixed installations where occasional movement occurs and withstands medium mechanical loads. It is also resistant to oils and chemicals, making it suitable for demanding industrial environments. The cable meets international standards IEC 60811, EN 60811, EN 50395, and EN 50396, ensuring compliance with flame retardant and safety requirements.
12 cores of 18 AWG (1 mm²) stranded bare copper conductors for high conductivity. Silver grey PVC jacket provides chemical and oil resistance. Maximum operating temperature: 80°C with flame retardant properties. Test voltage 4kV with 300/500 V voltage rating and 15A current rating.
Flexible and space-saving design with 10.5 mm outer diameter. Meets IEC and EN standards for flame retardancy and safety. Suitable for plant engineering, industrial machinery, HVAC, and fixed installations.
Choose Lapp ÖLFLEX CLASSIC 100 Control Cable to ensure reliable, high-quality power transmission and control in challenging industrial environments. Discover more Control Cables and related products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 80°C.
This model features 12 cores.
The conductors are made of bare copper.
The cable measures 50 meters in length.
The outer diameter of this cable is approximately 10.5 mm.
It has a silver grey polyvinyl chloride (PVC) jacket that provides chemical and oil resistance.
This cable is unscreened.
It is rated for control voltages up to 300/500 V.
It complies with IEC 60811, EN 60811, EN 50395, and EN 50396 flame retardant standards.
The cable has a current rating of 15A.
The minimum bend radius is 15 times the diameter for flexing and 4 times for fixed installation.
It is designed for fixed installations with occasional movement in industrial machinery and air conditioning systems.
