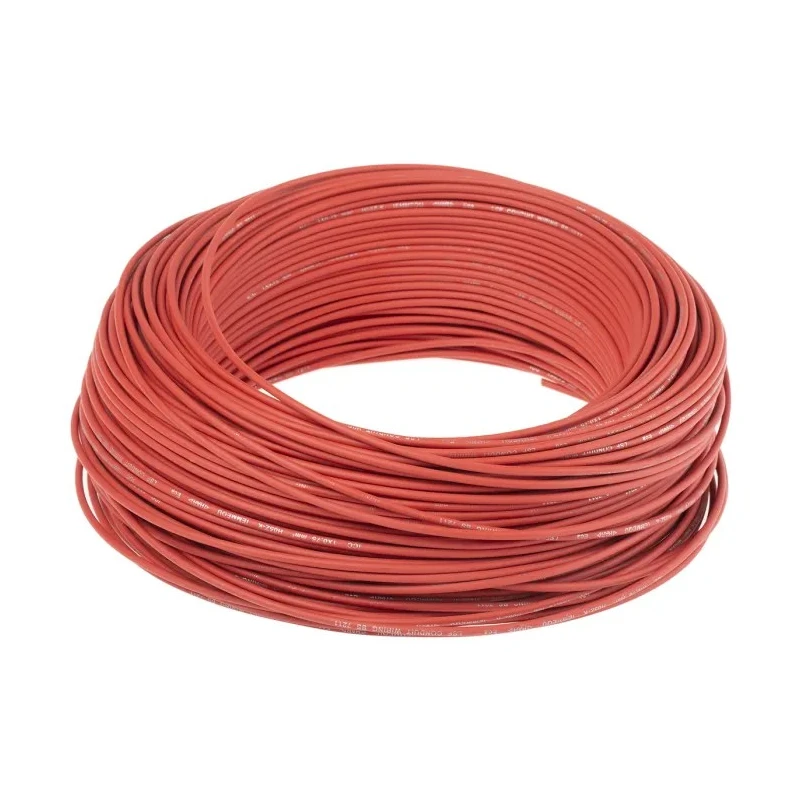

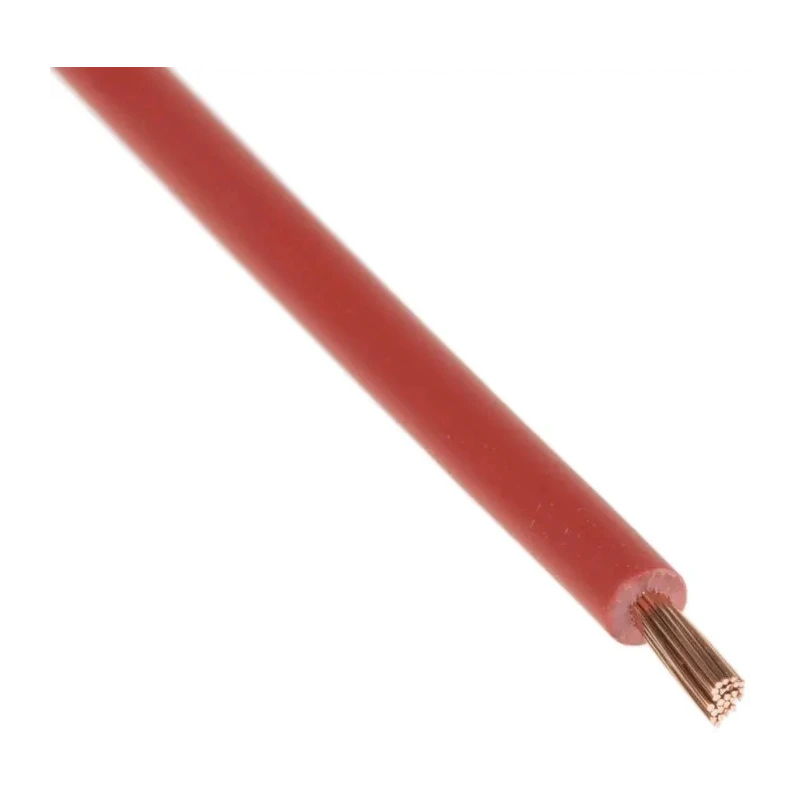

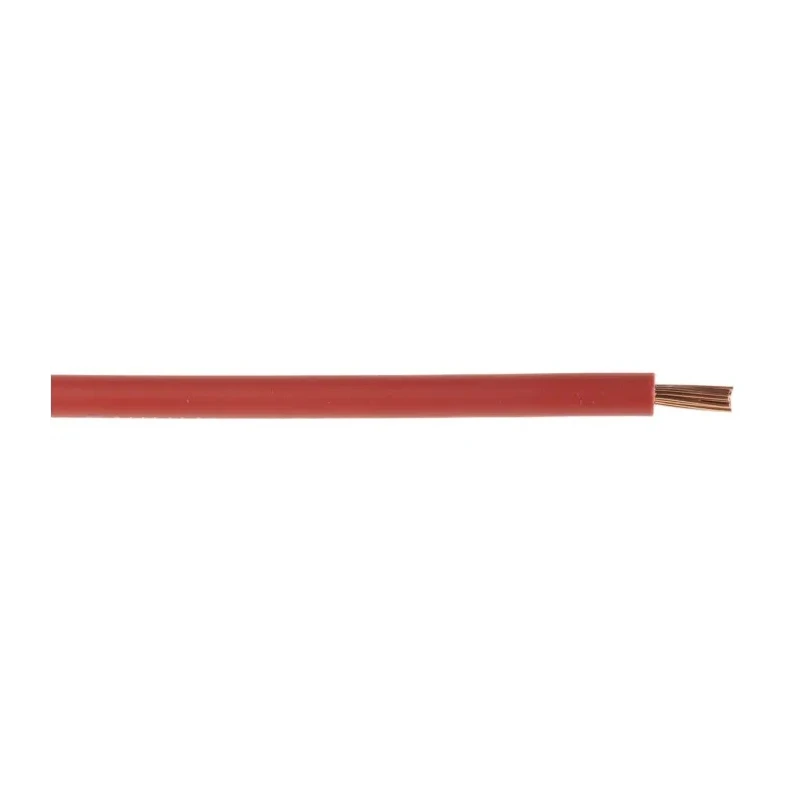

Lapp H05Z-K Series Red 0.75 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Insulation Hook Up Wire, 100 m, 300/500V 4725042

Lapp 4725042 Hook Up Wire, part of the H05Z-K series, is a low smoke zero halogen (LSZH) insulated single-core cable designed for internal wiring applications with high safety standards. Rated for 300/500 volts and a maximum operating temperature of 90°C, it is suitable for varied industrial environments where low toxicity smoke emission is critical.

The wire features a robust bare copper conductor with a cross-sectional area of 0.75 mm² and an outside diameter of 2.8 mm with a vibrant red jacket for clear identification. The cross linked LSZH insulation is flame retardant according to IEC 60332-1-2 standards, ensuring reliable fire behavior performance.

Ideal for installation in dry rooms, conduits, sealed trunking, and control cabinets, this wire is well suited for industrial electrical wiring, switchgear, and distribution boxes. Its application extends to underground railways, ships, power plants, and nuclear facilities where fire safety and low smoke emission are paramount.

Lapp's H05Z-K series wire complies with harmonized standards EN 50525-3-41 and holds EAC and CE approvals. It features halogen-free core construction to reduce environmental impact in the event of fire.

The product's low smoke density (IEC 61034) and halogen-free (IEC 60754-1) certification guarantee greater personnel safety and reduced corrosion of sensitive equipment.

Accessories such as Lapp's SKINTOP CLICK cable glands support secure termination for this wire. This cable is a trusted solution for reliable and safe power distribution in demanding industrial installations.

The wire features a red jacket with 0.75 mm² cross-sectional area for precise electrical applications. It is low smoke zero halogen (LSZH) rated, reducing toxic gas emission during fire. The conductor material is bare copper with flame retardant insulation according to IEC 60332.

Suitable for use in control cabinets, switchgear, and distribution boxes in dry environments. Complies with harmonised standards EN 50525-3-41 and certified for electrical safety. Operating temperature ranges from -40°C to 90°C for versatile industrial use.

100 meter roll length offers sufficient cable for medium-scale wiring projects. Explore more high-quality wires and cables by Lapp at EnvMart for your industrial and electrical application needs.
