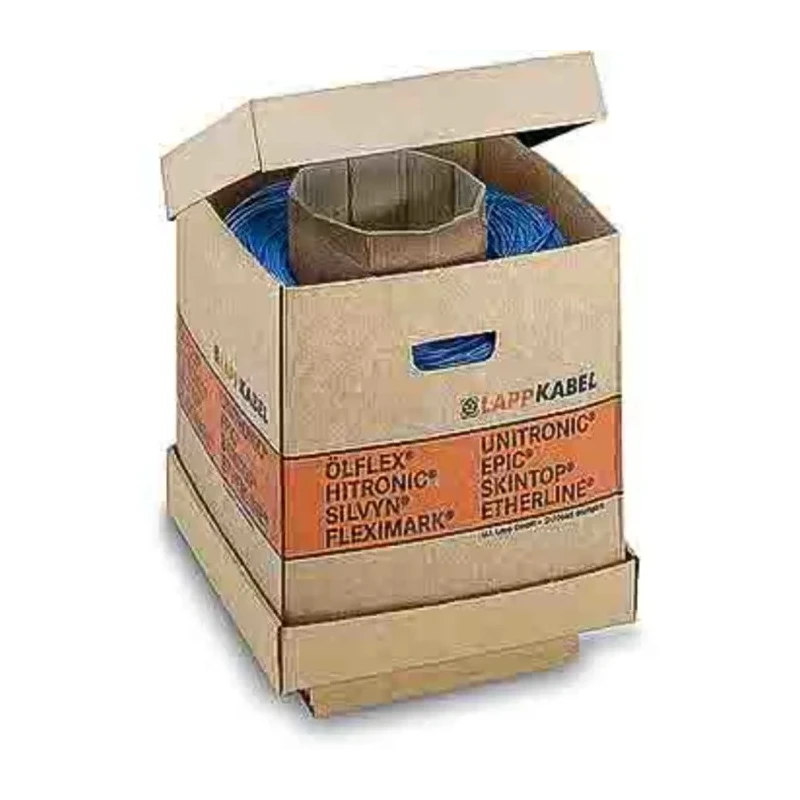

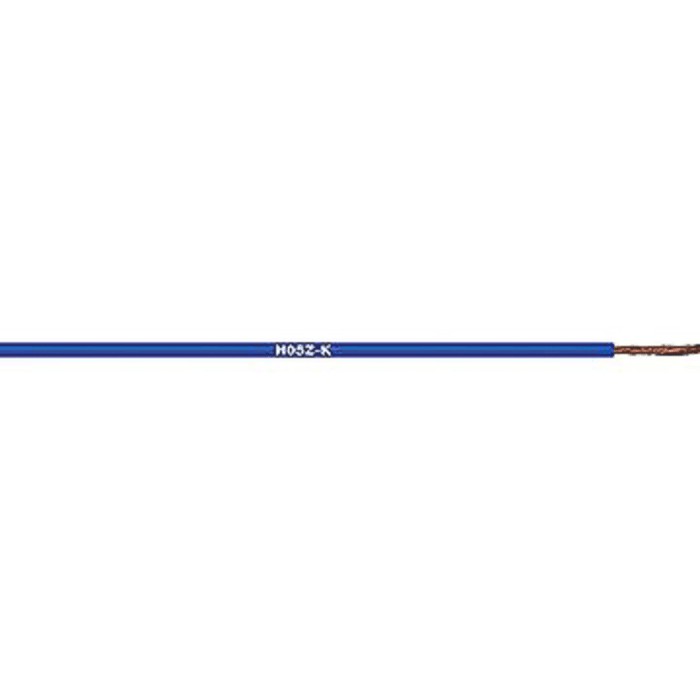

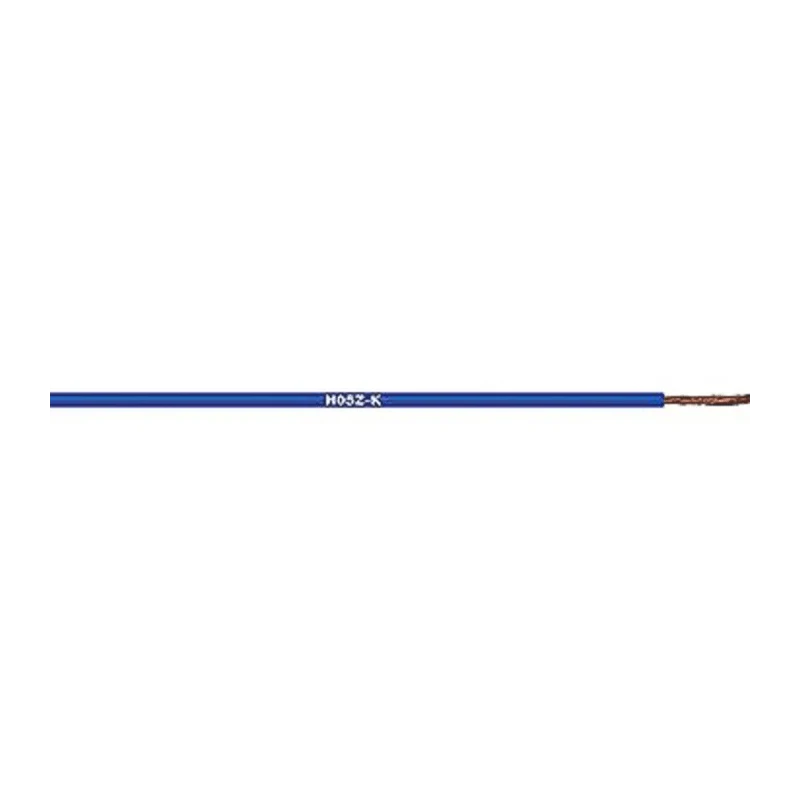

Lapp H05Z-K Series Dark Blue 0.5 mm² Low Smoke Zero Halogen Cross Linked Insulated Hook Up Wire, 100 m, 300/500 V 4725141

Lapp 4725141 hook up wire is a single core, 0.5 mm² cross sectional area electrical cable designed for reliable internal wiring applications. The dark blue cable features a low smoke zero halogen (LSZH) cross linked insulation jacket, making it ideal for environments where minimizing toxic fumes and corrosive gases during fire incidents is critical.

The cable is rated for 300/500 V voltage applications, with a maximum operating temperature of 90°C and minimum temperature tolerance down to -40°C. The conductor is made from bare copper wires ensuring high conductivity and flexibility.

This Hook Up Wire is flame retardant according to IEC 60332-1-2 and adheres to harmonized standards including EAC, CE, and EN 50525-3-41. It is best suited for dry room installations such as control cabinets, switchgear cabinets, and distribution boxes, and can be installed in tubes, conduits, or sealed trunking.

The LSZH jacket reduces smoke density in compliance with IEC 61034 and is halogen free in accordance to IEC 60754-1. This cable is optimal for use in underground railways, ships, power plants, and nuclear facilities where safety and compliance are paramount.

The cable has dark blue LSZH cross linked insulation. Rated for voltage of 300 and 500 volts. Maximum operating temperature is 90°C and minimum is -40°C. Flame retardant according to IEC 60332-1-2 standards. Suitable for control cabinets, switchgear, and dry environment installations.

Certified with EAC, CE, and EN 50525-3-41. Length is 100 meters per reel.

For secure wiring termination, this wire is compatible with Lapp’s SKINTOP CLICK series cable glands, accommodating various wire diameters. This product is essential in industrial, electrical, automation, and construction environments requiring high-quality and safe wiring solutions.
