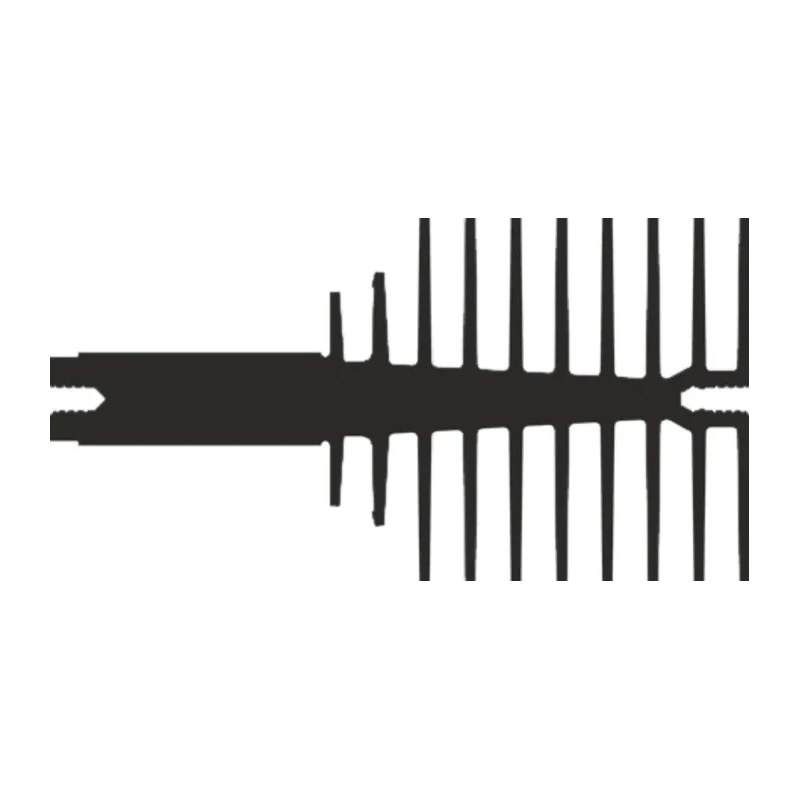

AAVID THERMALLOY Heatsink for Power Semiconductors Black Anodised Clip Mounting 1.55°C/W 75 mm x 150 mm x 40 mm 0S517/150/B

AAVID THERMALLOY 0S517/150/B heatsink is engineered for efficient thermal management of power semiconductors in a variety of electrical and electronic applications. Its thermal resistance of 1.55°C/W ensures effective heat dissipation, enhancing the reliability and lifespan of semiconductor devices.

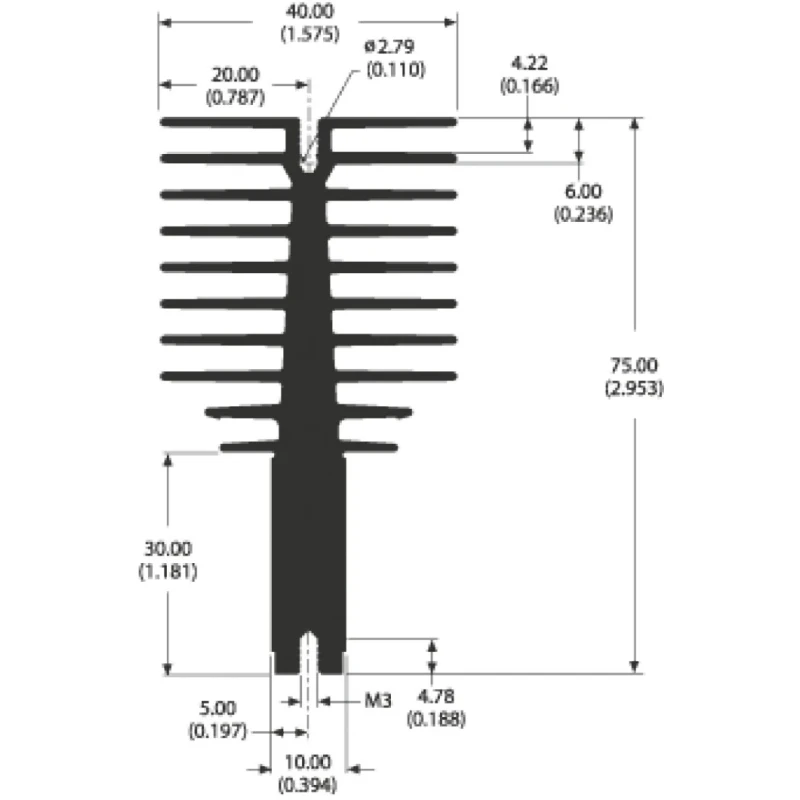

Measuring 75 mm in height, 150 mm in length, and 40 mm in width, this heatsink features a robust construction from special spring steel with nickel plating. The black anodised finish offers both aesthetic appeal and protection against oxidation and corrosion, suitable for industrial environments.

The product incorporates the patented Max Clip System™ OS517 Profile clip mounting technology, allowing simplified, rapid, and dependable attachment of semiconductors to the heatsink. This system provides economic and manufacturing advantages by replacing traditional rivets and screws, thus speeding up assembly processes.

Compatibility with multiple semiconductor package types including TO-0247, D61, TO-218, TO-220, and TO-247J makes this heatsink versatile across various power electronic modules. The clip mounting design enhances mechanical reliability without compromising thermal interface quality.

Constructed from special spring steel with a nickel plating for strength and corrosion resistance. Black anodised surface finish enhances thermal performance and durability. Clip fastening technology allows easy and reliable mounting of semiconductors.

Optimized for power semiconductor cooling with a low thermal resistance of 1.55°C/W. Compatible with multiple popular semiconductor package types for flexibility. Meets U.S. Patent 5.991.151 standards ensuring innovative design compliance.

Industrial-grade heat dissipation for applications in automation, electrical systems, and power electronics.

This heatsink is ideal for use in industrial equipment, HVAC systems, power assemblies, and other commercial electronics requiring efficient heat management. Its robust material construction and innovative mounting system contribute to enhanced operational reliability.
