Ledil Strada-C2 Series 1-Way LED Lens Dome Shape 92 to 136° Viewing Angle Street Lighting Beam C11252_STRADA-C2

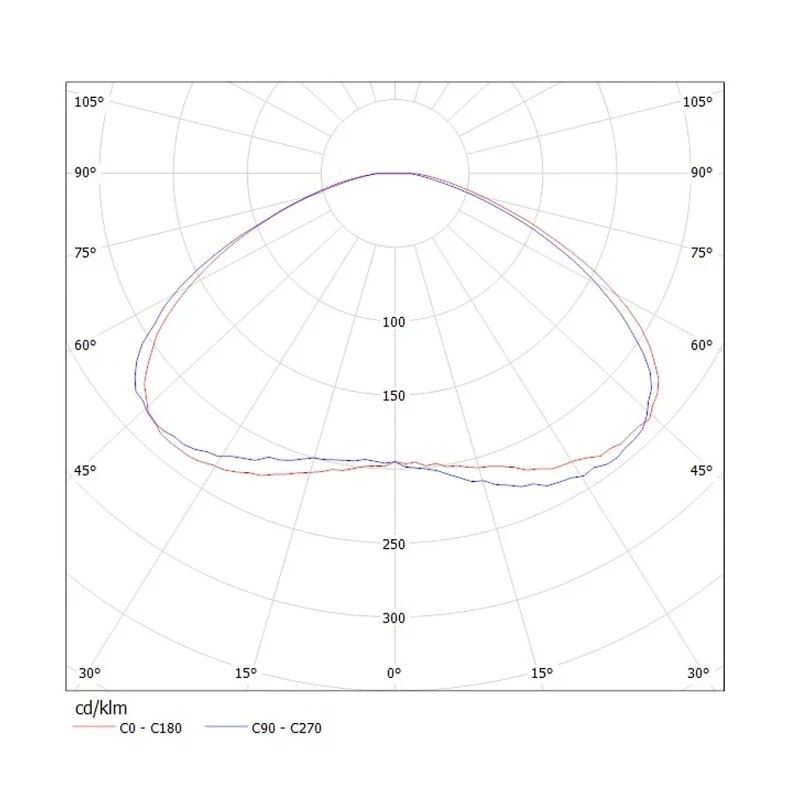

Ledil C11252_STRADA-C2 1-Way LED Lens Dome Shape from the Strada-C2 Series is engineered for street lighting applications, providing a controlled emission pattern with a viewing angle of 92 to 136 degrees. This lens, made of polymethyl methacrylate (PMMA), offers excellent optical clarity along with strong UV and temperature resistance, critical for outdoor lighting durability and performance.

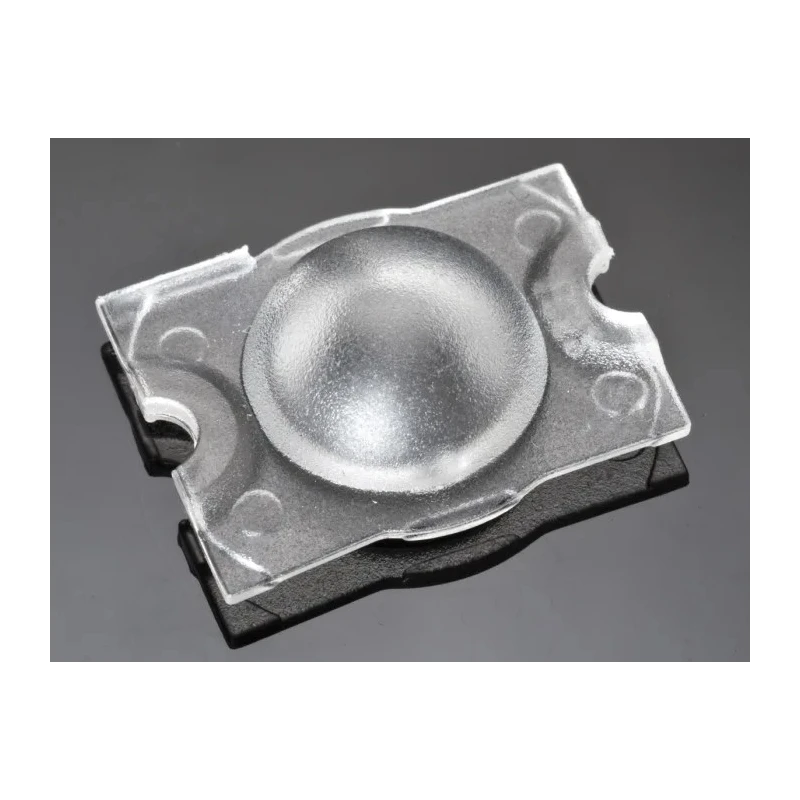

The dome-shaped lens accommodates a single LED and ensures uniform light distribution, making it suitable for installations on street lamps, roadways, and warehouse aisle lighting where elevated mounting is common. Installation is simplified using automotive-grade PU foam adhesive tape that secures the lens directly to the heat sink.

The standardized footprint of 19.6x15.5 mm allows interchangeability within the Strada-C2 series lenses, helping lighting designers adapt quickly without redesigning fixtures. It supports a wide variety of LEDs including popular models such as OSRAM OSLON SSL 150, Lumileds LUXEON Rebel, Cree XP-G, and Nichia NVSxx19A, among others. This compatibility ensures broad applicability across multiple lighting solutions.

Physical dimensions of the lens are precise, with a length of 19.6mm, width of 15.5mm, and height of 6.9mm, fitting compact lighting assemblies. No formal certifications or approvals are provided with this product, but it is designed to meet the demanding physical and environmental requirements typical of professional outdoor lighting installations.

The STRADA series from Ledil is recognized for its versatile lenses adapted to street lighting, offering uniform light distribution and ease of installation in commercial and industrial lighting sectors. Lighting professionals will appreciate the durability and consistent performance provided by the optical-grade PMMA material and the well-engineered mechanical design optimized for easy attachment.

The lens is made of optical grade polymethyl methacrylate providing high UV and temperature resistance. It features a dome shape optimized for uniform light output with a single LED per lens. Fixing is achieved via PU foam adhesive tape of automotive grade for easy installation.

Compatible with a variety of LEDs including OSRAM OSLON SSL 150 and Cree XP-G series. The lens dimensions are compact with length 19.6mm, width 15.5mm, and height 6.9mm. Designed for street and road lighting, suitable for mounting at elevated positions.

The STRADA-C2 series enables lens interchangeability without redesign due to a standardized footprint. Explore the LED Lenses & Reflectors category on EnvMart for compatible components and complementary lighting accessories.
