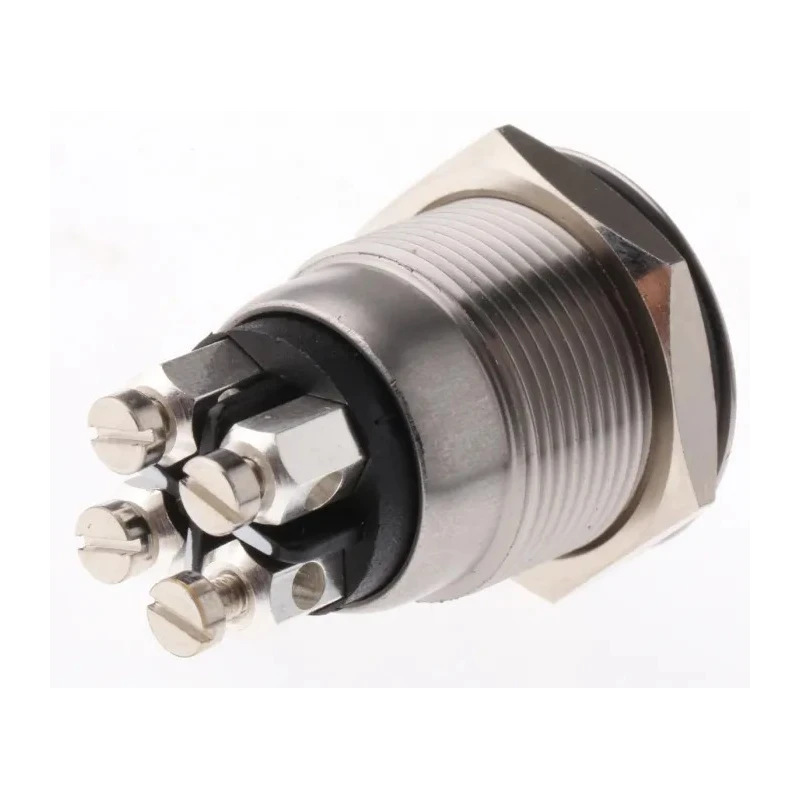

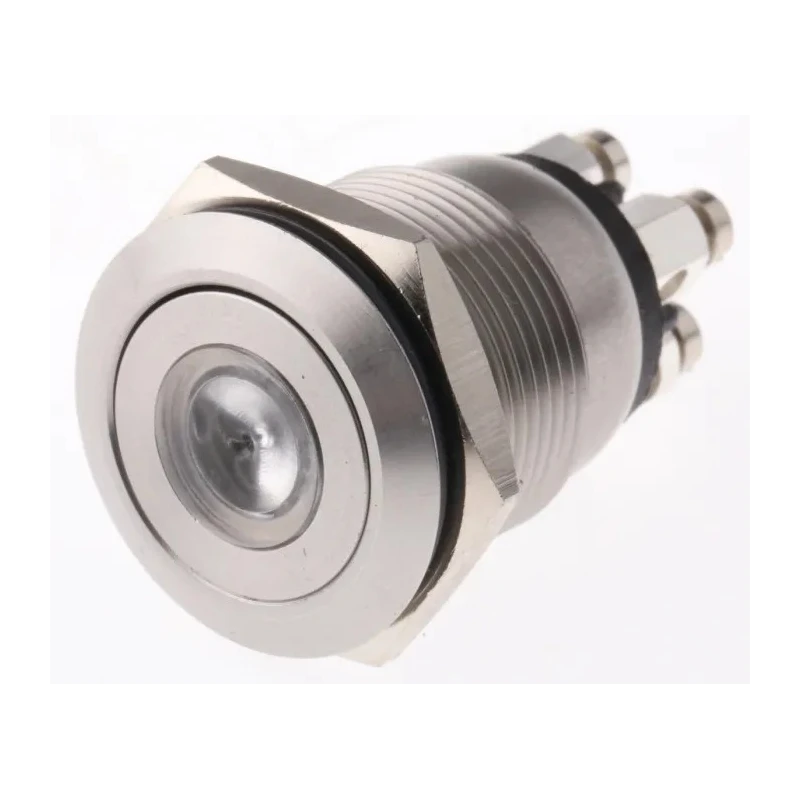

Bulgin Illuminated Push Button Switch, Momentary, Panel Mount, 19.2 mm Cutout, SPST, Red and Green LED, IP66, 24 V MPI001
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Bulgin |
| Model | MPI001 |
| IP Rating | IP66 |
| Mount Type | Panel |
| Series | MPI001 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
Key Features
- The switch has a robust and vandal-resistant stainless steel body suitable for industrial environments.
- It is illuminated with bright daylight LEDs offering dot or ring illumination modes.
- The switch provides an ingress protection rating of IP66, ensuring resistance to dust and water.
- Designed for 24 V DC contact voltage with a contact current rating of 50 mA.
- The actuator is silver colored and styled as a button for easy user operation.
- Push to make momentary switch operation gives reliable contact performance.
- Comes with screw terminal type for secure electrical connections.
- Operates reliably between -30°C to 70°C ambient temperature ranges.
Product Description
Bulgin MPI001 Illuminated Push Button Switch is a momentary action switch designed for panel mounting with a precise 19.2 mm cutout. This SPST switch features a stainless steel vandal-resistant body and button actuator finished in silver, ideal for harsh industrial and automation applications.
The switch illumination utilizes bright daylight red and green LEDs, which are configurable as dot or ring illumination to provide clear visual indication during operation. It offers IP66 ingress protection, ensuring safe use in dusty and wet environments commonly found in manufacturing, electrical panels, and control stations.
Operating at 24 V DC, the switch supports a contact current of 50 mA and employs screw terminals for reliable electrical connections. It functions efficiently within a wide temperature range from -30°C to 70°C, suitable for industries requiring durable and precise push button control devices.
With a minimum mechanical operation life of 750,000 cycles, MPI001 provides long-lasting performance. The switch’s illumination voltage suffix options allow customization for 6 V, 12 V, or 24 V LED operation, with the default variant requiring an appropriate series resistor to be installed externally per application needs.
This push button switch complies with RoHS standards, ensuring environmental safety and regulatory adherence in industrial and automation systems. Bulgin MPI001 is widely used across electrical control panels, automated machinery, and industrial safety equipment.
The switch body and actuator are crafted from stainless steel for enhanced vandal resistance. Ingress protection rating IP66 protects against dust and powerful water jets. Momentary SPST operation suits temporary control needs in industrial systems.
Red and green bright daylight LEDs provide clear visual feedback. Screw terminal connections ensure secure and stable wiring. Designed to handle 24 V DC contact voltage and 50 mA contact current. Operates reliably over a broad temperature range from -30°C to 70°C.
Meets RoHS standards for hazardous substance restrictions. Suitable for electrical, automation, manufacturing, and control panel applications. Explore a wide range of Push Button Switches and other industrial automation components available on EnvMart for reliable and efficient operational control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 24 V DC.
It has an ingress protection rating of IP66, ensuring resistance to dust and powerful water jets.
This switch operates reliably within a temperature range of -30°C to 70°C.
The MPI001 is a momentary action switch with SPST contact configuration.
The switch features bright daylight LEDs in red and green colors.
The maximum contact current rating is 50 mA.
It uses screw terminals for secure electrical connections.
The required panel cutout size for this model is 19.2 mm.
The switch features a robust stainless steel body and a silver-colored button actuator.
Yes, it complies with RoHS standards for hazardous substance restrictions.
This push button switch is suitable for electrical control panels, automated machinery, and industrial safety equipment.
The minimum mechanical operation life is rated at 750,000 cycles.
