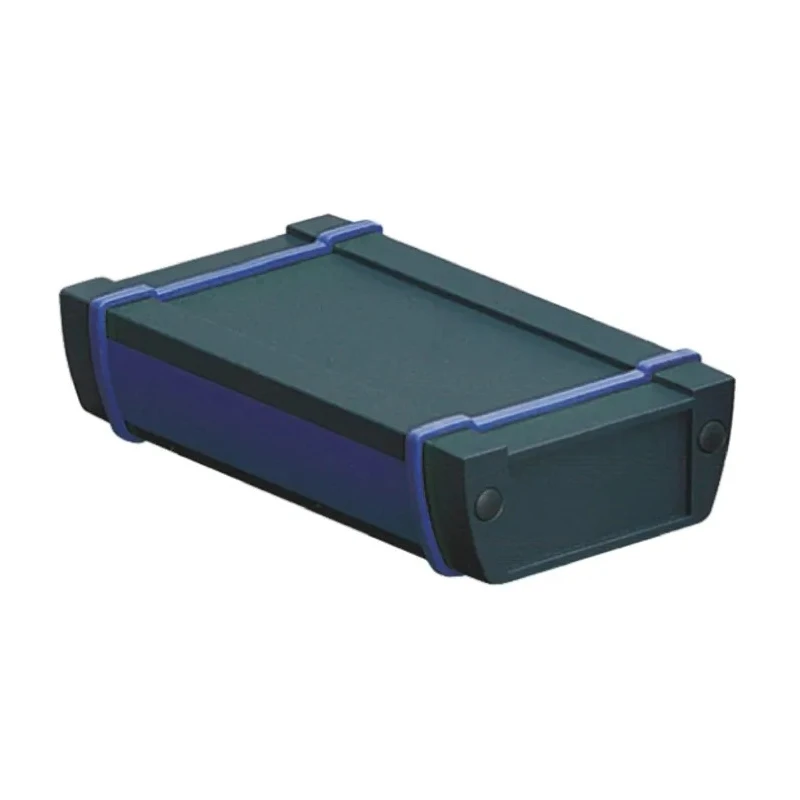

Bopla Alustyle Series Graphite Grey Grey Lid Aluminium Enclosure IP65 32.8 mm x 200 mm x 121 mm 94132200.MT2 ASPH 1230-0200

Bopla 94132200.MT2 ASPH 1230-0200 Aluminium Enclosure from the Alustyle Series provides an IP65 rated robust housing for sensitive electronics and instrumentation. Constructed with a durable aluminium extruded profile coupled with a zinc alloy die-cast lid, this enclosure is engineered for various industrial and commercial applications, including handheld, wall-mounted, desktop, and front-panel installations.

The split profile design aids in easier assembly and maintenance, secured via a snap-lock mechanism for reliable closure. Its graphite grey body and grey lid offer corrosion resistance while maintaining an aesthetic industrial appearance.

The enclosure measures 32.8 mm in height, 200 mm in length, and 121 mm in width, making it compact yet spacious enough for electronic components. The sealing gasket made of thermoplastic elastomer (TPE) supports a wide temperature range (-30 to +85°C), ensuring an effective environmental seal against dust and water ingress.

This IP65 rated enclosure is unshielded and carries no hazardous area certifications, suitable for general-purpose electrical and electronic protection in industrial, manufacturing, laboratory, and automation systems.

The aluminium extruded profile is composed of Al Mg Si0.5 alloy offering a strong yet lightweight frame, while the zinc alloy Z 410 die-cast lid provides additional protection and rigidity.

The enclosure is constructed from durable aluminium with a graphite grey finish for corrosion resistance. It features a grey lid made from zinc alloy Z 410, enhancing structural integrity. Dimensions are 32.8 mm in height, 200 mm in length, and 121 mm in width, ideal for compact electronics installation.

Designed for hand-held, wall, desktop, and front panel mounting applications. Sealing gasket comprised of thermoplastic elastomer (TPE) suitable for temperatures from -30 to +85°C. Split profile design with snap-lock connection enables easy assembly and secure closure.

The extruded profile is made from Al Mg Si0.5 alloy for strength and lightweight performance. Unshielded body is suitable for standard environments without hazardous area certification. Weight is approximately 701 grams, balancing durability and portability.

This enclosure is ideal for electrical, industrial, automation, and manufacturing applications where protection from dust and water ingress is critical. It also suits laboratory and commercial environments requiring a compact, robust electronic housing.

Explore the full range of Bopla electrical enclosures at EnvMart to find suitable solutions for your project requirements.
